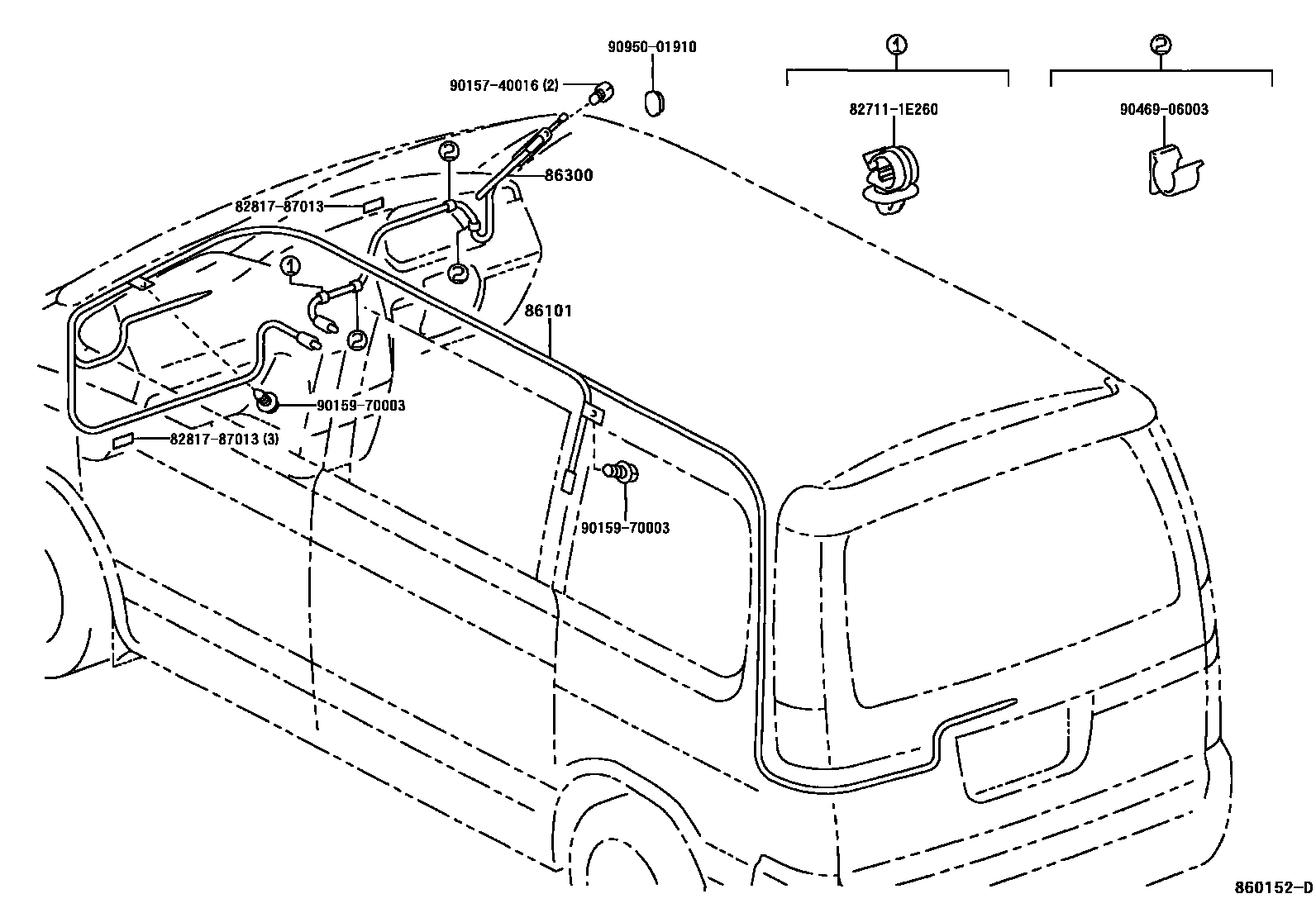

Toyota LITE/TOWNACE NOAH,V — ANTENNA
86101CORD SUB-ASSY, ANTENNA
86300ANTENNA ASSY, W/HOLDER
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
8281787013PROTECTOR, WIRING HARNESS, NO.1
main82817-87013
9015740016
main90157-40016
9015970003
main90159-70003
9046906003
main90469-06003
9095001910
main90950-01910
8 parts on this diagram · 5 diagrams in section
ANTENNA for Toyota LITE/TOWNACE NOAH,V
This section contains 15 genuine Toyota parts for the ANTENNA system of the Toyota LITE/TOWNACE NOAH,V. Key components include: ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, NAVIGATION, WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER).
