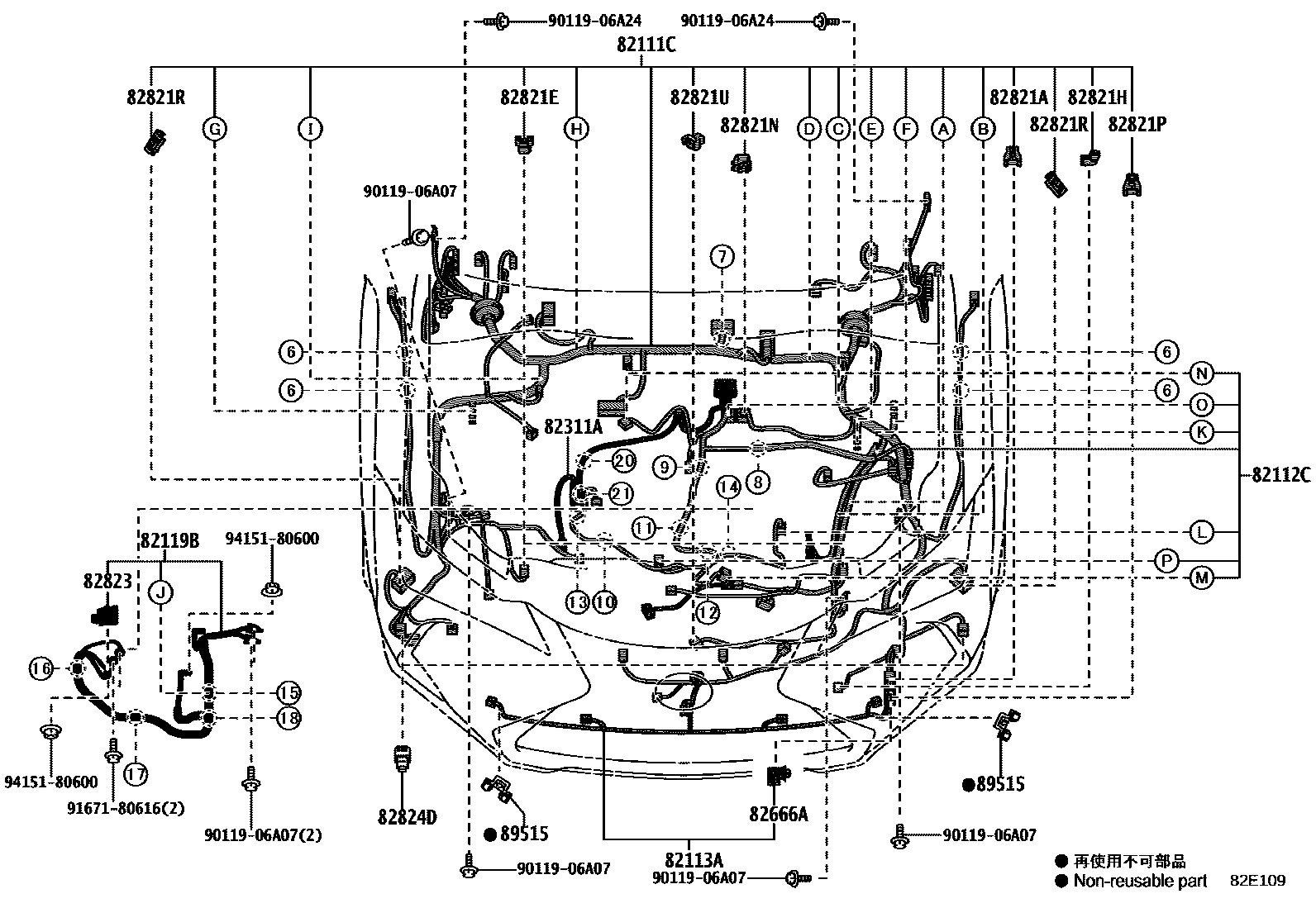

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-76R10iKMA10202102-202108

main82111-76V70iKMA10202108

82112CWIRE, FROMT COMPARTMENT, NO.2

main82112-76010iKMA10202102

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-76060iKMA10202102

82119BWIRE, FRONT COMPARTMENT, NO.5

main82119-76010iKMA10202102

82311AWIRE, AIR CONDITIONER

main821H2-76020iKMA10202102

82666AHOLDER, CONNECTOR NO.2

main82666-50C30iKMA10202102

82821ACOVER, CONNECTOR

main82821-30610iKMA10202102

82821ECOVER, CONNECTOR

main82821-30650iKMA10202102

82821HCOVER, CONNECTOR

main82821-30700iKMA10202102

82821NCOVER, CONNECTOR

main82821-47680iKMA10202102

82821PCOVER, CONNECTOR

main82821-48040iKMA10202102

82821RCOVER, CONNECTOR

main82821-50780iKMA10202102

82821UCOVER, CONNECTOR

main82821-78050iKMA10202102

82823CAP, TERMINAL, NO.1

main82823-47050iKMA10202102

82824DCONNECTOR, WIRING HARNESS

main82824-76140iKMA10202102

89515CLIP

main89348-50050iKMA10202102

9011906A07

main90119-06A07

9011906A24

main90119-06A24

9167180616

main91671-80616

9415180600

main94151-80600

20 parts on this diagram · 11 diagrams in section
