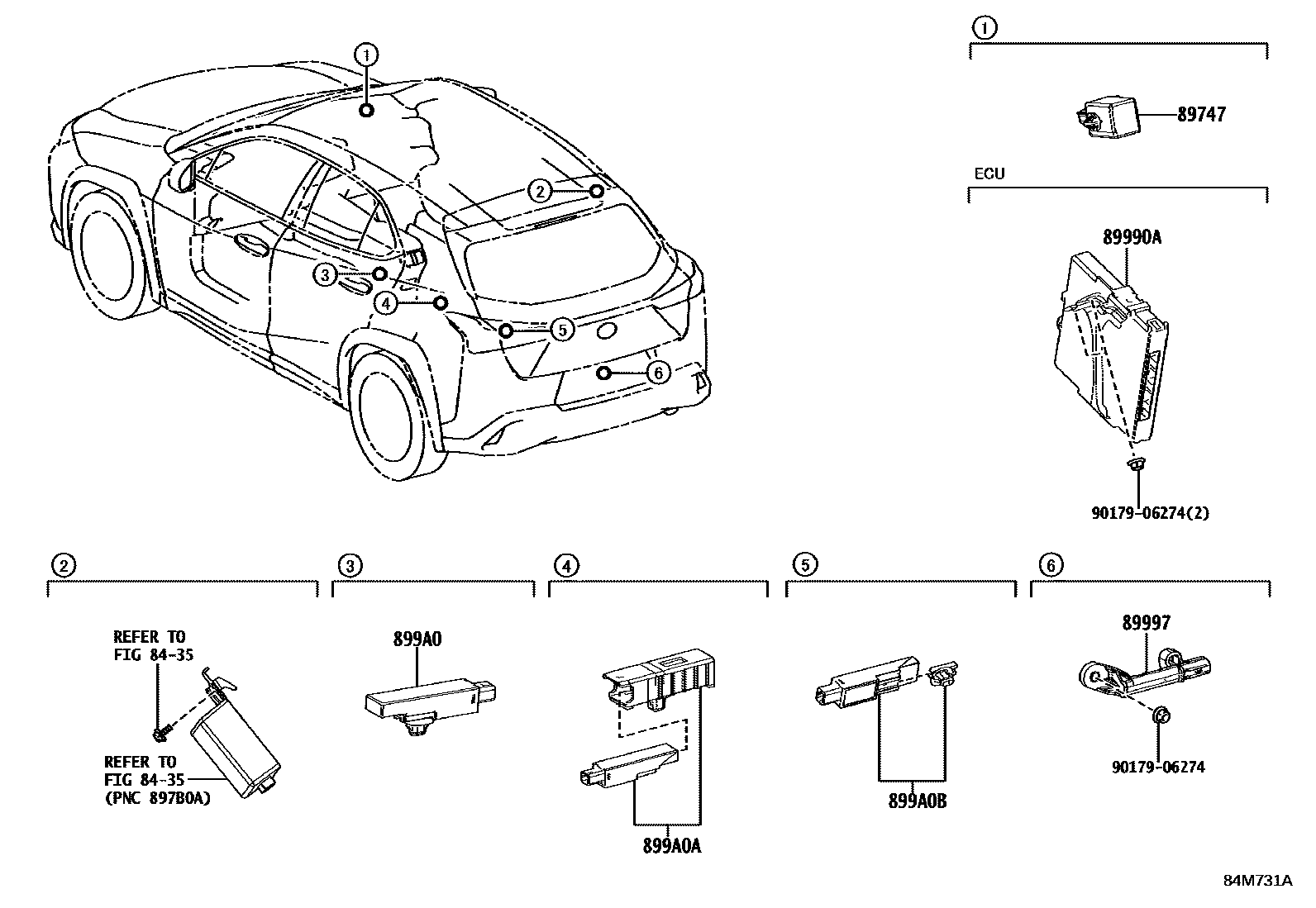

Toyota LEXUS UX300E — WIRELESS DOOR LOCK

8435

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iKMA10202102

89990ACOMPUTER ASSY, SMART KEY

main899H0-76200iKMA10202102-202107

sub899H0-76550

main899H0-76550iKMA10202108-202207

sub899H0-76551

main899H0-76551iKMA10202208

89997ANTENNA, ELECTRICAL KEY

main89997-30100iKMA10202102

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iKMA10202102

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-10010iKMA10202102

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iKMA10202102

9017906274

main90179-06274

8 parts on this diagram · 1 diagram in section
