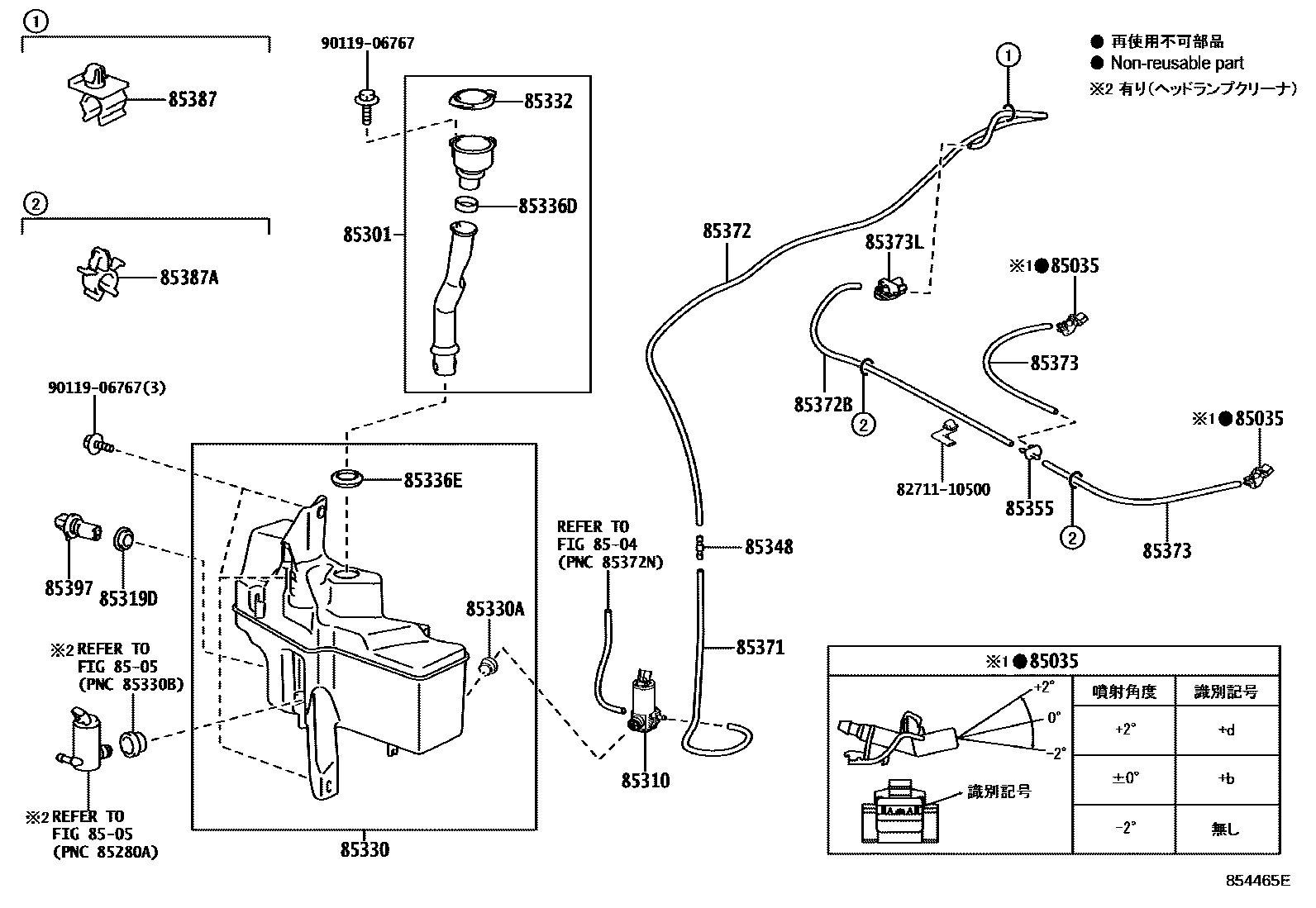

Toyota LEXUS UX300E — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

8504

8505

85301INLET SUB-ASSY, WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

85319DPACKING, FRONT WASHER

85330JAR ASSY, WINDSHIELD WASHER

85330ABUSH, WINDSHIELD WASHER JAR

85332CAP, WINDSHIELD WASHER JAR

85336DPACKING, WINDSHIELD WASHER JAR

85336EPACKING, WINDSHIELD WASHER INLET HOSE

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

85355VALVE, WINDSHIELD WASHER HOSE

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

85373LGROMMET, WASHER

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

85387ACLAMP, WASHER, NO.2

85397SWITCH ASSY,LEVEL WARNING

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9011906767

23 parts on this diagram · 1 diagram in section
