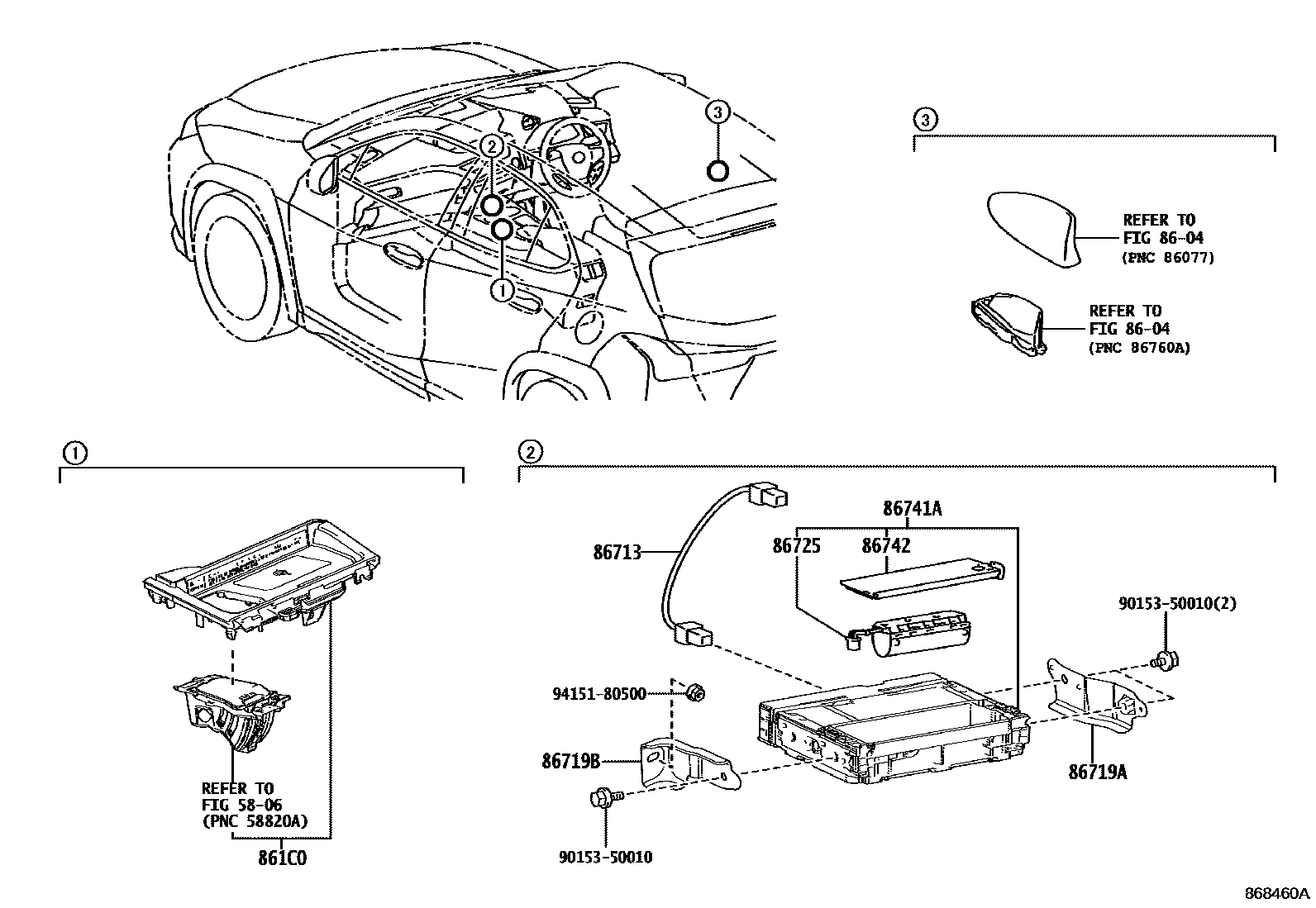

Toyota LEXUS UX300E — TELEPHONE & MAYDAY

5806

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-76010

main861C0-76020

86713WIRE, TELEPHONE COMPUTER

main86713-76060iKMA10202102

86719ABRACKET, TELEPHONE NO.1

main86719-76100iKMA10202102

86719BBRACKET, TELEPHONE NO.2

main86719-76110iKMA10202102

86725BATTERY, MOBILEPHONE

main86725-26010iKMA10202102

86741ATRANSCEIVER, TELEMATICS

main86741-42081iKMA10202102-202103

sub86741-48101

main86741-48101iKMA10202104-202106

sub86741-48102

main86741-48102iKMA10202107

86742COVER, TRANSCEIVER

main86742-26010iKMA10202102

9015350010

main90153-50010

9415180500

main94151-80500

11 parts on this diagram · 1 diagram in section
