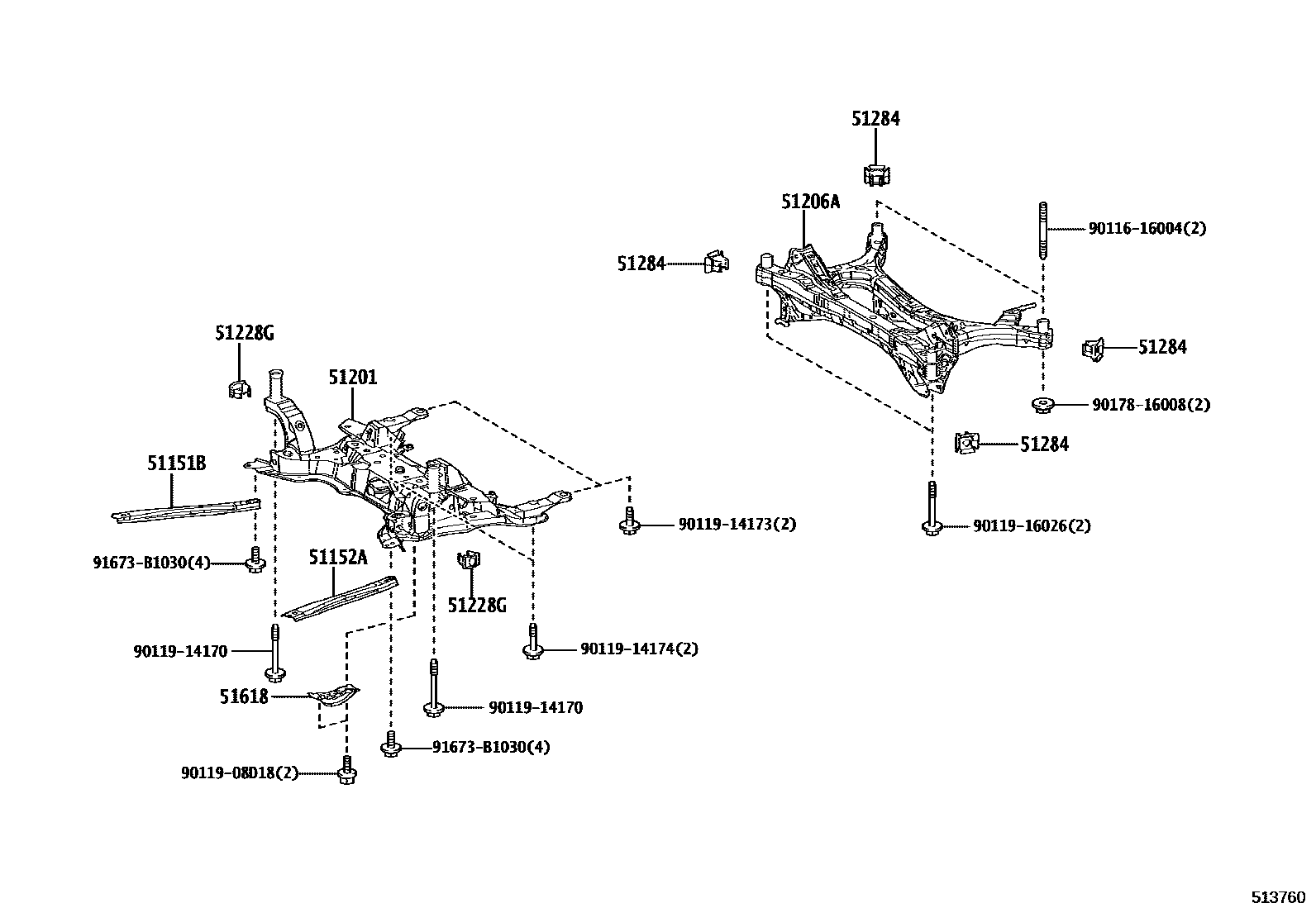

Toyota LEXUS UX300E — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1��������

51151BREINFORCEMENT, SIDE RAIL, NO.1 RH

main51151-10010iKMA10202102

51152AREINFORCEMENT, SIDE RAIL, NO.1 LH

main51151-10010iKMA10202102

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-76050iKMA10202102

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-76030iKMA10202102-202207

sub51206-76031

main51206-76031iKMA10202208

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iKMA10202102

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iKMA10202102-202208

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-76010iKMA10202102

9011616004

main90116-16004

9011908D18

main90119-08D18

9011914170

main90119-14170

9011914173

main90119-14173

9011914174

main90119-14174

9011916026

main90119-16026

9017816008

main90178-16008

91673B1030

main91673-B1030

15 parts on this diagram · 2 diagrams in section
