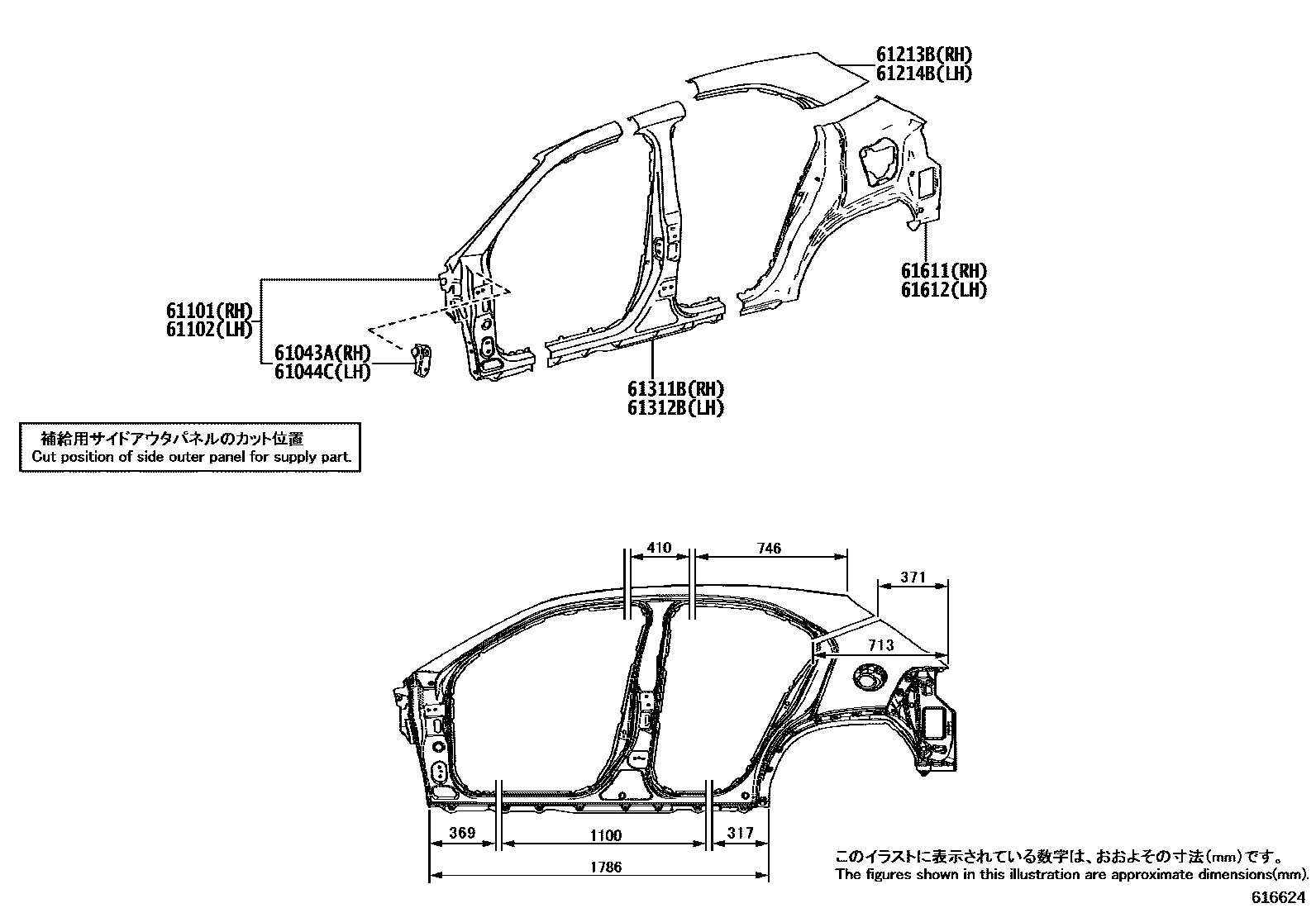

Toyota LEXUS UX300E — SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

main53838-76010iKMA10202102

61044CEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main53839-76010iKMA10202102

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-76030iKMA10202102

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-76030iKMA10202102

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61201-76030iKMA10202102

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61202-76040iKMA10202102

61311BPILLAR, CENTER BODY, OUTER RH

main61311-76020iKMA10202102

61312BPILLAR, CENTER BODY, OUTER LH

main61312-76020iKMA10202102

61611PANEL, QUARTER, RH

main61601-76050iKMA10202102

61612PANEL, QUARTER, LH

main61602-76050iKMA10202102

10 parts on this diagram · 3 diagrams in section
