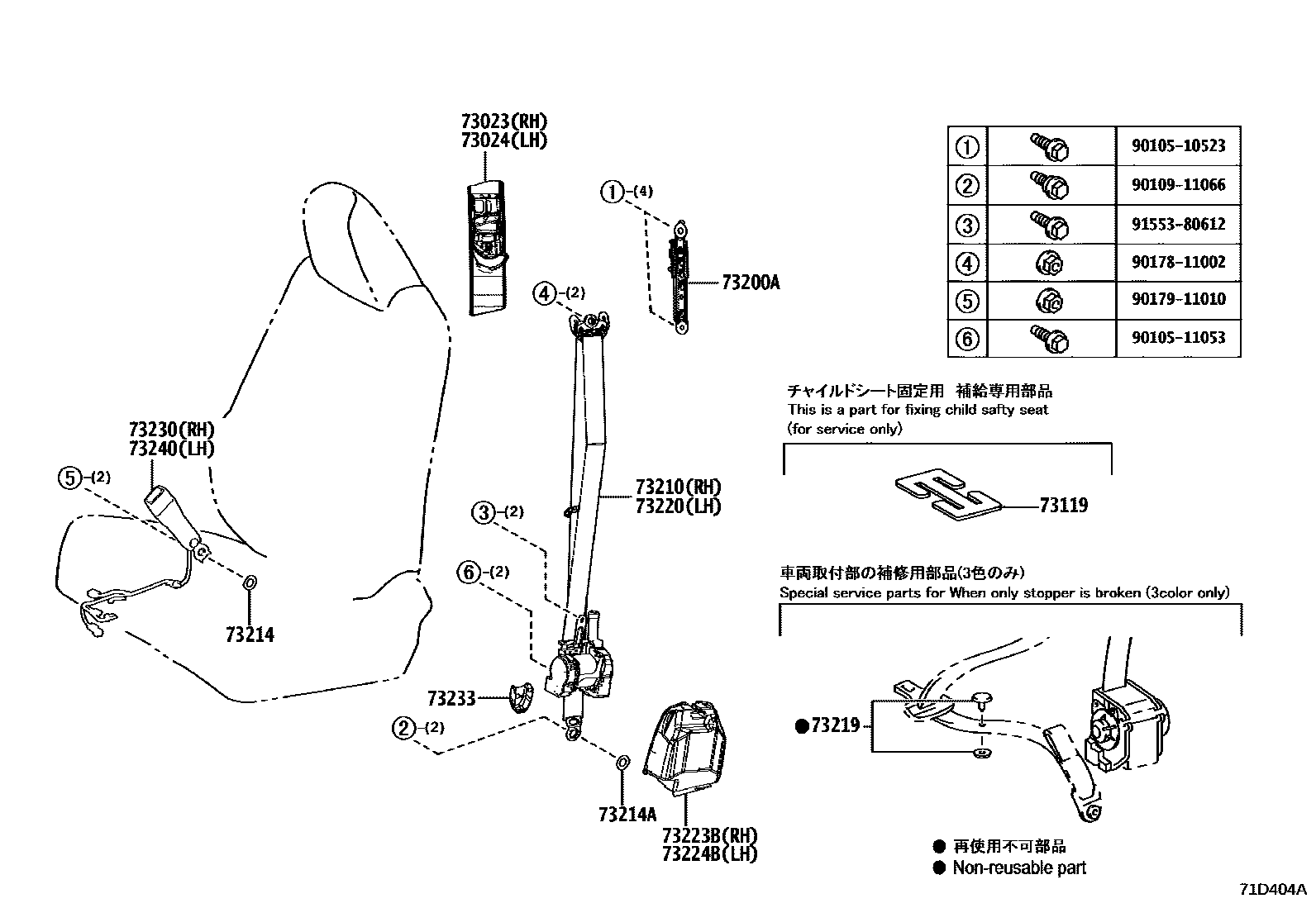

Toyota LEXUS UX300E — SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iKMA10202102

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iKMA10202102

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-76200-C1iKMA10202102-202207

BLACK,TRIM0#,1#,2#,4#,8#

sub73210-76201

main73210-76201-C1iKMA10202208

BLACK,TRIM0#,1#,2#,4#,8#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iKMA10202102

73214APLATE, FRONT SEAT BELT ANCHOR, NO.2

main73214-76010iKMA10202102

73219STOPPER, TONGUE PLATE

main73219-33010iKMA10202102

main73219-33020iKMA10202102

main73219-33030iKMA10202102

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76180-C1iKMA10202102-202207

BLACK,TRIM0#,1#,2#,4#,8#

sub73220-76181

main73220-76181-C1iKMA10202208

BLACK,TRIM0#,1#,2#,4#,8#

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-76020iKMA10202102

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-76020iKMA10202102

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-76230-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-76260-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

9010510523

main90105-10523

9010511053

main90105-11053

9010911066

main90109-11066

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

20 parts on this diagram · 2 diagrams in section
