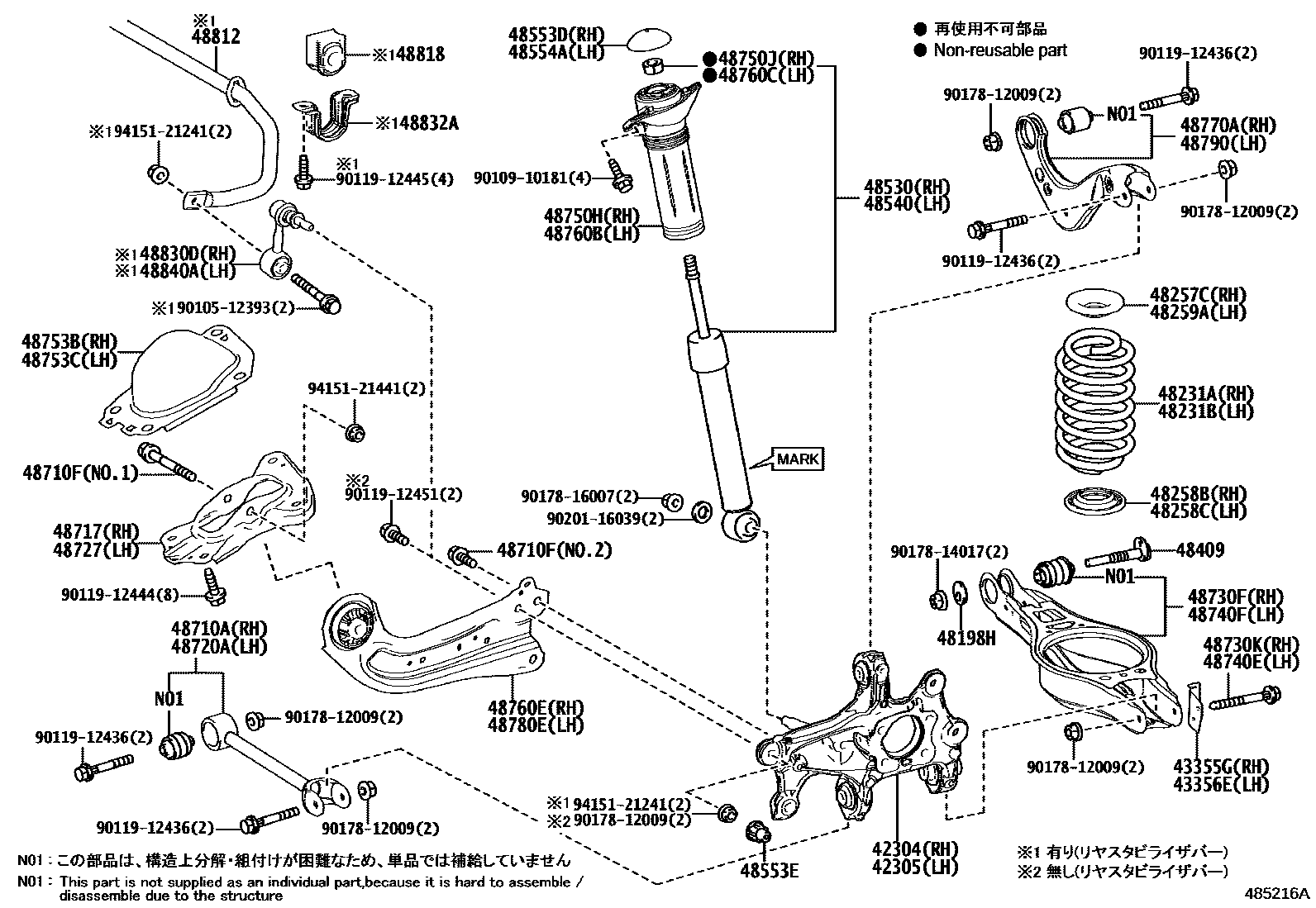

Toyota LEXUS UX300E — REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
43355GDEFLECTOR, LOWER ARM ICE, RH
43356EDEFLECTOR, LOWER ARM ICE, LH
48198HCAM, CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48553DCAP, REAR SHOCK ABSORBER, RH
48553ECAP
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
main48812-76070
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9010512393
main90105-12393
9010910181
main90109-10181
9011912436
main90119-12436
9011912444
main90119-12444
9011912445
main90119-12445
9011912451
main90119-12451
9017812009
main90178-12009
9017814017
main90178-14017
9017816007
main90178-16007
9020116039
main90201-16039
9415121241
main94151-21241
9415121441
main94151-21441
53 parts on this diagram · 1 diagram in section
