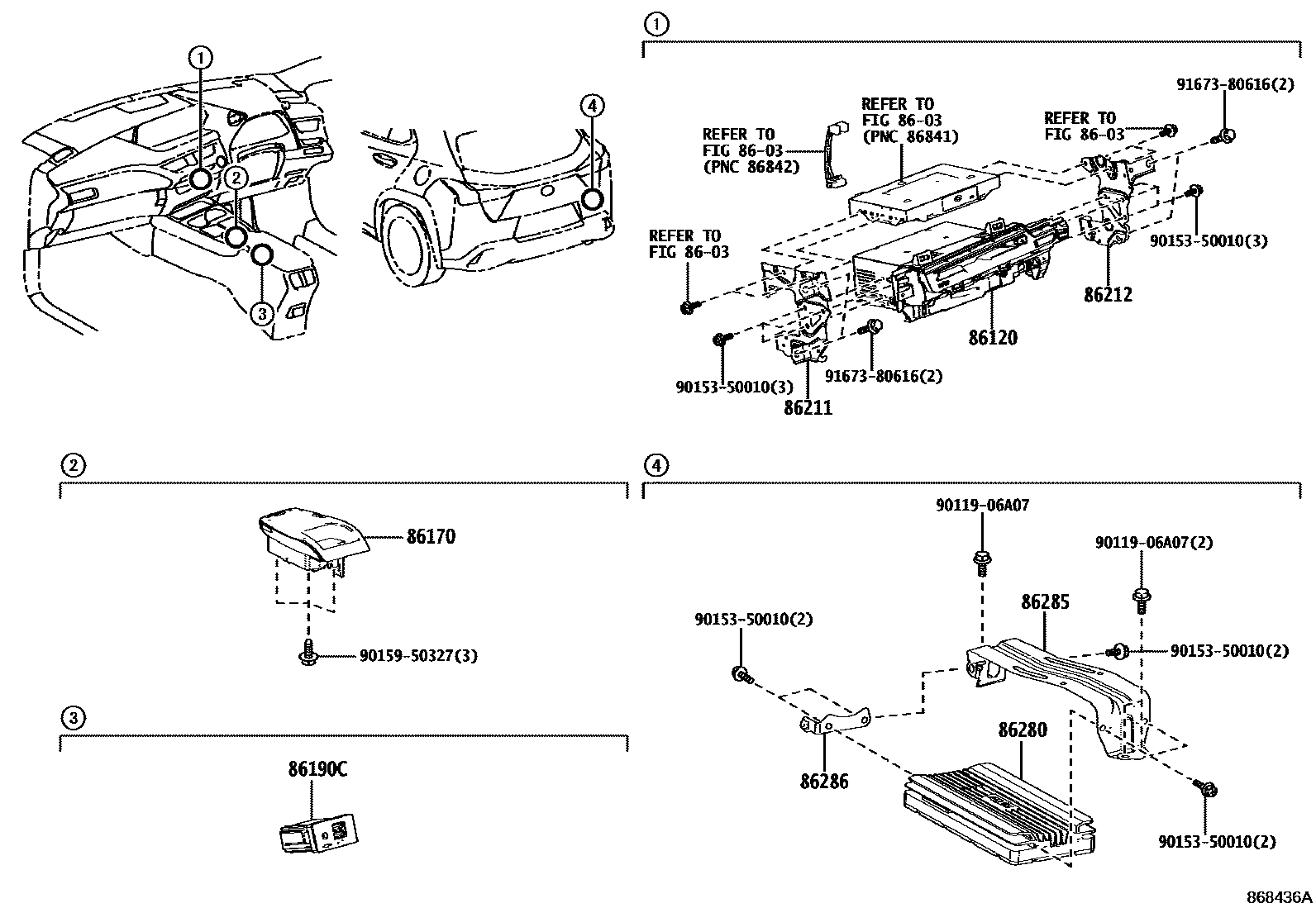

Toyota LEXUS UX300E — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1����� & ��������� 0002 1������

8603

86120RECEIVER ASSY, RADIO

main86120-76N20iKMA10202102

86170SWITCH AND VOLUME ASSY, RADIO

main86170-76010iKMA10202102

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24030iKMA10202102

86211BRACKET, RADIO, NO.1

main86211-76160iKMA10202102

86212BRACKET, RADIO, NO.2

main86212-76170iKMA10202102

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WG11iKMA10202102

86285BRACKET, AMPLIFIER, NO.1

main86285-76040iKMA10202102

86286BRACKET, AMPLIFIER, NO.2

main86286-76030iKMA10202102

9011906A07

main90119-06A07

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
