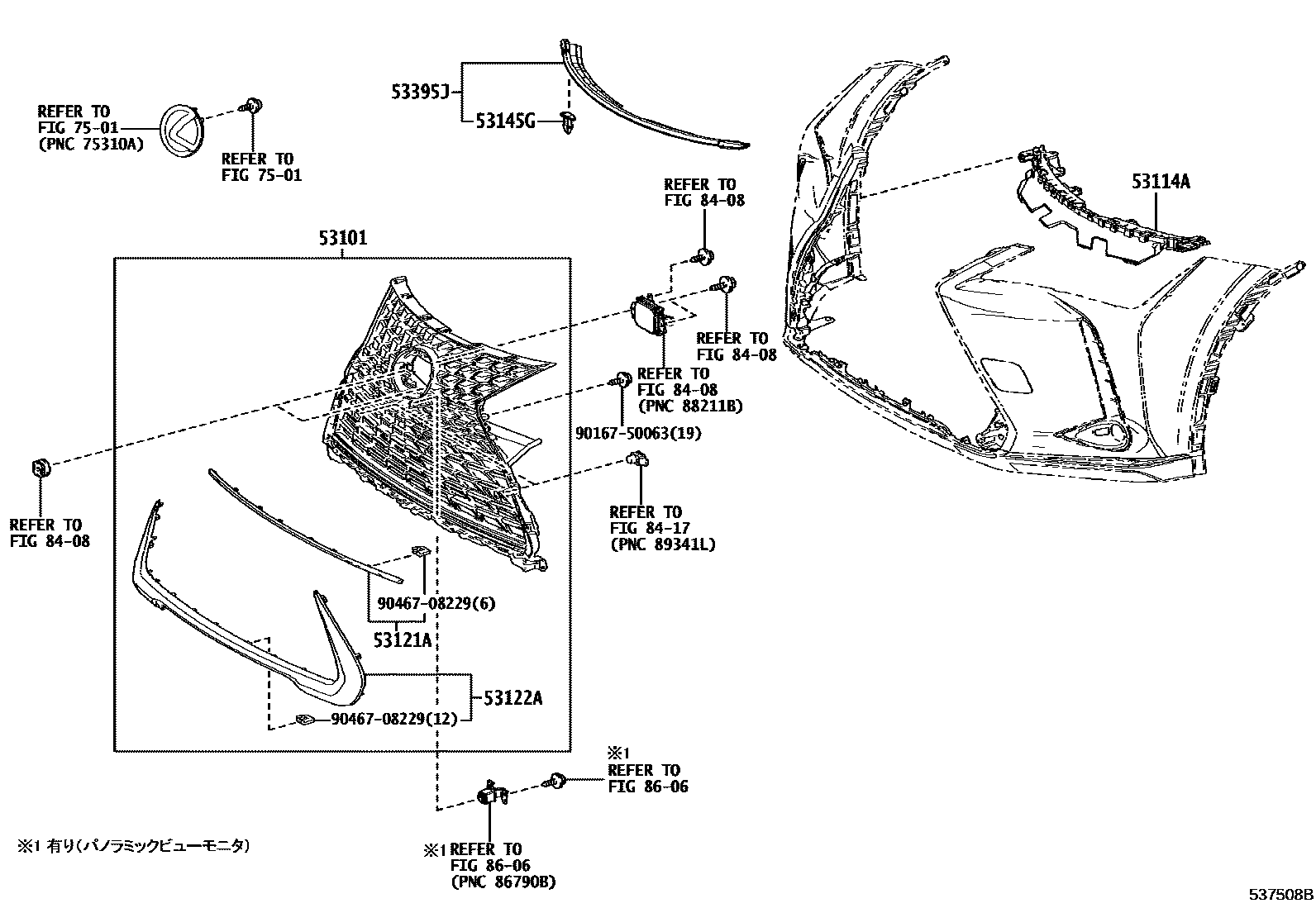

Toyota LEXUS UX300E — RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-76230iKMA10202102-202108

main53101-76630iKMA10202108

53114AGRILLE, RADIATOR, INNER

main53114-76010iKMA10202102

53121AMOULDING, RADIATOR GRILLE

main53123-76020iKMA10202102

53122AMOULDING, RADIATOR GRILLE, LOWER

main53122-76060iKMA10202102

53145GCLIP, RADIATOR GRILLE

main53145-60030iKMA10202102

53395JSEAL, HOOD TO FRONT END PANEL

main53395-76030iKMA10202102

7501

8408

8417

8606

9016750063

main90167-50063

9046708229

main90467-08229

12 parts on this diagram · 1 diagram in section
