Toyota LEXUS UX300E — PARKING BRAKE & CABLE

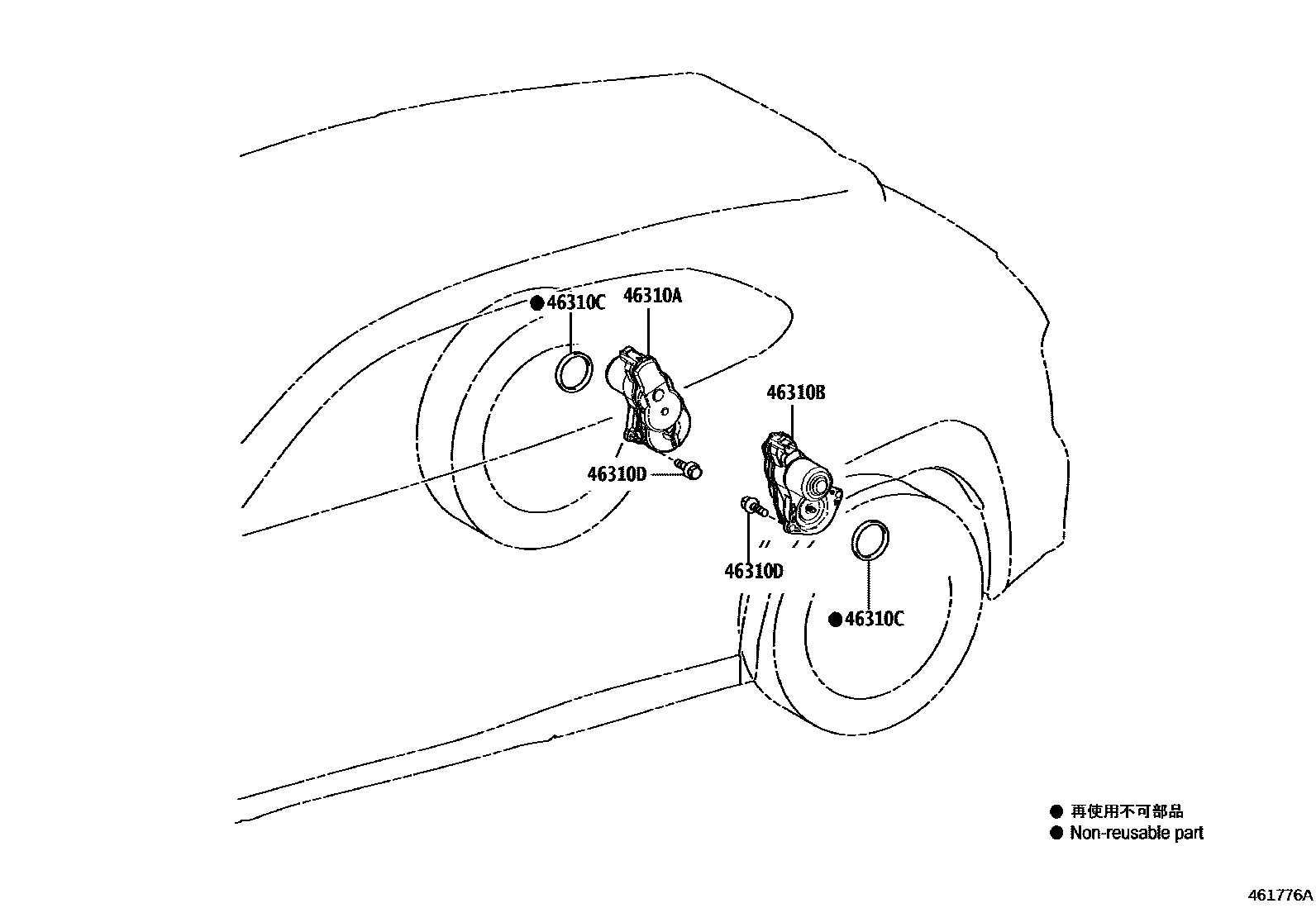

Parts diagram

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-33010i202102

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-33010i202102

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005i202102

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main90015-AA702i202102

4 parts on this diagram · 1 diagram in section
