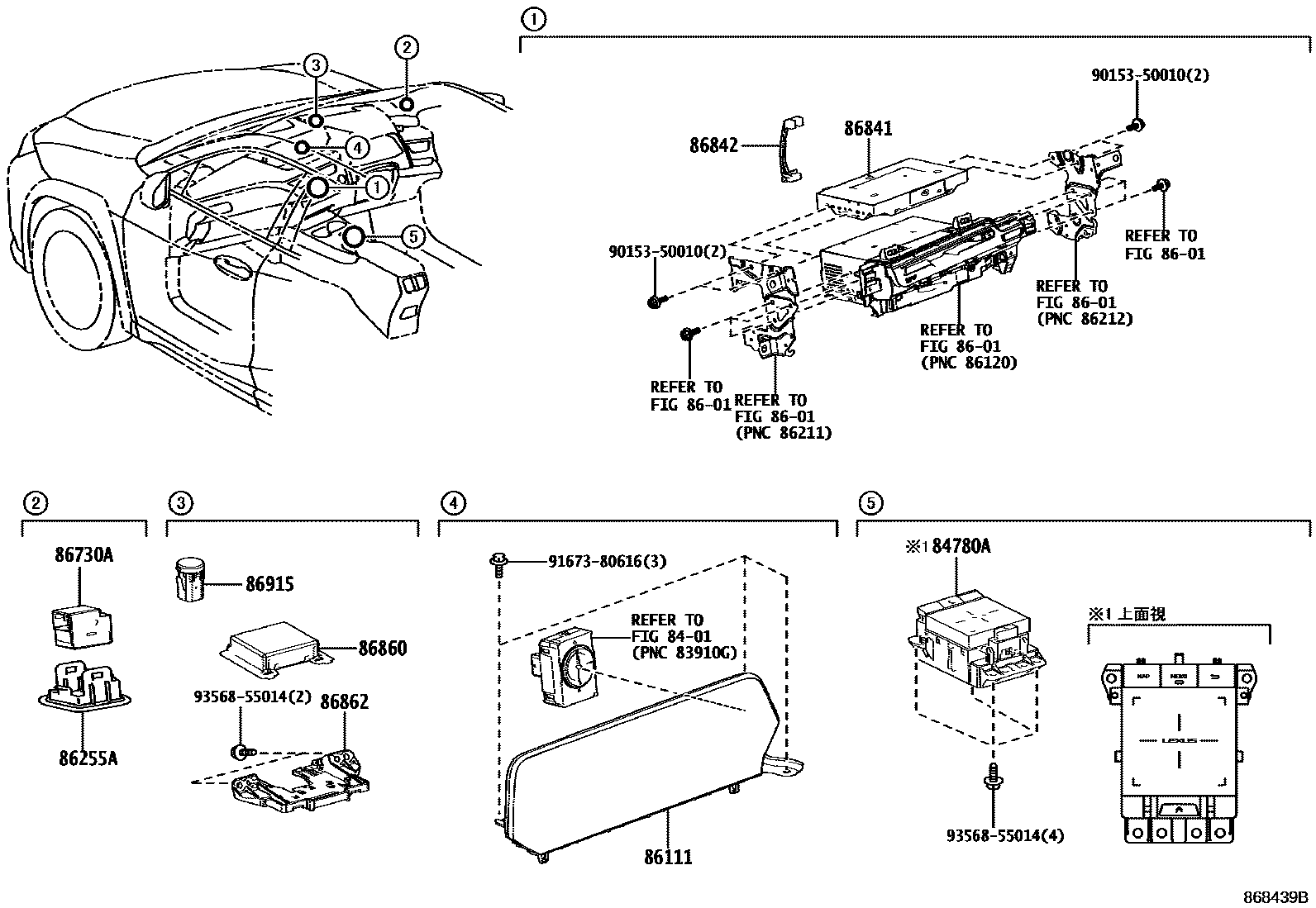

Toyota LEXUS UX300E — NAVIGATION & FRONT MONITOR DISPLAY

8401

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-76170iKMA10202102-202108

main84780-76171iKMA10202108

8601

86111MULTI-DISPLAY

main86111-76180iKMA10202102

86255ACASE, MICROPHONE, NO.1

main86255-78010-A1iKMA10202102

WHITE,TRIM0#,11,4#,8#

main86255-78010-C1iKMA10202102

BLACK,TRIM10,2#

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010iKMA10202102-202103

sub86730-48110

main86730-48110iKMA10202104

86841COMPUTER, NAVIGATION

main86840-48173iKMA10202102-202103

sub86840-48174

main86840-48174iKMA10202104-202108

sub86840-48175

main86840-48175iKMA10202109-202206

sub86840-48176

main86840-48176iKMA10202207-202211

sub86840-48177

86842WIRE, NAVIGATION, NO.1

main86842-76320iKMA10202102

86860ANTENNA ASSY, NAVIGATION

main86880-78010iKMA10202102

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iKMA10202110

main86862-58020iKMA10202102-202109

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iKMA10202102

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

14 parts on this diagram · 1 diagram in section
