EPC Data

Toyota LEXUS UX300E — MIRROR

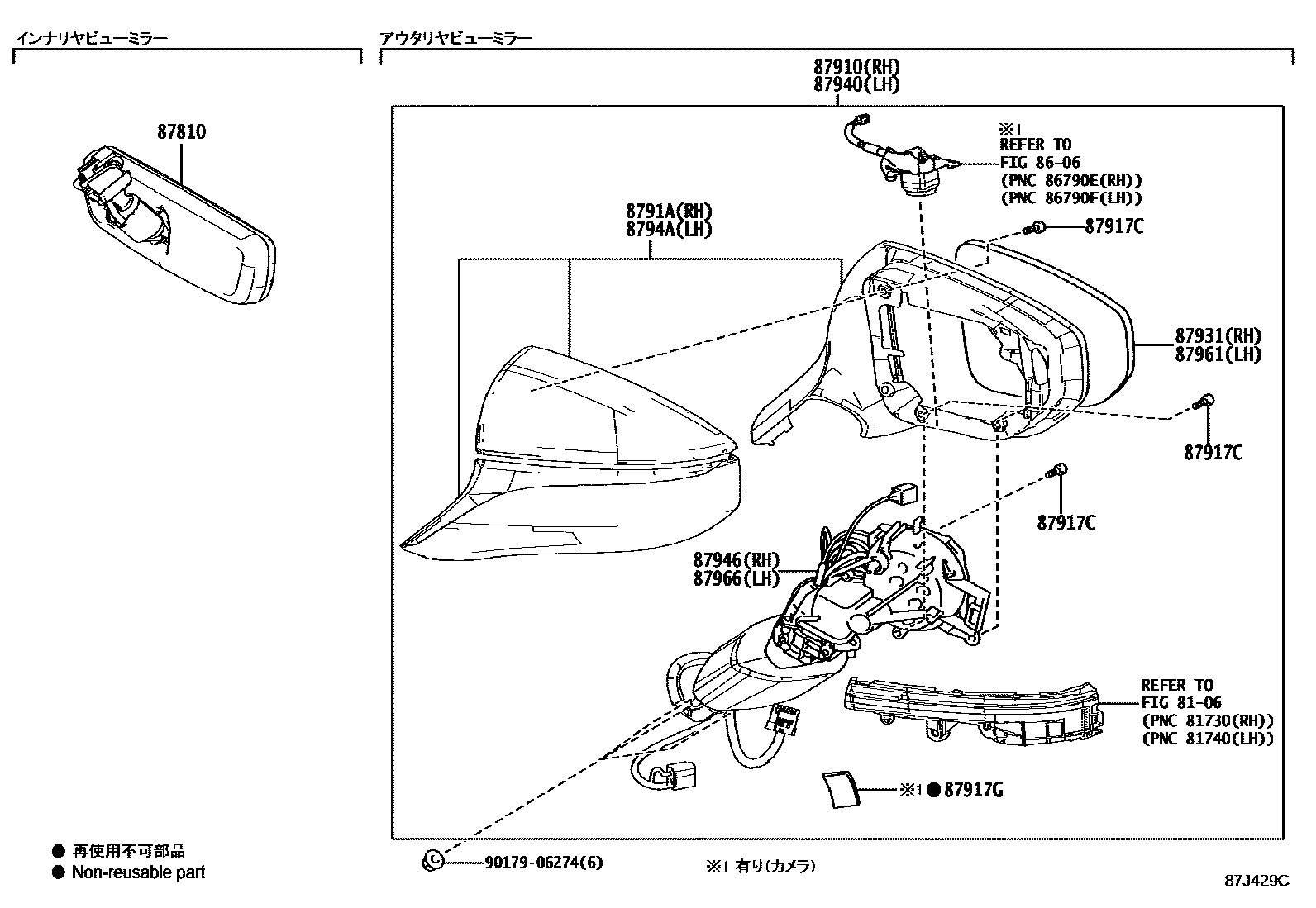

Parts diagram
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
main87810-0WS40i202102
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-76170-A1i202102
SONIC QUARTZ,085
main87910-76170-B0i202102
MERCURY GRAY MC.,1H9
main87910-76170-B1i202102-202108
PLATINUM SILVER ME.,1J4
main87910-76170-B2i202102
SONIC TITANIUM,1J7
main87910-76170-B3i202108
SONIC CHROME,1L1
main87910-76170-C0i202102
BLACK,212
main87910-76170-C1i202102
GRAPHITE BLACK GF.,223
main87910-76170-D0i202102
MADDER RED,3T2
main87910-76170-E0i202102-202108
AMBER CS.,4X2
main87910-76170-E1i202102
BLAZING CARNELIAN CONTRAS,4Y1
main87910-76170-G0i202102
TERRANE KHAKI M.M.,6X4
main87910-76170-J1i202102
CELESTIAL BLUE GF.,8Y6
87917CSCREW, OUTER MIRROR
main87917-50700i202102
87917GTAPE, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
main8791A-11010-A1i202102
SONIC QUARTZ,085
main8791A-11010-B2i202102
SONIC TITANIUM,1J7
main8791A-11010-B3i202102
MERCURY GRAY MC.,1H9
main8791A-11010-B4i202102-202108
PLATINUM SILVER ME.,1J4
main8791A-11010-C0i202102
BLACK,212
main8791A-11010-C1i202102
GRAPHITE BLACK GF.,223
main8791A-11010-D3i202102
MADDER RED,3T2
main8791A-11010-E0i202102-202108
AMBER CS.,4X2
main8791A-11010-E2i202102
BLAZING CARNELIAN CONTRAS,4Y1
main8791A-11010-G1i202102
TERRANE KHAKI M.M.,6X4
main8791A-11010-J3i202102
CELESTIAL BLUE GF.,8Y6
87931OUTER MIRROR, RH
main87931-11070i202102
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-76190-A1i202102-202108
SONIC QUARTZ,085
main87940-76190-B0i202102-202108
MERCURY GRAY MC.,1H9
main87940-76190-B1i202102-202108
PLATINUM SILVER ME.,1J4
main87940-76190-B2i202102-202108
SONIC TITANIUM,1J7
main87940-76190-C0i202102-202108
BLACK,212
main87940-76190-C1i202102-202108
GRAPHITE BLACK GF.,223
main87940-76190-D0i202102-202108
MADDER RED,3T2
main87940-76190-E0i202102-202108
AMBER CS.,4X2
main87940-76190-E1i202102-202108
BLAZING CARNELIAN CONTRAS,4Y1
main87940-76190-G0i202102-202108
TERRANE KHAKI M.M.,6X4
main87940-76190-J1i202102-202108
CELESTIAL BLUE GF.,8Y6
main87940-76410-A1i202108
SONIC QUARTZ,085
main87940-76410-B0i202108
MERCURY GRAY MC.,1H9
main87940-76410-B2i202108
SONIC TITANIUM,1J7
main87940-76410-B3i202108
SONIC CHROME,1L1
main87940-76410-C0i202108
BLACK,212
main87940-76410-C1i202108
GRAPHITE BLACK GF.,223
main87940-76410-D0i202108
MADDER RED,3T2
main87940-76410-E1i202108
BLAZING CARNELIAN CONTRAS,4Y1
main87940-76410-G0i202108
TERRANE KHAKI M.M.,6X4
main87940-76410-J1i202108
CELESTIAL BLUE GF.,8Y6
87946RETRACTOR, OUTER MIRROR, RH
main87908-76170-A1i202102
SONIC QUARTZ,085
main87908-76170-B0i202102
MERCURY GRAY MC.,1H9
main87908-76170-B1i202102-202108
PLATINUM SILVER ME.,1J4
main87908-76170-B2i202102
SONIC TITANIUM,1J7
main87908-76170-C0i202102
BLACK,212
main87908-76170-C1i202102
GRAPHITE BLACK GF.,223
main87908-76170-D0i202102
MADDER RED,3T2
main87908-76170-E0i202102-202108
AMBER CS.,4X2
main87908-76170-E1i202102
BLAZING CARNELIAN CONTRAS,4Y1
main87908-76170-G0i202102
TERRANE KHAKI M.M.,6X4
main87908-76170-J1i202102
CELESTIAL BLUE GF.,8Y6
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-11010-A1i202102-202108
SONIC QUARTZ,085
main8794A-11010-A1i202108
SONIC QUARTZ,085 ,1J4
main8794A-11010-B2i202102-202108
SONIC TITANIUM,1J7
main8794A-11010-B3i202102-202108
MERCURY GRAY MC.,1H9
main8794A-11010-B4i202102-202108
PLATINUM SILVER ME.,1J4
main8794A-11010-B6i202108
SONIC CHROME,1L1
main8794A-11010-C0i202102-202108
BLACK,212
main8794A-11010-C1i202108
GRAPHITE BLACK GF.,223 ,4X2
main8794A-11010-C1i202102-202108
GRAPHITE BLACK GF.,223
main8794A-11010-D3i202102-202108
MADDER RED,3T2
main8794A-11010-E0i202102-202108
AMBER CS.,4X2
main8794A-11010-E2i202102-202108
BLAZING CARNELIAN CONTRAS,4Y1
main8794A-11010-E2i202108
BLAZING CARNELIAN CONTRAS,4Y1 ,6X4
main8794A-11010-G1i202102-202108
TERRANE KHAKI M.M.,6X4
main8794A-11010-G1i202108
TERRANE KHAKI M.M.,6X4 ,8Y6
main8794A-11010-J3i202102
CELESTIAL BLUE GF.,8Y6
87961MIRROR OUTER, LH
main87961-11070i202102-202108
main87961-53B60i202108
87966RETRACTOR, OUTER MIRROR, LH
main87909-76190-A1i202102-202108
SONIC QUARTZ,085
main87909-76190-B0i202102-202108
MERCURY GRAY MC.,1H9
main87909-76190-B1i202102-202108
PLATINUM SILVER ME.,1J4
main87909-76190-B2i202102-202108
SONIC TITANIUM,1J7
main87909-76190-C0i202102-202108
BLACK,212
main87909-76190-C1i202102-202108
GRAPHITE BLACK GF.,223
main87909-76190-D0i202102-202108
MADDER RED,3T2
main87909-76190-E0i202102-202108
AMBER CS.,4X2
main87909-76190-E1i202102-202108
BLAZING CARNELIAN CONTRAS,4Y1
main87909-76190-G0i202102-202108
TERRANE KHAKI M.M.,6X4
main87909-76190-J1i202102-202108
CELESTIAL BLUE GF.,8Y6
main87909-76410-A1i202108
SONIC QUARTZ,085 ,1J4
main87909-76410-B0i202108
MERCURY GRAY MC.,1H9 ,1J7
main87909-76410-B2i202108
SONIC TITANIUM,1J7 ,212
main87909-76410-B3i202108
SONIC CHROME,1L1 ,223
main87909-76410-C0i202108
BLACK,212 ,3T2
main87909-76410-C1i202108
GRAPHITE BLACK GF.,223 ,4X2
main87909-76410-D0i202108
MADDER RED,3T2 ,4Y1
main87909-76410-E1i202108
BLAZING CARNELIAN CONTRAS,4Y1 ,6X4
main87909-76410-G0i202108
TERRANE KHAKI M.M.,6X4 ,8Y6
main87909-76410-J1i202108
CELESTIAL BLUE GF.,8Y6
9017906274
main90179-06274

14 parts on this diagram · 1 diagram in section
