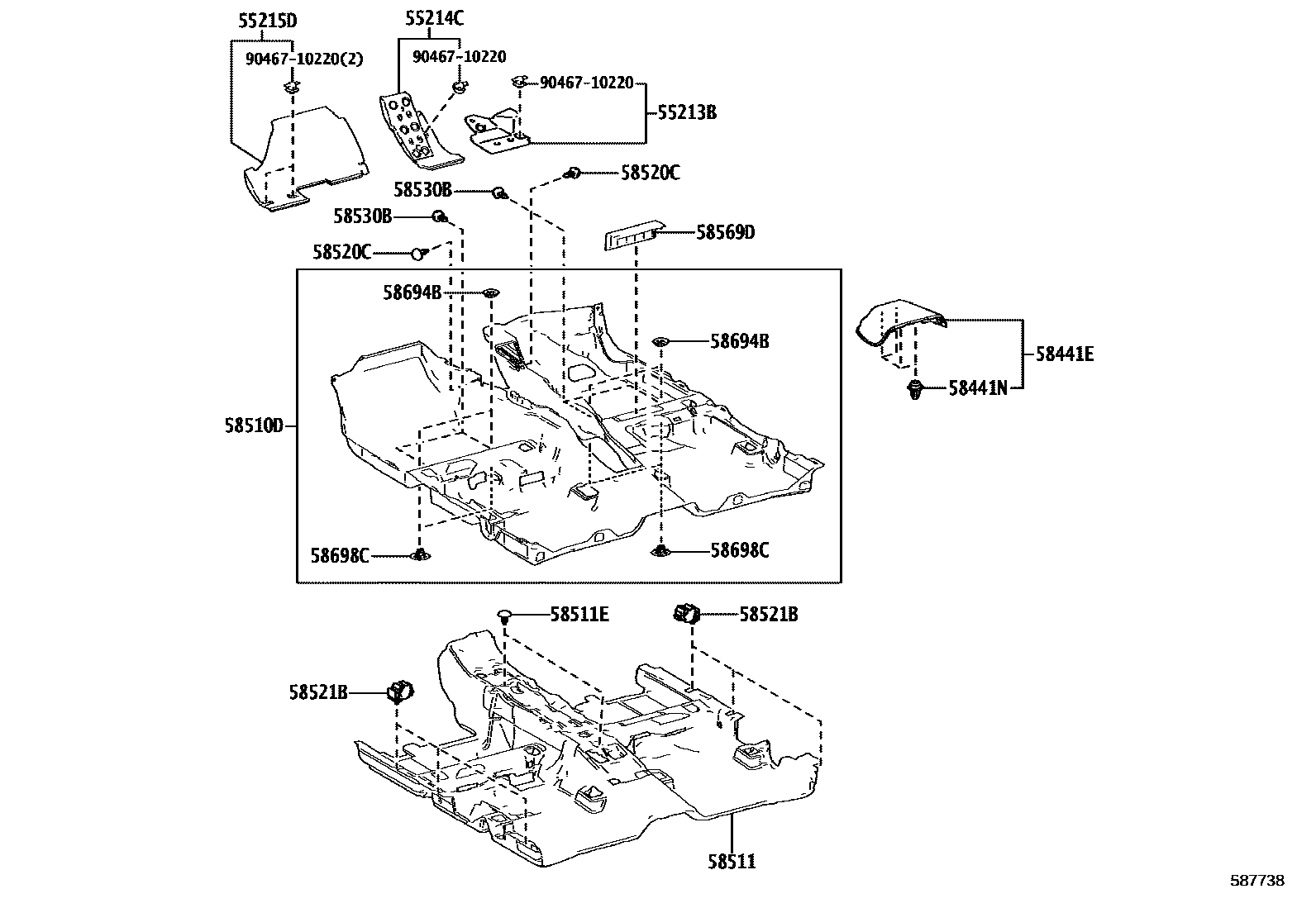

Toyota LEXUS UX300E — MAT & CARPET

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-76050iKMA10202102

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-76050iKMA10202102-202108

sub55214-76051

main55214-76051iKMA10202109

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-76020iKMA10202102

58441ECOVER, BATTERY SERVICE HOLE

main58441-76050-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

58441NCLIP(FOR BATTERY SERVICE HOLE COVER)

main90467-10161iKMA10202102

58510DCARPET ASSY, FLOOR, FRONT

main58510-76270-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

58511MAT, FLOOR, FRONT

main58511-76030iKMA10202102

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iKMA10202102

BLACK

sub90467-07042

sub90467-06175

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

sub90467-05164

58521BHOOK, FLOOR CARPET

main58521-33060iKMA10202102

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07226-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-76030-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

58694BPLATE, MAT SET, UPPER

main58694-78010iKMA10202102

58698CPLATE, MAT SET, LOWER

main58698-78010iKMA10202102

9046710220

main90467-10220

15 parts on this diagram · 1 diagram in section
