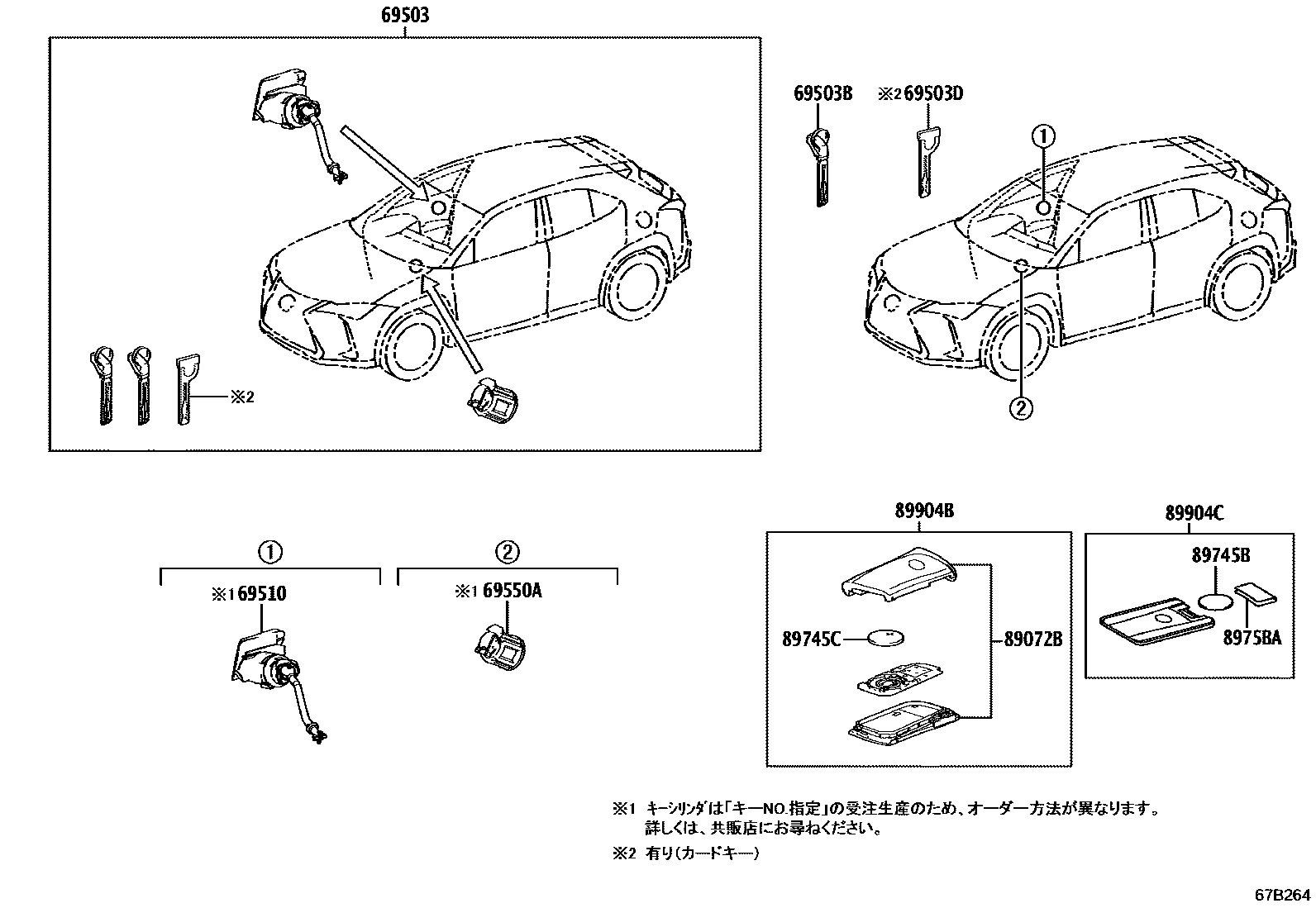

Toyota LEXUS UX300E — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-76090iKMA10202102

69503BKEY, CUT

main69515-33140iKMA10202102

69503DKEY, CUT(CARD KEY)

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-76030iKMA10202102

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iKMA10202102

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-76510iKMA10202102

89745BBATTERY, TRANSMITTER(CARD KEY)

89745CBATTERY, TRANSMITTER

main89745-50020iKMA10202102

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-76550iKMA10202102

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

11 parts on this diagram · 1 diagram in section
