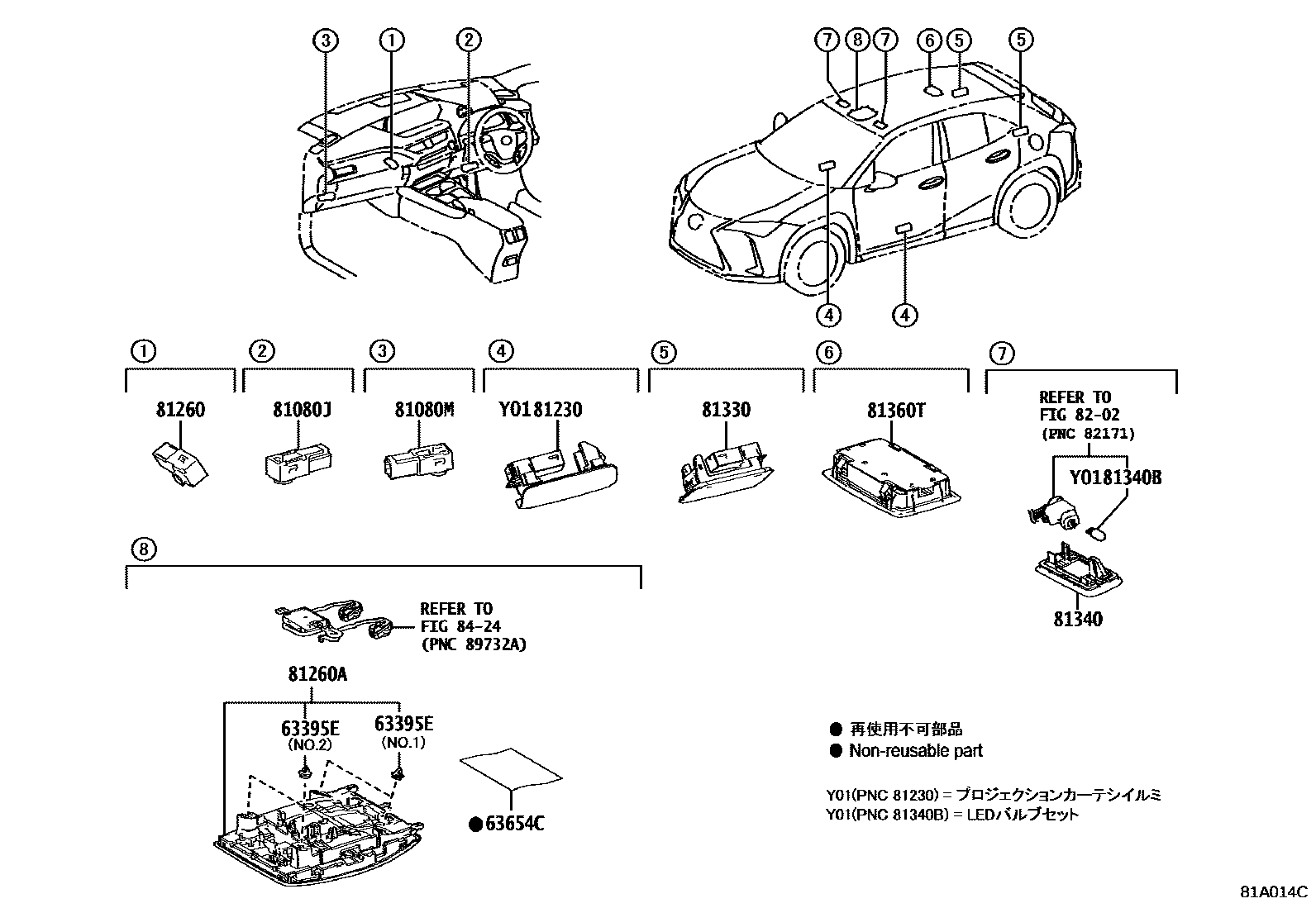

Toyota LEXUS UX300E — INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09240iKMA10202102-202103

main90467-09245iKMA10202103

main90467-10167iKMA10202102

63654CCOVER, ROOF CONSOLE BOX, INNER

main63654-33030iKMA10202102

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50110iKMA10202102

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-50110iKMA10202102

81230LAMP ASSY, COURTESY

main81230-11030iKMA10202102

81260LAMP ASSY, GLOVE BOX

main81080-50110iKMA10202102

81260ALAMP ASSY, MAP

main81208-76280-A0iKMA10202102-202203

WHITE,TRIM0#,11,4#,8#

sub81208-76281

main81208-76280-C0iKMA10202102-202203

BLACK,TRIM10,2#

sub81208-76281

main81208-76281-A0iKMA10202204

WHITE,TRIM0#,4#,8#

main81208-76281-C0iKMA10202204

BLACK,TRIM1#,2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iKMA10202102

81340LAMP ASSY, VANITY

main81340-30110iKMA10202102

81340BBULB (FOR VANITY LAMP)

main90981-11062iKMA10202102

81360TLAMP ASSY, SPOT

main81360-76010-A0iKMA10202102

WHITE,TRIM0#,11,4#,8#

main81360-76010-C0iKMA10202102

BLACK,TRIM10,2#

8202

8424

13 parts on this diagram · 1 diagram in section
