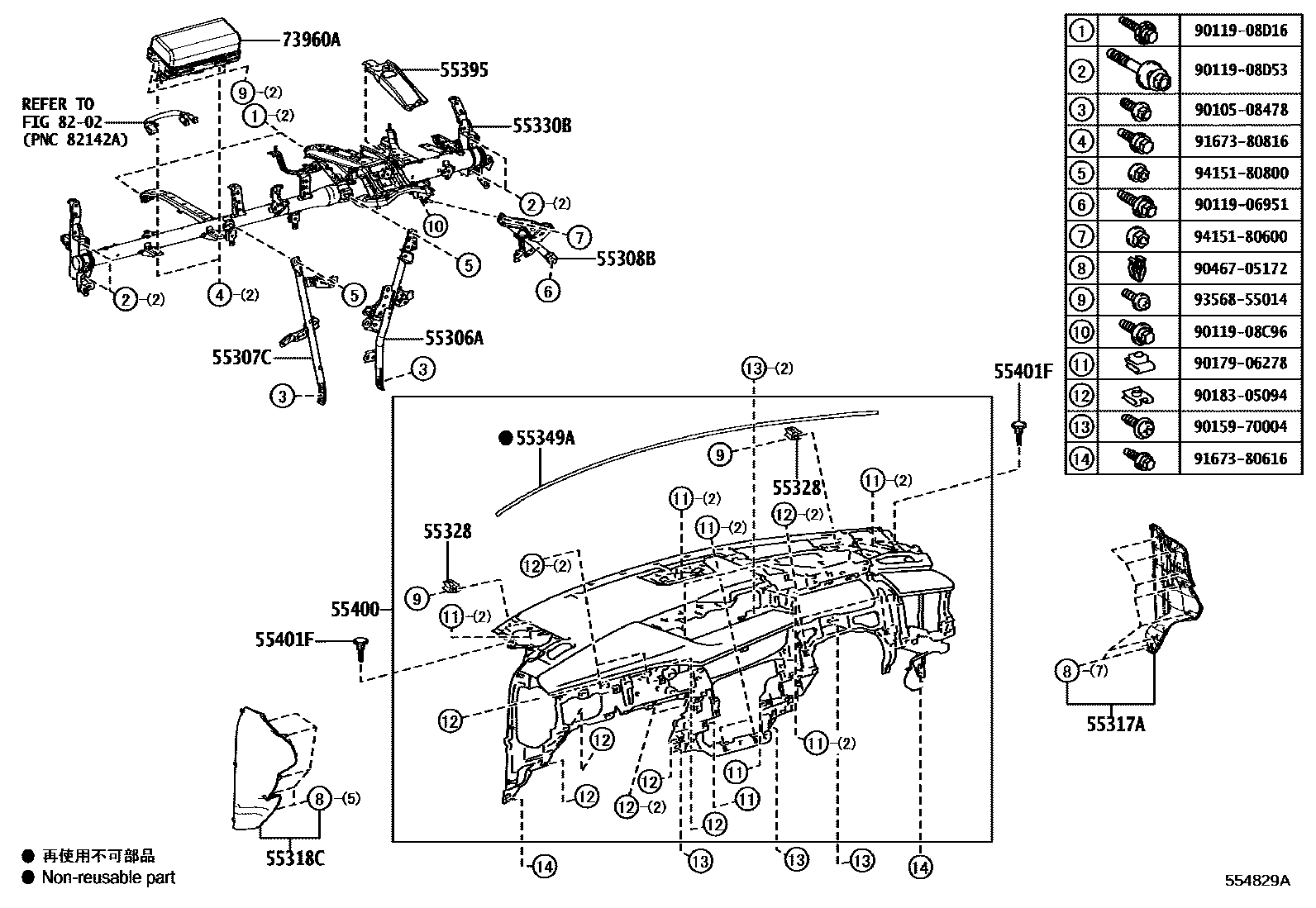

Toyota LEXUS UX300E — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-76050iKMA10202102

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-76040iKMA10202102

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-76020iKMA10202102

55317APANEL, INSTRUMENT SIDE, RH

main55317-76080-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-76090-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-76090iKMA10202102

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-76080iKMA10202102

55349ACUSHION, INSTRUMENT PANEL

main55349-76030iKMA10202102

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-12040iKMA10202102

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-76040-28iKMA10202102

BLACK/BLACK/LT.GRAY,TRIM10,2#

main55400-76040-29iKMA10202102

BLACK/BLACK/ROYAL BROWN,TRIM4#

main55400-76040-E0iKMA10202102

NOBLEBROWN/BLACK/ME.WHITE,TRIM0#,11

main55400-76040-J1iKMA10202102

BLUE/BLACK/LT.GRAY,TRIM8#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iKMA10202102

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-76030iKMA10202102

8202

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9011908D53

main90119-08D53

9015970004

main90159-70004

9017906278

main90179-06278

9018305094

main90183-05094

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 4 diagrams in section
