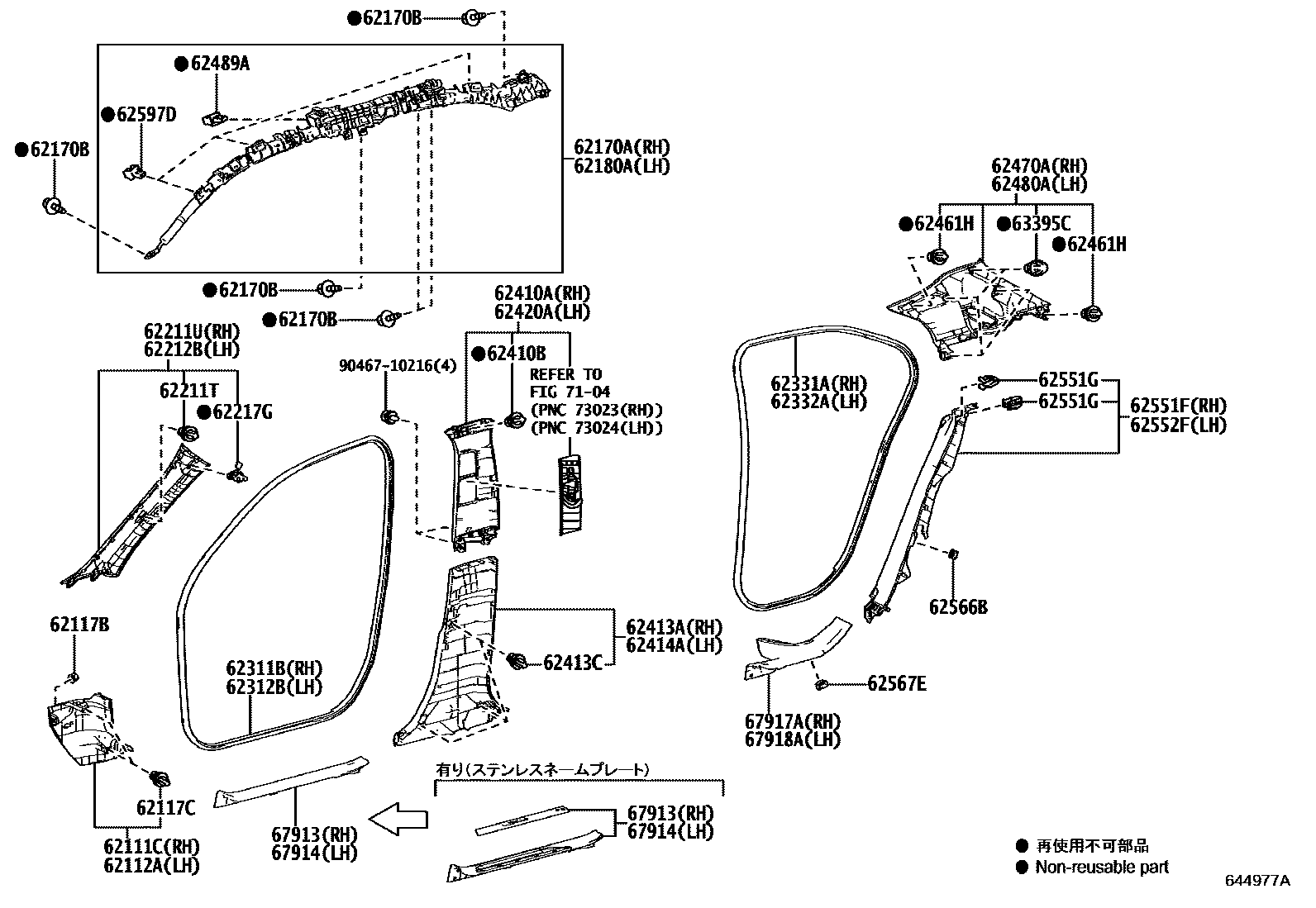

Toyota LEXUS UX300E — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,1#,2#,4#,8#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,1#,2#,4#,8#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211TCLIP(FOR FRONT PILLAR GARNISH)
62211UGARNISH ASSY, FRONT PILLAR, RH
BLACK,TRIM0#,1#,2#,4#,8#
62212BGARNISH ASSY, FRONT PILLAR, LH
BLACK,TRIM0#,1#,2#,4#,8#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
BLACK,TRIM0#,1#,2#,4#,8#
62410BCLIP
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,1#,2#,4#,8#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,1#,2#,4#,8#
62420AGARNISH ASSY, CENTER PILLER, LH
BLACK,TRIM0#,1#,2#,4#,8#
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
WHITE,TRIM0#,11,4#,8#
BLACK,TRIM10,2#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
WHITE,TRIM0#,11,4#,8#
BLACK,TRIM10,2#
62489ACLIP, ROOF SIDE INNER GARNISH
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,1#,2#,4#,8#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,1#,2#,4#,8#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62597DCLIP
63395CCLIP(FOR ROOF SIDE INNER GARNISH)
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#,8#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#,8#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#,8#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#,8#
7104
9046710216
main90467-10216
38 parts on this diagram · 1 diagram in section
