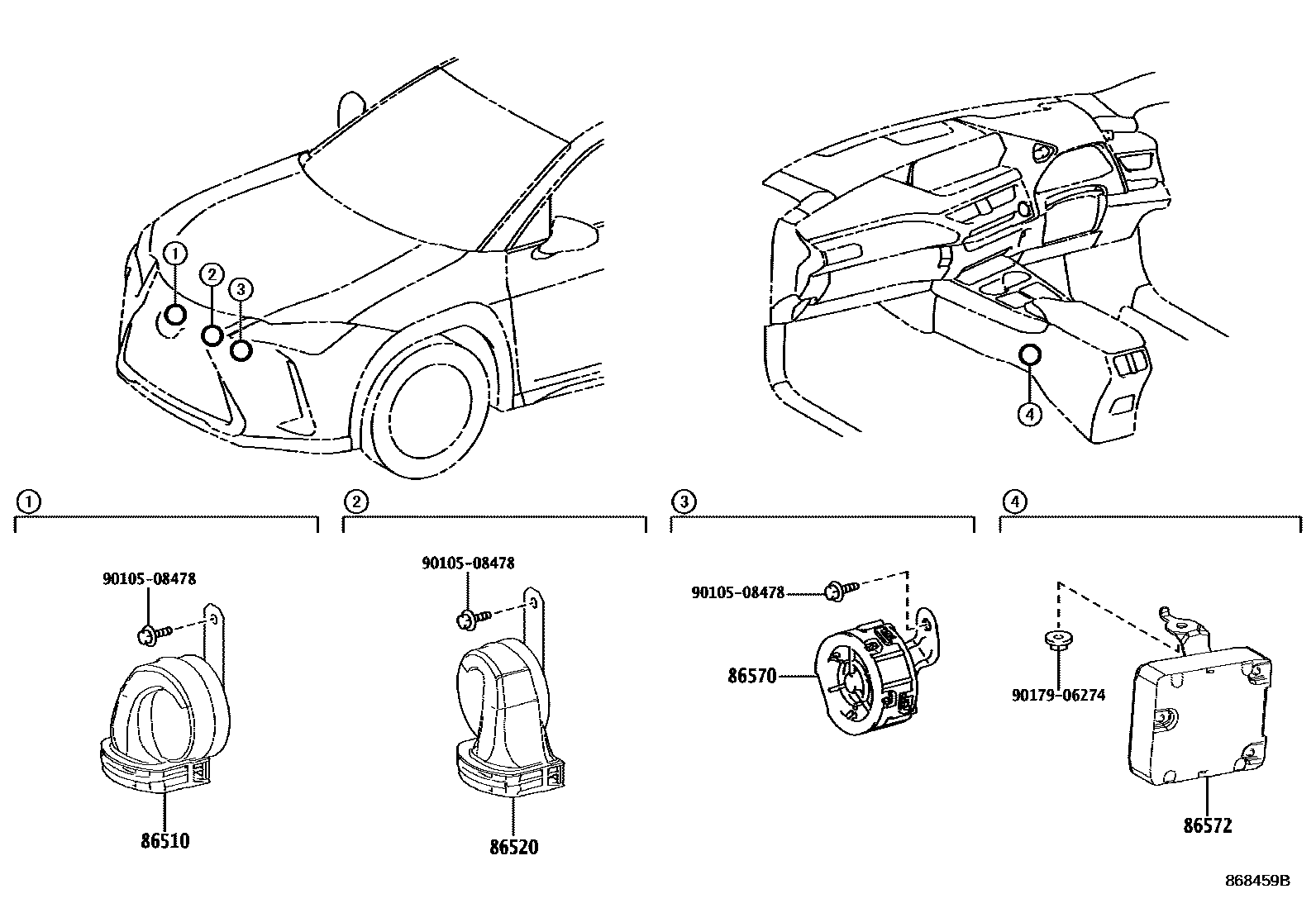

Toyota LEXUS UX300E — HORN

0001 1 0002 1

86510HORN ASSY, HIGH PITCHED

main86510-48190iKMA10202102

86520HORN ASSY, LOW PITCHED

main86520-30670iKMA10202102

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-76070iKMA10202108

main86570-76080iKMA10202102-202108

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-76130iKMA10202102-202108

main86572-76150iKMA10202108

9010508478

main90105-08478

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
