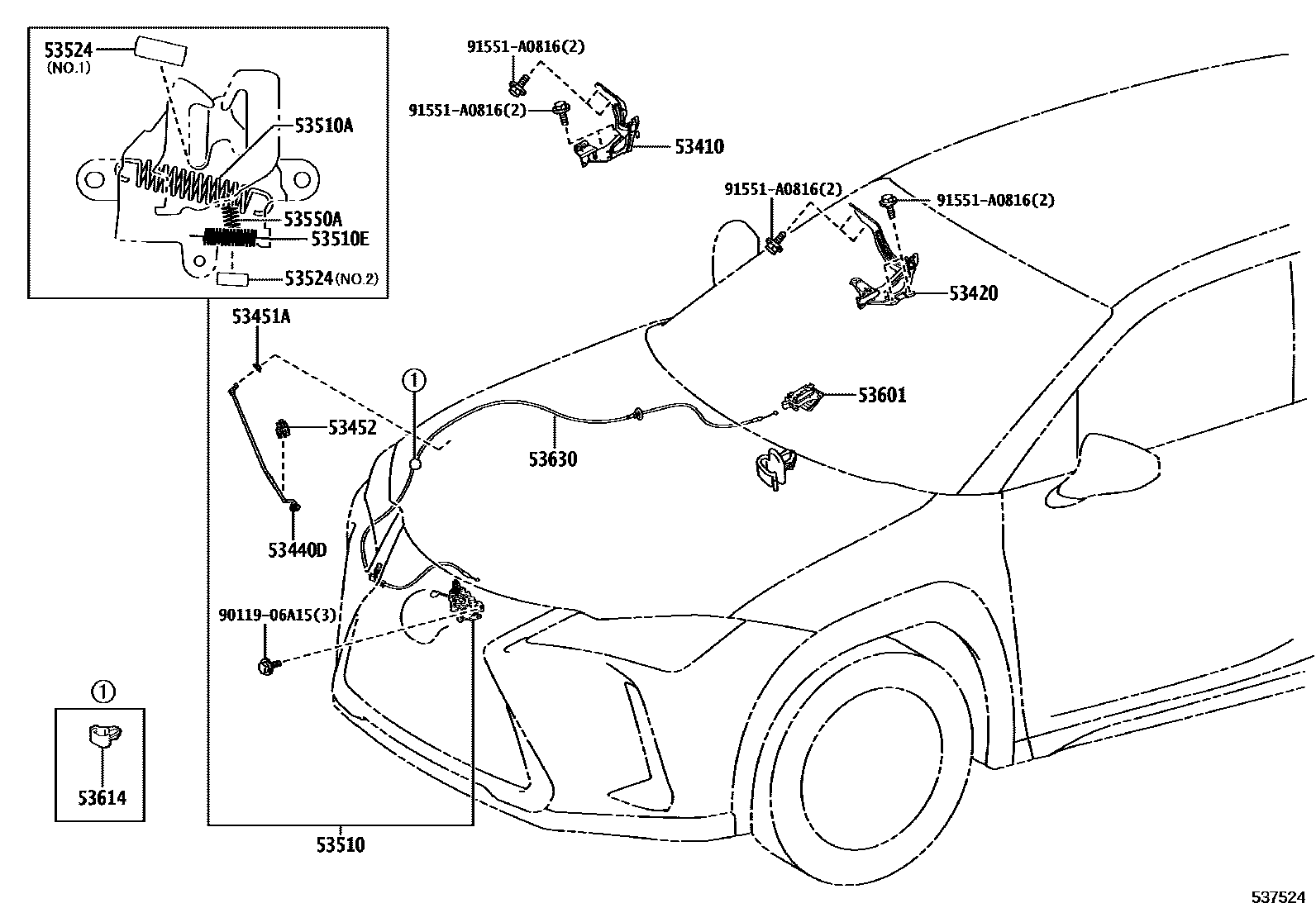

Toyota LEXUS UX300E — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-76050iKMA10202102-202110

sub53410-76051

main53410-76051iKMA10202111

53420HINGE ASSY, HOOD, LH

main53420-76050iKMA10202102-202110

sub53420-76051

main53420-76051iKMA10202111

53440DSUPPORT ASSY, HOOD

main53440-76020iKMA10202102

sub53440-76021

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iKMA10202102

53452HOLDER, HOOD STAY

main53452-76020iKMA10202102

53510LOCK ASSY, HOOD

main53510-76051iKMA10202102

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16080iKMA10202102

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iKMA10202102

53524DAMPER, HOOD LOCK SPRING

main53524-30020iKMA10202102

main53524-30040iKMA10202102

53550ASPRING, TORSION(FOR HOOD LOCK HOOK)

main90506-12063iKMA10202102

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iKMA10202102

BLACK,TRIM0#,1#,2#,4#,8#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-1E340iKMA10202102

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-76040iKMA10202102

9011906A15

main90119-06A15

91551A0816

main91551-A0816

15 parts on this diagram · 1 diagram in section
