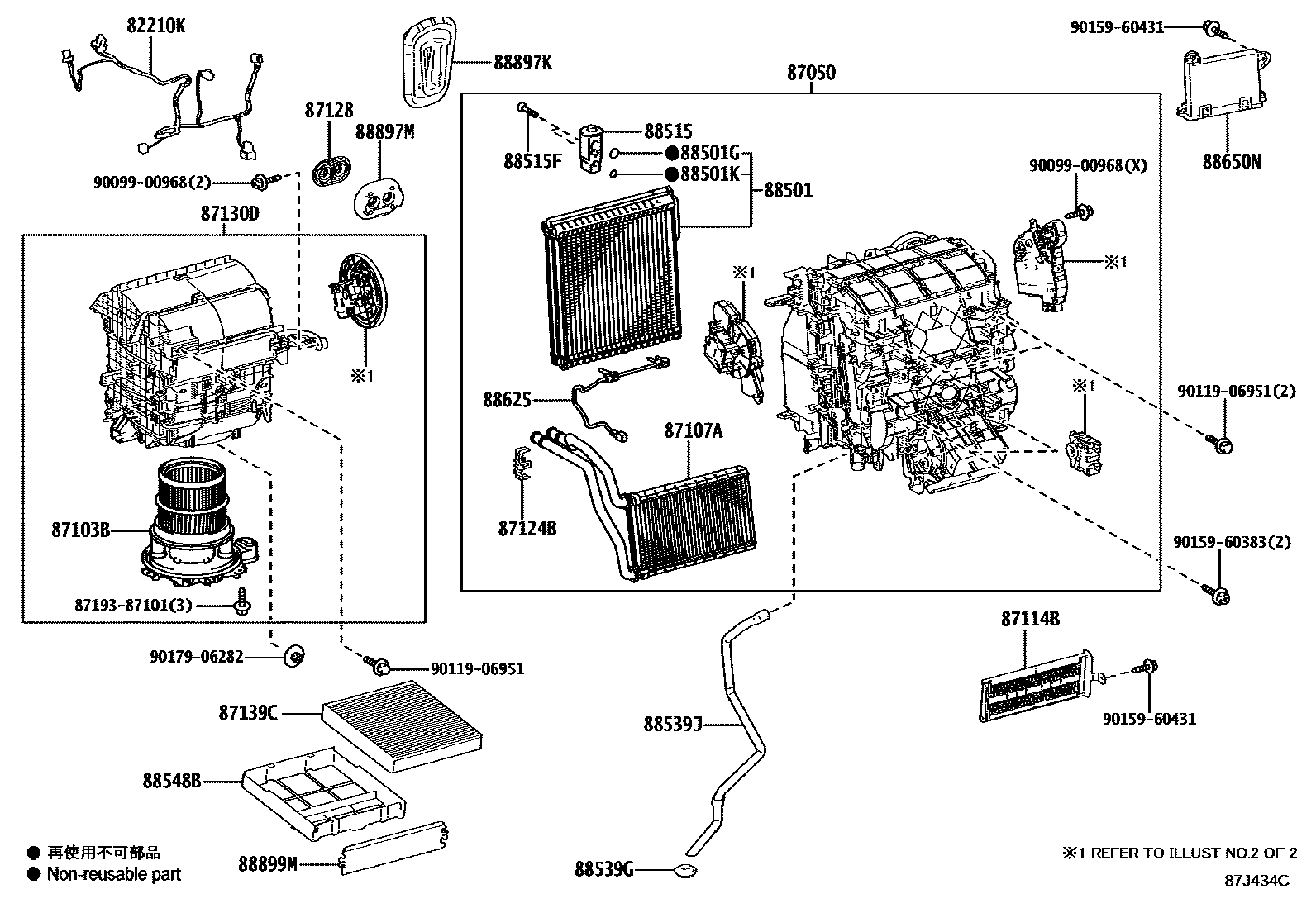

Toyota LEXUS UX300E — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1���������

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12070iKMA10202102

87050RADIATOR ASSY, AIR CONDITIONER

main87050-12B50iKMA10202102

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42130iKMA10202108

main87103-58070iKMA10202102-202108

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iKMA10202102

87114BCOVER, HEATER

main87114-47020iKMA10202102

87124BCLAMP, HEATER

main87124-33070iKMA10202102

87128GROMMET, HEATER

main87128-28010iKMA10202102

87130DBLOWER ASSY

main87130-42480iKMA10202108

main87130-47300iKMA10202102-202108

87139CFILTER, CLEAN AIR

main87139-76020iKMA10202102

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47100iKMA10202102

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iKMA10202102

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iKMA10202102

88515VALVE, COOLER EXPANSION

main88515-50320iKMA10202102

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iKMA10202102

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iKMA10202102

88539JHOSE, DRAIN COOLER

main88539-76020iKMA10202102

88548BCASE, AIR FILTER

main88899-76020iKMA10202102

88625THERMISTOR, COOLER, NO.1

main88620-28060iKMA10202102

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-76730iKMA10202102-202108

main88650-76760iKMA10202108-202211

88897KGROMMET, (FOR COOLER PIPE)

main88899-47070iKMA10202102

88897MGROMMET (FOR HEATER PIPE)

main87128-28020iKMA10202102

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iKMA10202102

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

28 parts on this diagram · 2 diagrams in section
