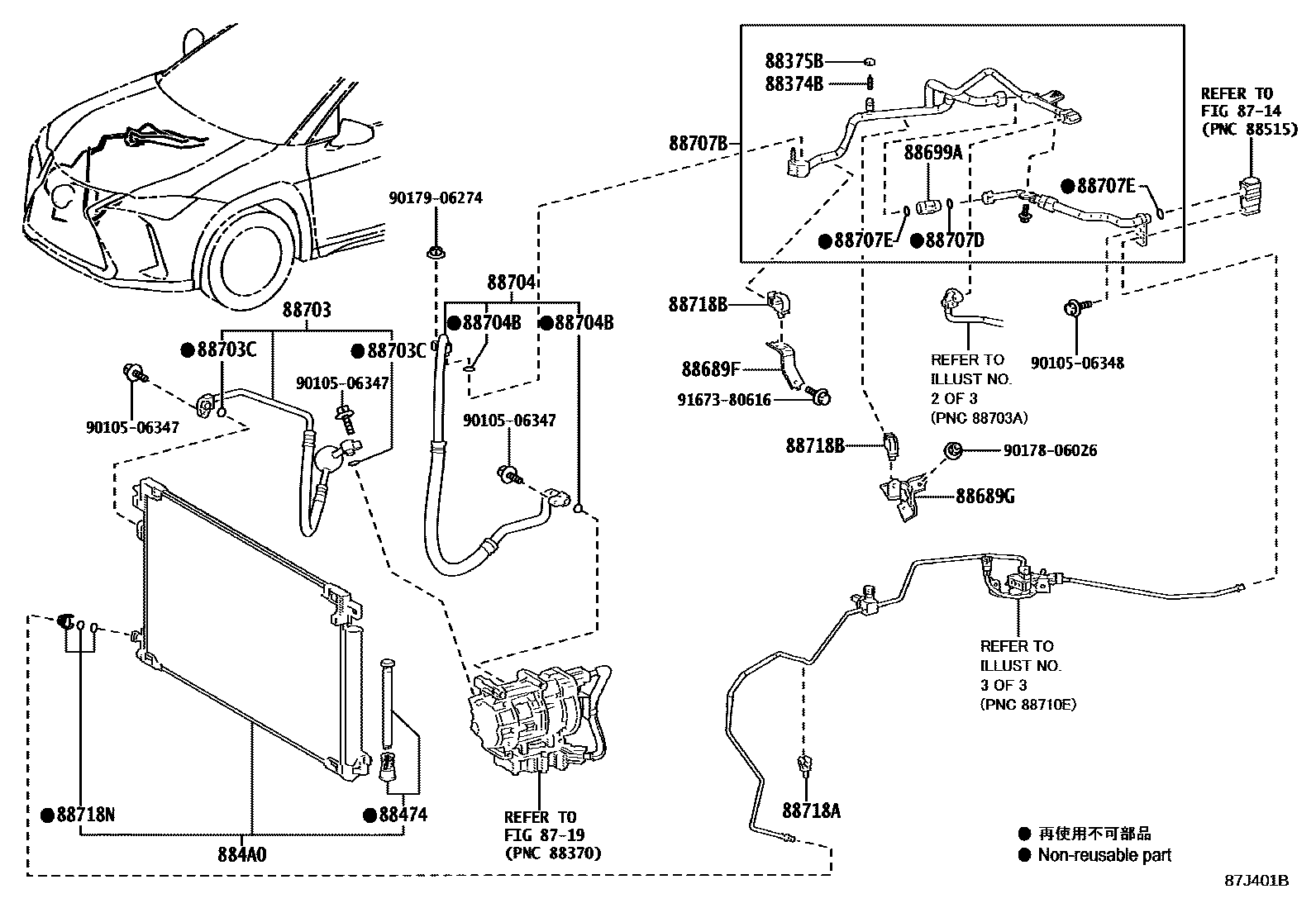

Toyota LEXUS UX300E — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iKMA10202102

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iKMA10202102

88474DRYER, COOLER

main88474-12020iKMA10202102

884A0CONDENSER ASSY, COOLER

main88460-10320iKMA10202102

88689FBRACKET, COOLER, NO.2

main88688-76080iKMA10202102

88689GBRACKET, COOLER, NO.3

main88688-76090iKMA10202102

88699AVALVE, AIR

main88699-60010iKMA10202102

88703HOSE SUB-ASSY, DISCHARGE

main88703-76070iKMA10202102

sub88703-76071

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iKMA10202102

88704HOSE SUB-ASSY, SUCTION

main88704-76040iKMA10202102

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iKMA10202102

88707BTUBE SUB-ASSY, SUCTION, B

main88707-76110iKMA10202102

88707DRING, O(FOR SUCTION TUBE)

main90099-14120iKMA10202102

88707ERING, O, NO.2(FOR SUCTION TUBE)

main90099-14121iKMA10202102

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-47110iKMA10202102

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-76030iKMA10202102

88718NCLAMP, PIPING

main88718-1E150iKMA10202102

9010506347

main90105-06347

9010506348

main90105-06348

9017806026

main90178-06026

9017906274

main90179-06274

9167380616

main91673-80616

24 parts on this diagram · 3 diagrams in section
