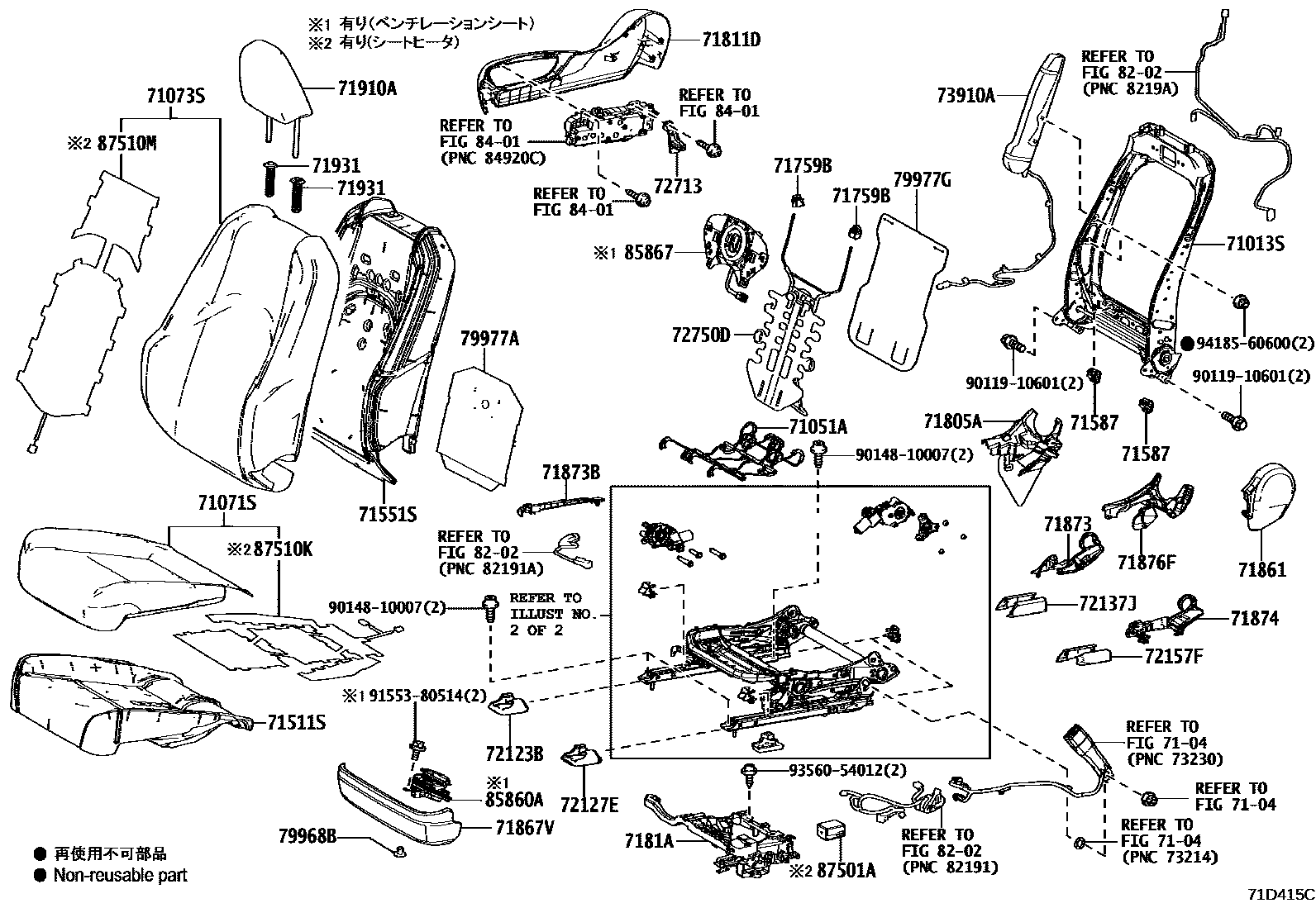

Toyota LEXUS UX300E — FRONT SEAT & SEAT TRACK
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
sub71013-33381
7104
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
CHATEAU,TRIM11
WHITE ASH,TRIM10,8#
BLACK,TRIM2#
OCHER,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
CHATEAU,TRIM11
WHITE ASH,TRIM10
WHITE ASH/BLUE,TRIM8#
BLACK,TRIM2#
OCHER,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759BHOOK, FRONT SEATBACK
71805ASHIELD SUB-ASSY, FRONT SEAT CUSHION, RH
BLACK,TRIM0#,1#,2#,4#,8#
71811DSHIELD, FRONT SEAT CUSHION, RH
BLACK,TRIM0#,1#,2#,4#,8#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
71861SHIELD, FRONT SEAT CUSHION, INNER RH
71867VSHIELD, FRONT SEAT CUSHION, FRONT RH
BLACK,TRIM0#,1#,2#,4#,8#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
BLACK,TRIM0#,1#,2#,4#,8#
71910AHEADREST ASSY, FRONT SEAT
CHATEAU,TRIM11
WHITE ASH,TRIM10
BLACK,TRIM2#
OCHER,TRIM4#
BLUE,TRIM8#
72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT
72127ECOVER, SEAT TRACK BRACKET, INNER FRONT
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
72157FCOVER, SEAT TRACK BRACKET, INNER REAR RH
72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
79968BCLIP
79977AFELT, SEATBACK
79977GFELT, FRONT SEATBACK, RH
8202
8401
85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-33030
87501ACONTROL SUB-ASSY, SEAT HEATER, RH
87510KHEATER ASSY, FRONT SEAT CUSHION, RH
87510MHEATER ASSY, FRONT SEATBACK, RH
9011910601
main90119-10601
9014810007
main90148-10007
9155380514
main91553-80514
9356054012
main93560-54012
9418560600
main94185-60600
42 parts on this diagram · 4 diagrams in section
