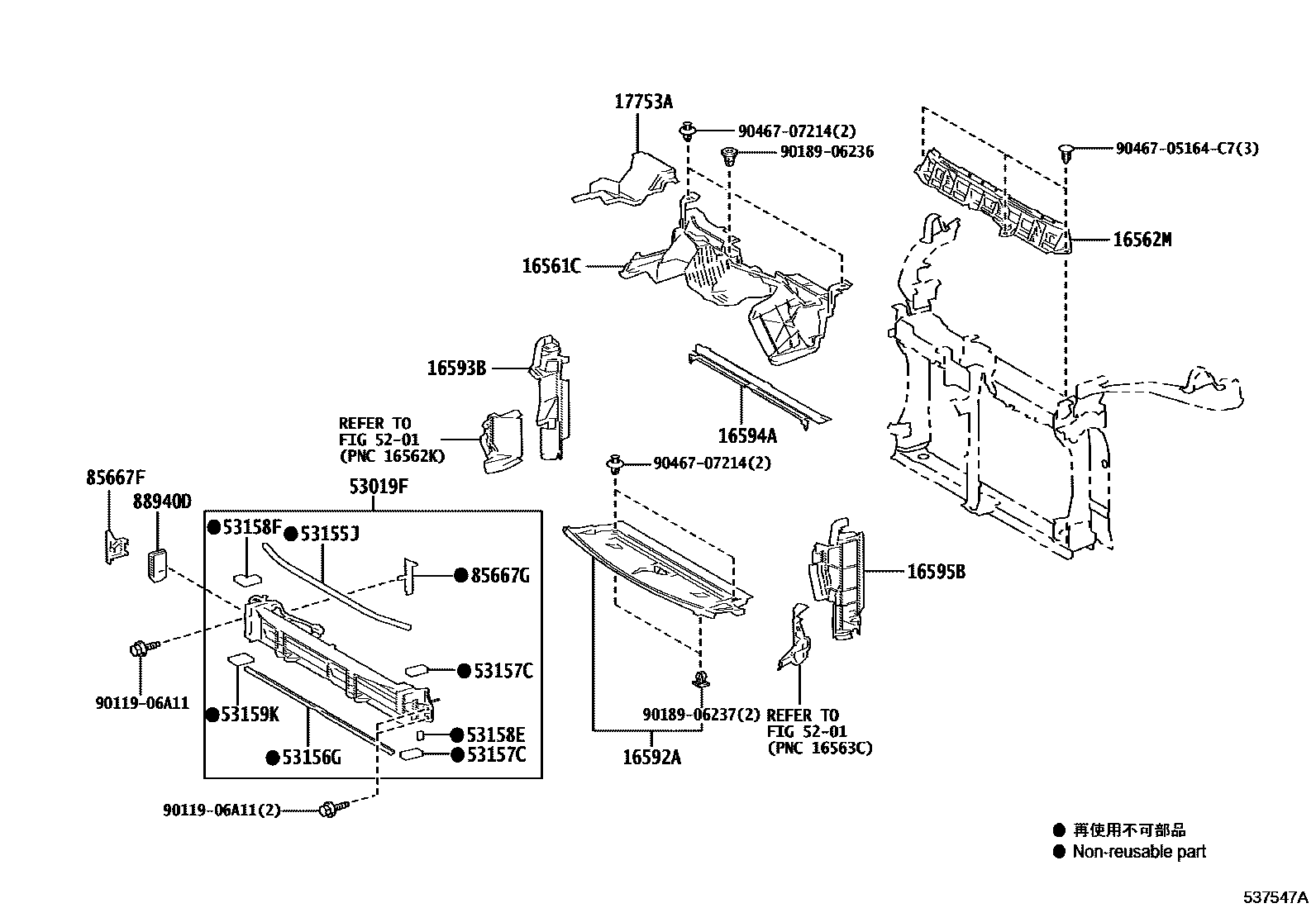

Toyota LEXUS UX300E — FRONT FENDER APRON & DASH PANEL

0001 1�������&��������������� 0002 1�������&��������������� 0003 1�����������&���������� 0004 1���������

16561CSEAL, RADIATOR TO SUPPORT, NO.1

main16561-24020i4KM..KMA10202102

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16561-10010i4KM..KMA10202102

16592AGUIDE, RADIATOR AIR, NO.3

main16592-10010i4KM..KMA10202102

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-10010i4KM..KMA10202102-202108

main16593-10040i4KM..KMA10202108

16594AGUIDE, RADIATOR AIR, NO.2

main16594-10010i4KM..KMA10202102

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-10010i4KM..KMA10202102-202108

main16595-10020i4KM..KMA10202108

17753AGUIDE, AIR

main17753-24010i4KM..KMA10202102

5201

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-76010iKMA10202102-202108

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-12100iKMA10202102-202108

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-12040iKMA10202102-202108

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-12010iKMA10202102-202108

53158ESEAL, RADIATOR GRILLE, NO.4

main53158-12010iKMA10202102-202108

53158FSEAL, RADIATOR GRILLE, NO.4

main53158-47010iKMA10202102-202108

53159KSEAL, RADIATOR GRILLE, NO.5

main53159-47030iKMA10202102-202108

85667FCOVER, MOTOR

main85667-42010iKMA10202102-202108

85667GCOVER, MOTOR

main85667-12010iKMA10202102-202108

88940DACTUATOR ASSY, SWING GRILLE

main88940-10010iKMA10202102-202108

sub88940-10011

9011906A11

main90119-06A11

9018906236

main90189-06236

9018906237

main90189-06237

9046705164C7

main90467-05164C7

9046707214

main90467-07214

23 parts on this diagram · 4 diagrams in section
