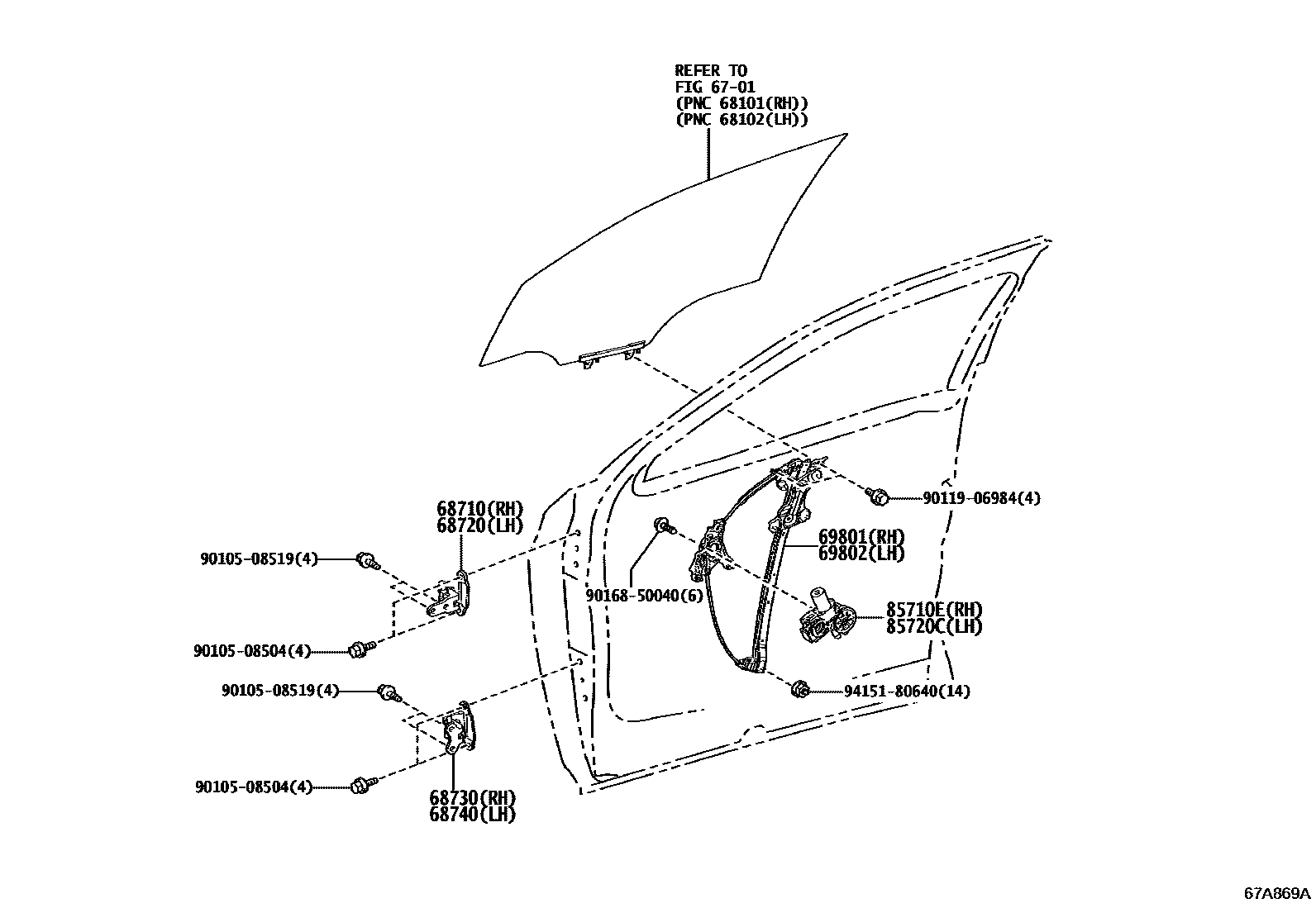

Toyota LEXUS UX300E — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-76020iKMA10202102

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-76020iKMA10202102

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-76020iKMA10202102

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-76020iKMA10202102

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-76010iKMA10202102-202104

sub69801-76011

main69801-76011iKMA10202105

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-76010iKMA10202102-202104

sub69802-76011

main69802-76011iKMA10202105

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-76020iKMA10202102

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-76020iKMA10202102

9010508504

main90105-08504

9010508519

main90105-08519

9011906984

main90119-06984

9016850040

main90168-50040

9415180640

main94151-80640

14 parts on this diagram · 1 diagram in section
