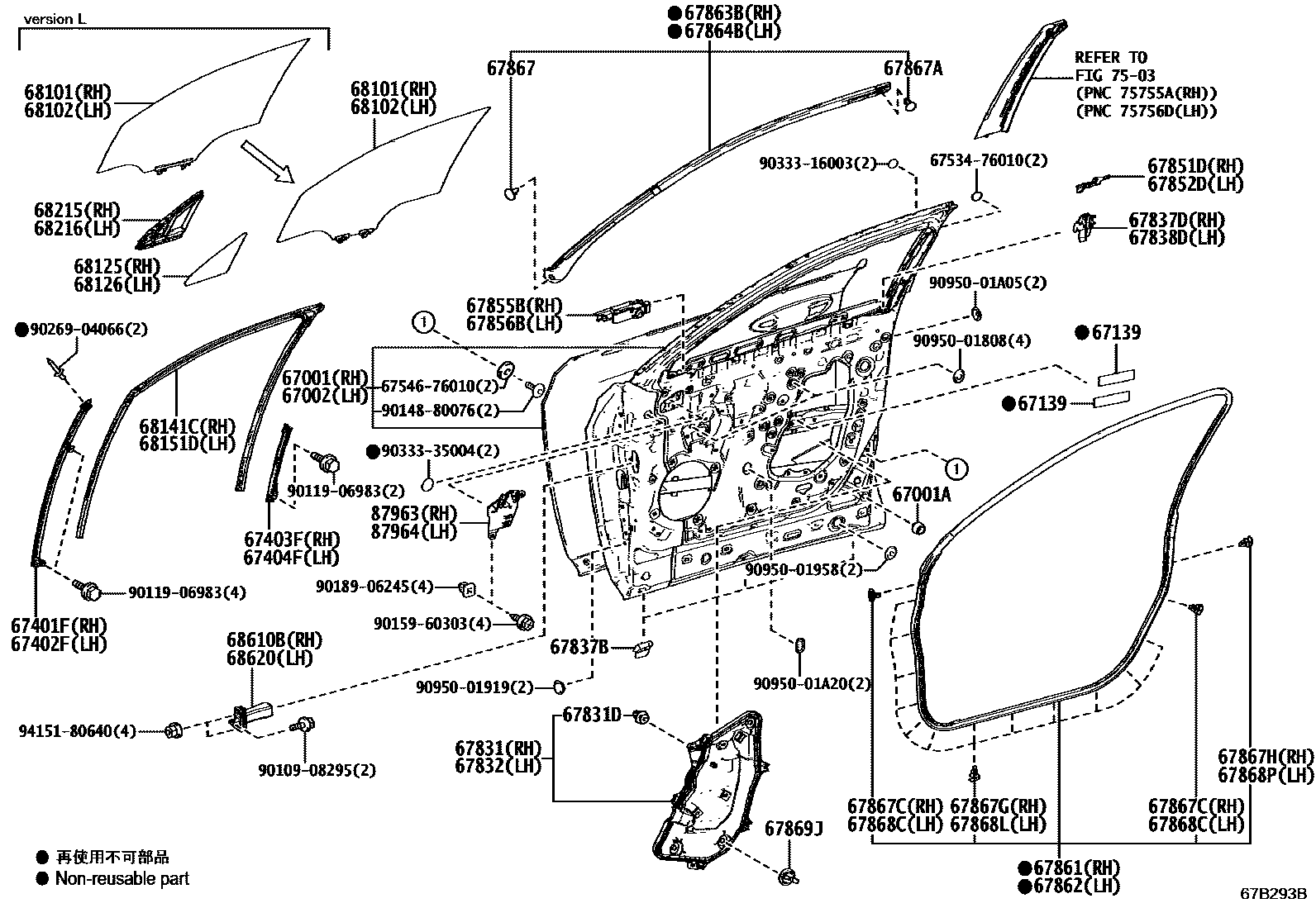

Toyota LEXUS UX300E — FRONT DOOR PANEL & GLASS

0001 1������� 0002 1������

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-79085iKMA10202102-202211

sub67001-79115

67001ACUSHION, FRONT DOOR PANEL

main90541-09150iKMA10202102

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-79085iKMA10202102-202211

sub67002-79115

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67139-76010iKMA10202102

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-76020iKMA10202102

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-76020iKMA10202102

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-76030iKMA10202102

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-76030iKMA10202102

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-76030iKMA10202102

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09233iKMA10202102

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-76030iKMA10202102

67837BSEAL, FRONT DOOR DUST PROOF

main67837-76030iKMA10202102

67837DSEAL, FRONT DOOR VENT, RH

main67837-76020iKMA10202102

67838DSEAL, FRONT DOOR VENT, LH

main67838-76010iKMA10202102

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-76010iKMA10202102

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-76010iKMA10202102

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-76010iKMA10202102

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-76010iKMA10202102

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-76020iKMA10202102

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-76020iKMA10202102

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-76020iKMA10202102

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-76020iKMA10202102

67867CLIP, DOOR WEATHERSTRIP

main67869-20030iKMA10202102

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67869-33030iKMA10202102

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-50130iKMA10202102

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-50090iKMA10202102

67867HRETAINER, DOOR WEATHERSTRIP, RH

main67867-50140iKMA10202102

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-50130iKMA10202102

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-50100iKMA10202102

67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH

main67867-50140iKMA10202102

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-50010iKMA10202102

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-76100iKMA10202102

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-76100iKMA10202102

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-76010iKMA10202102

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-76010iKMA10202102

68141CRUN, FRONT DOOR GLASS, RH

main68141-76030iKMA10202102

68151DRUN, FRONT DOOR GLASS, LH

main68151-76040iKMA10202102

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-76010iKMA10202102

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-76010iKMA10202102

68610BCHECK ASSY, FRONT DOOR, RH

main68610-76021iKMA10202102

sub68610-76022

68620CHECK ASSY, FRONT DOOR, LH

main68620-76021iKMA10202102-202208

sub68620-76031

main68620-76030iKMA10202208

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-76020iKMA10202102

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-76020iKMA10202102

6753476010SEAL, FRONT DOOR DIVISION BAR, LH NO.2

main67534-76010

6754676010CHANNEL, VENT WINDOW DRIP, RH

main67546-76010

9010908295

main90109-08295

9011906983

main90119-06983

9014880076

main90148-80076

9015960303

main90159-60303

9018906245

main90189-06245

9026904066

main90269-04066

9033316003

main90333-16003

9033335004

main90333-35004

9095001808

main90950-01808

9095001919

main90950-01919

9095001958

main90950-01958

9095001A05

main90950-01A05

9095001A20

main90950-01A20

9415180640

main94151-80640

60 parts on this diagram · 2 diagrams in section
