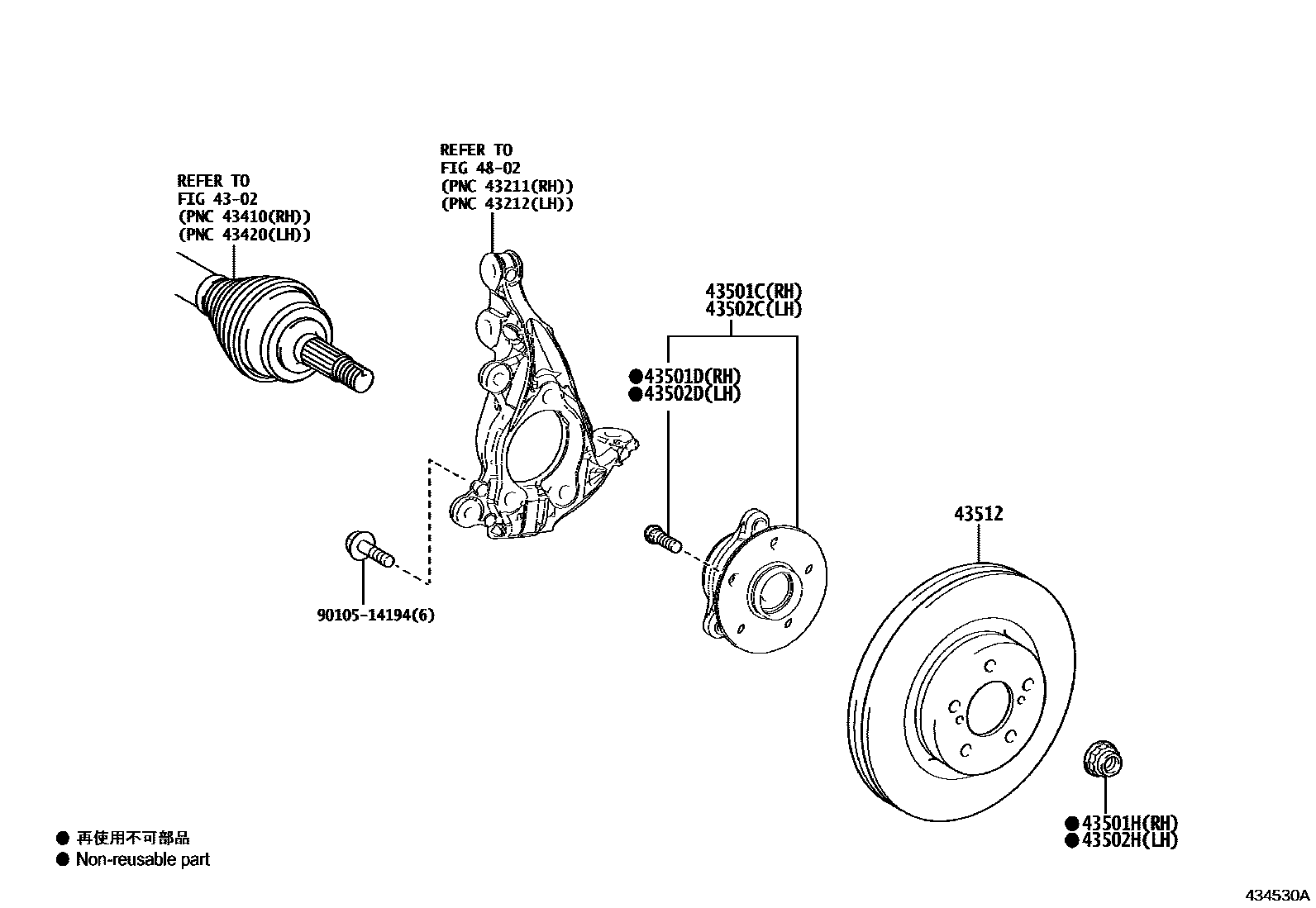

Toyota LEXUS UX300E — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-76010iKMA10202102

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKMA10202102

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKMA10202102

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-76010iKMA10202102

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iKMA10202102

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKMA10202102

43512DISC, FRONT

main43512-76010iKMA10202102

4802

9010514194

main90105-14194

10 parts on this diagram · 1 diagram in section
