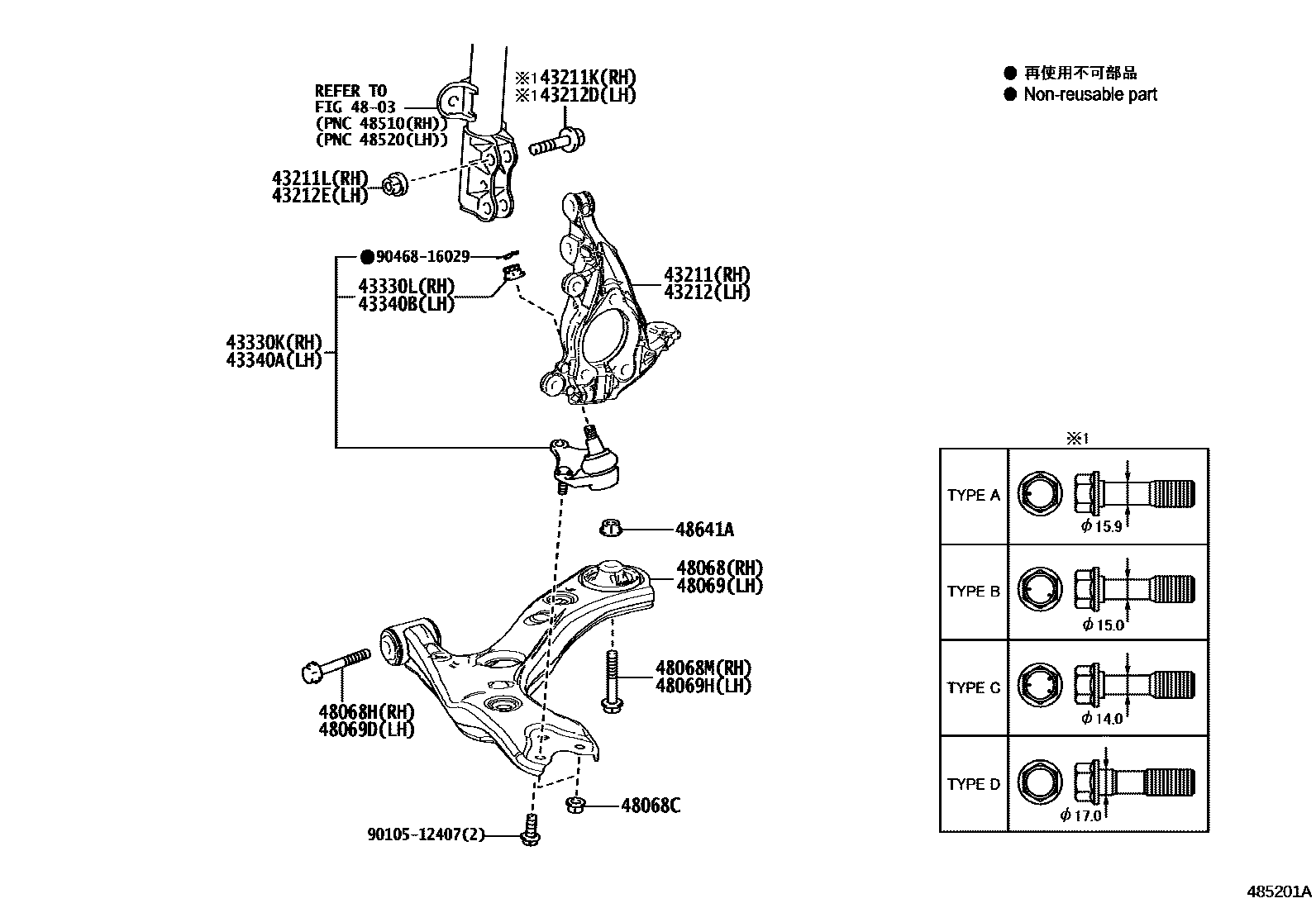

Toyota LEXUS UX300E — FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-10130iKMA10202102

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iKMA10202102

main90105-17014iKMA10202102

main90105-17015iKMA10202102

main90105-17021iKMA10202102

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iKMA10202102

43212KNUCKLE, STEERING, LH

main43212-10110iKMA10202102

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iKMA10202102

main90105-17014iKMA10202102

main90105-17015iKMA10202102

main90105-17021iKMA10202102

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iKMA10202102

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49215iKMA10202102

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iKMA10202102

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49215iKMA10202102

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iKMA10202102

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-76010iKMA10202102

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12019iKMA10202102

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16091iKMA10202102

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iKMA10202102

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-76010iKMA10202102

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16091iKMA10202102

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iKMA10202102

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iKMA10202102

9010512407

main90105-12407

9046816029

main90468-16029

21 parts on this diagram · 1 diagram in section
