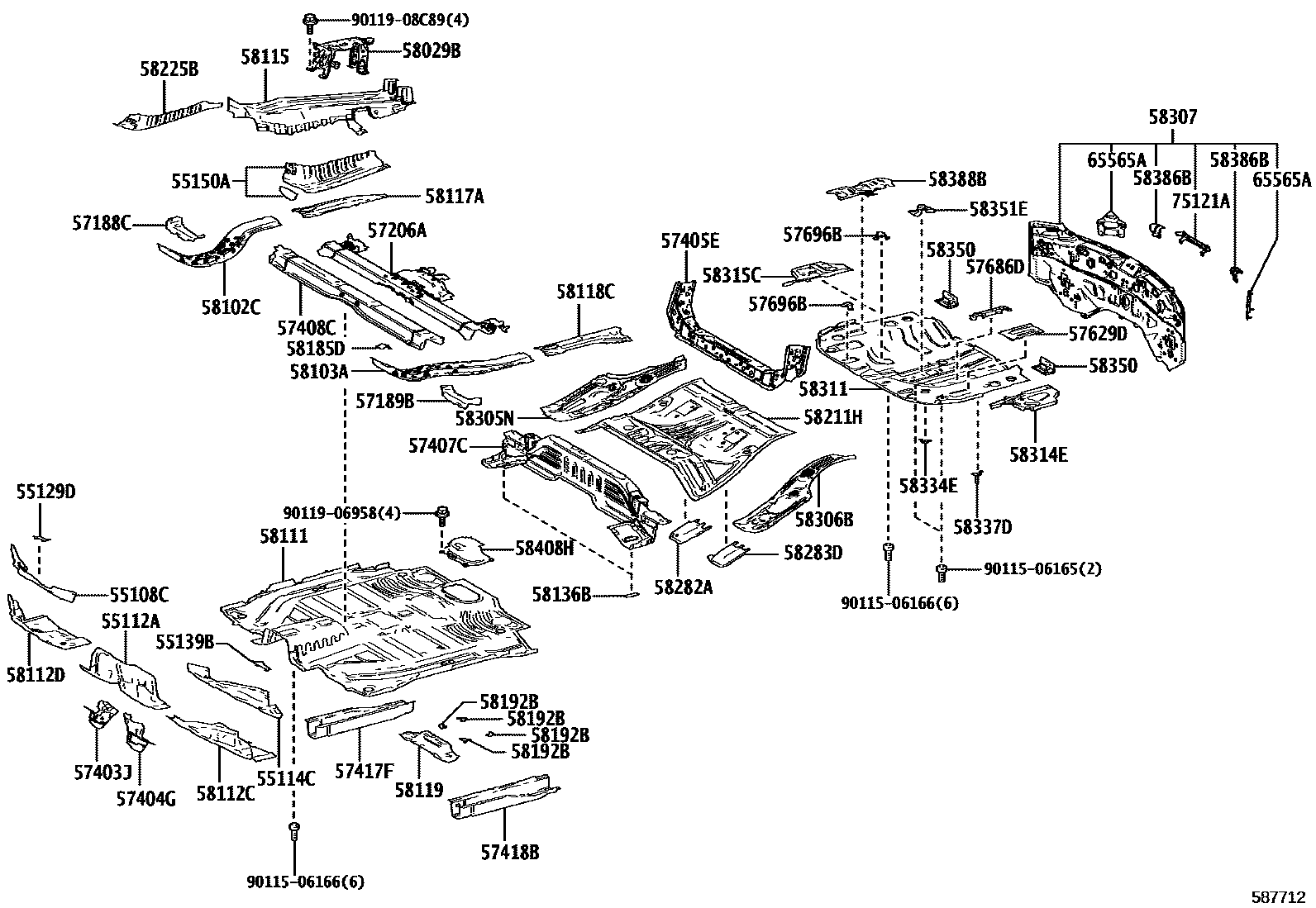

Toyota LEXUS UX300E — FLOOR PAN & LOWER BACK PANEL

55108CBRACE SUB-ASSY, DASH TO FRAME, RH

main55108-76010iKMA10202102

55112APANEL, DASH, NO.2

main55112-76010iKMA10202102

55114CPANEL, DASH, LOWER LH

main55114-47050iKMA10202102

55129DCOVER, DASH PANEL HOLE, RH

main55129-47021iKMA10202102

55139BCOVER, DASH PANEL HOLE, LH

main55139-47021iKMA10202102

55150ABRACKET ASSY, PEDAL

main55150-76020iKMA10202102

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-76020iKMA10202102

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-76010iKMA10202102

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57052-76010iKMA10202102

57403JREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH

main57403-76010iKMA10202102

57404GREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH

main57404-76010iKMA10202102

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-47011iKMA10202102

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-76010iKMA10202102

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57051-76010iKMA10202102

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-76010iKMA10202102

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-76010iKMA10202102

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-12070iKMA10202102

57686DBRACKET, REAR FLOOR MOUNTING, NO.1 LH

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

58029BBASE SUB-ASSY, FLOOR SHIFT LEVER

main58029-76020iKMA10202102

sub58029-76021

58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH

main58102-76010iKMA10202102

58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH

main58103-76010iKMA10202102

58111PAN, FRONT FLOOR

main58111-76030iKMA10202102

58112CPAN, FRONT FLOOR, LH

main58113-76020iKMA10202102

58112DPANEL, FRONT FLOOR, FRONT NO.2

main58112-76020iKMA10202102

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main57045-76010iKMA10202102

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-76010iKMA10202102

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-76010iKMA10202102

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-76010iKMA10202102

58136BCOVER, CENTER FLOOR HOLE

main58136-12040iKMA10202102

58185DPLATE, ACCELERATOR PEDAL MOUNTING

main58185-76020iKMA10202102

58192BPLATE, FRONT FLOOR, REAR

main58192-76050iKMA10202102

58211HPAN, CENTER FLOOR

main58211-76010iKMA10202102

58225BPLATE, FRONT FLOOR SIDE, LOWER RH

main58225-76010iKMA10202102

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-76010iKMA10202102

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-76010iKMA10202102

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-12060iKMA10202102

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-12040iKMA10202102

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-76040iKMA10202102-202206

sub58307-76041

main58307-76041iKMA10202207

58311PAN, REAR FLOOR

main58311-47130iKMA10202102

58314EEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-76010iKMA10202102

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-76010iKMA10202102

58334EREINFORCEMENT, REAR FLOOR PART PANEL, NO.2

main58334-76010iKMA10202102

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-76010iKMA10202102

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-47010iKMA10202102

58351EBRACKET, SPARE WHEEL CLAMP

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020iKMA10202102

58388BBRACKET, PLATE REAR FLOOR

main58388-76010iKMA10202102

58408HCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58408-76050iKMA10202102

65565APATCH, SIDE PANEL REAR END, RH

75121ABRACKET, REAR LICENSE PLATE

main75121-76010iKMA10202102

9011506165

main90115-06165

9011506166

main90115-06166

9011906958

main90119-06958

9011908C89

main90119-08C89

55 parts on this diagram · 1 diagram in section
