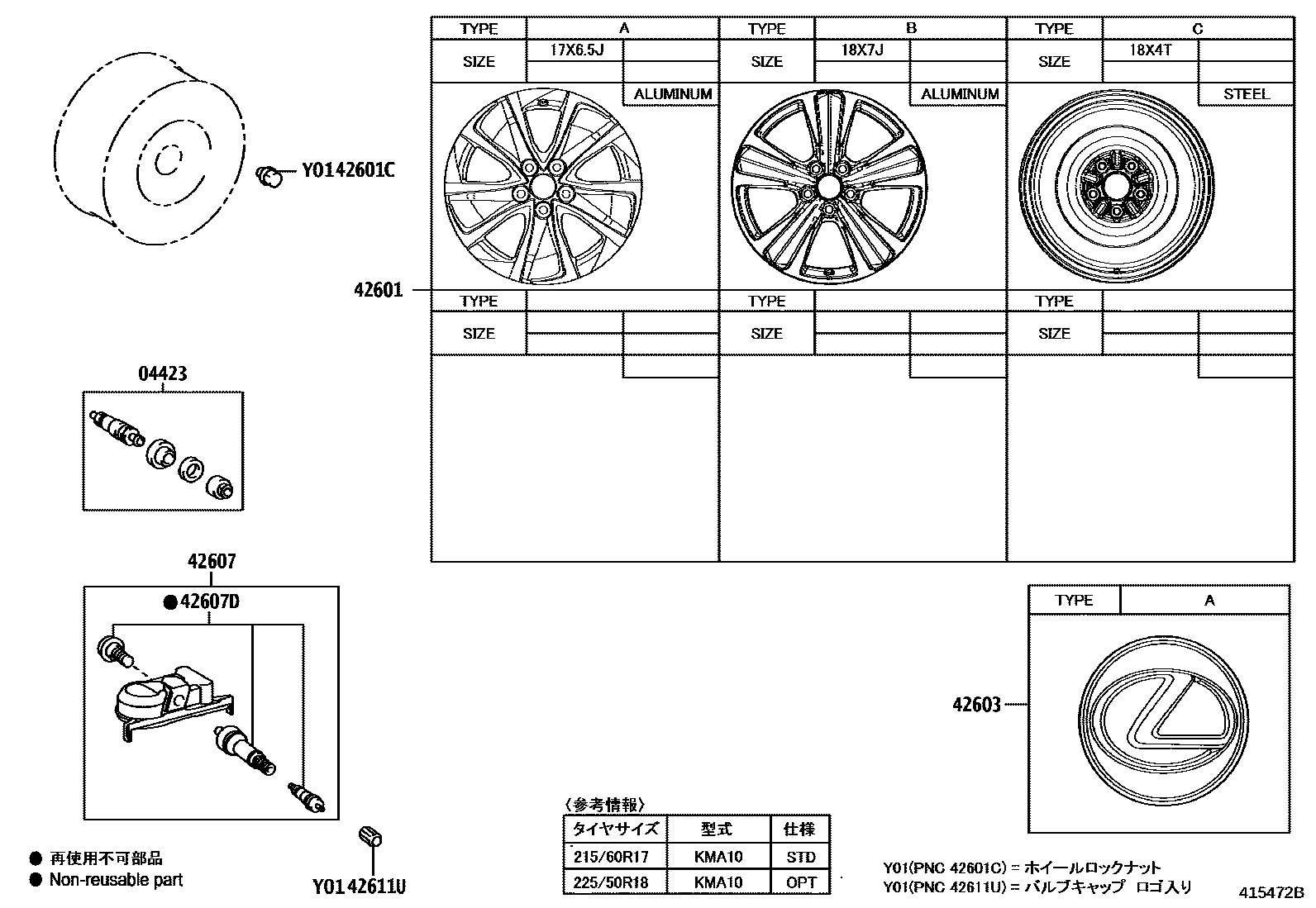

Toyota LEXUS UX300E — DISC WHEEL & WHEEL CAP

0001 1��������� & ������������� 0002 1���������

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iKMA10202102

42601WHEEL, DISC

main42611-76330iKMA10202102

42601CNUT, HUB (FOR AXLE)

main90942-01033iKMA10202102

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-50381iKMA10202102

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-53020iKMA10202102

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044iKMA10202102

42611UCAP, TIRE VALVE

main90942-05042iKMA10202102

7 parts on this diagram · 2 diagrams in section
