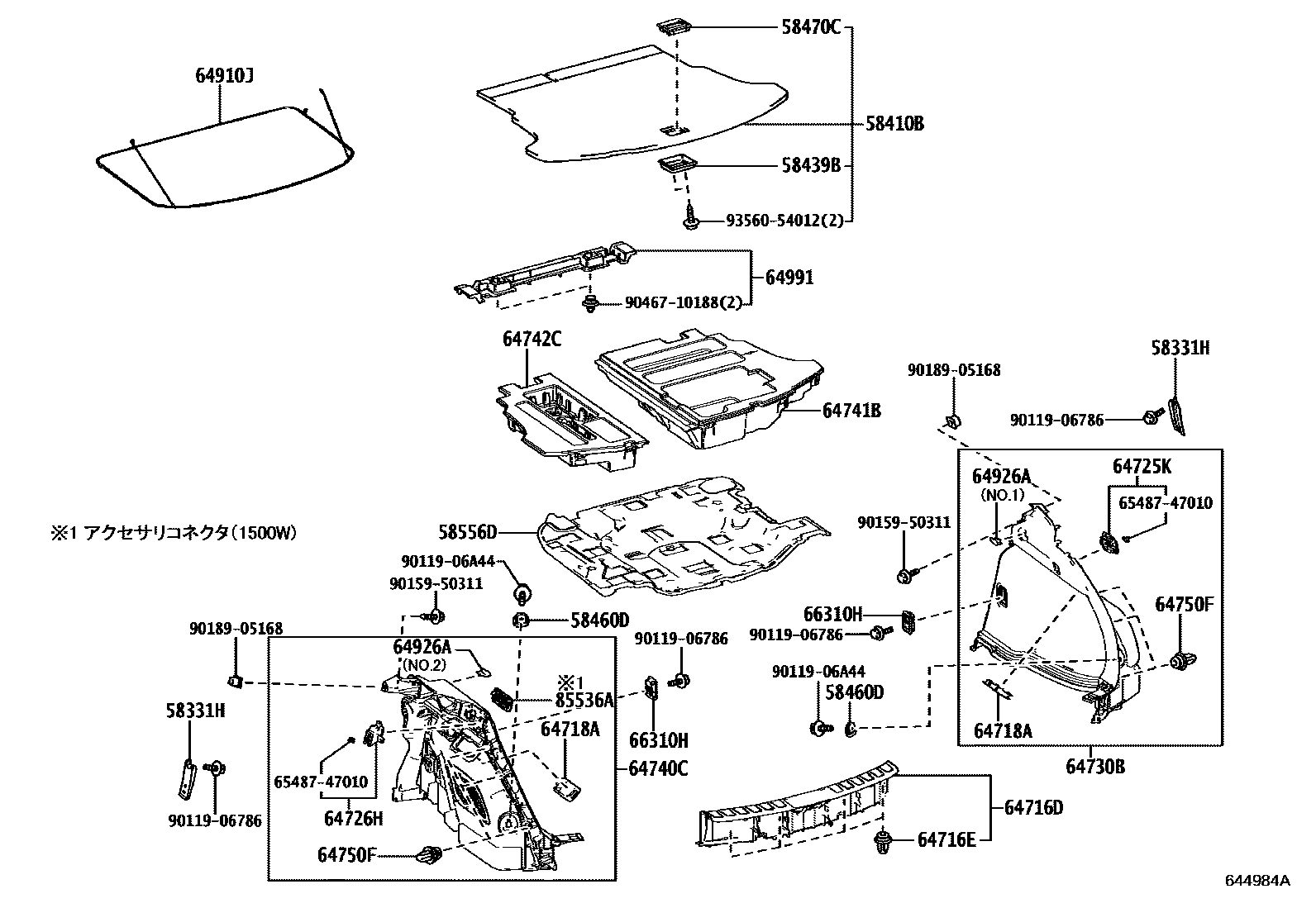

Toyota LEXUS UX300E — DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58410BBOARD ASSY, DECK
BLACK,TRIM0#,1#,2#,4#,8#
58439BPROTECTOR, DECK BOARD, NO.1
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM0#,1#,2#,4#,8#
58556DSILENCER, REAR FLOOR
sub5856A-76020
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM0#,1#,2#,4#,8#
64716ECLIP(FOR DECK TRIM REAR COVER)
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,4#,8#
64725KHOOK, DECK SIDE TRIM, NO.1
BLACK,TRIM0#,1#,2#,4#,8#
64726HHOOK, DECK SIDE TRIM, NO.2
BLACK,TRIM0#,1#,2#,4#,8#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,1#,2#,4#,8#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,1#,2#,4#,8#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64910JCOVER ASSY, TONNEAU
64991BOX, DECK FLOOR, FRONT
66310HHOOK ASSY, ROPE
85536ABEZEL, POWER OUTLET SOCKET
6548747010CLIP, CORNER PROTECTOR
main65487-47010
9011906786
main90119-06786
9011906A44
main90119-06A44
9015950311
main90159-50311
9018905168
main90189-05168
9046710188
main90467-10188
9356054012
main93560-54012
28 parts on this diagram · 1 diagram in section
