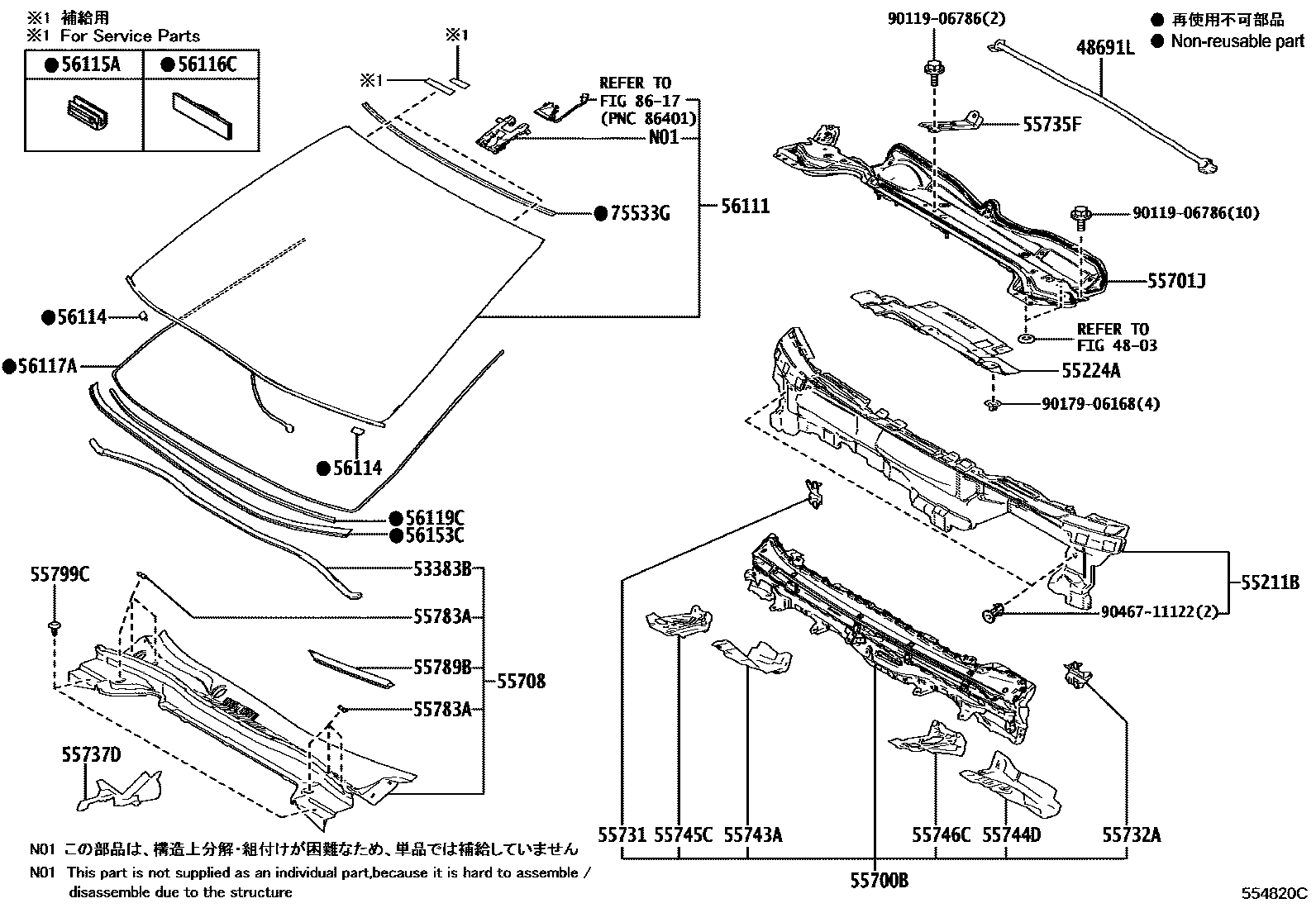

Toyota LEXUS UX300E — COWL PANEL & WINDSHIELD GLASS
4803
48691LDAMPER OR ROD, FRONT PERFORMANCE
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55731BRACKET, COWL BODY MOUNTING, UPPER RH
55732ABRACKET, COWL BODY MOUNTING, UPPER LH
55735FREINFORCEMENT, COWL BODY MOUNTING
55737DPLATE, WATER GUIDE, LH
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745CREINFORCEMENT, COWL TOP, INNER RH
55746CREINFORCEMENT, COWL TOP, INNER LH
55783APAD, COWL TOP SILENCER
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56119CSEAL, WINDSHIELD GLASS
56153CMOULDING, FRONT WINDOW, INNER CENTER
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
main90119-06786
9017906168
main90179-06168
9046711122
main90467-11122
31 parts on this diagram · 1 diagram in section
