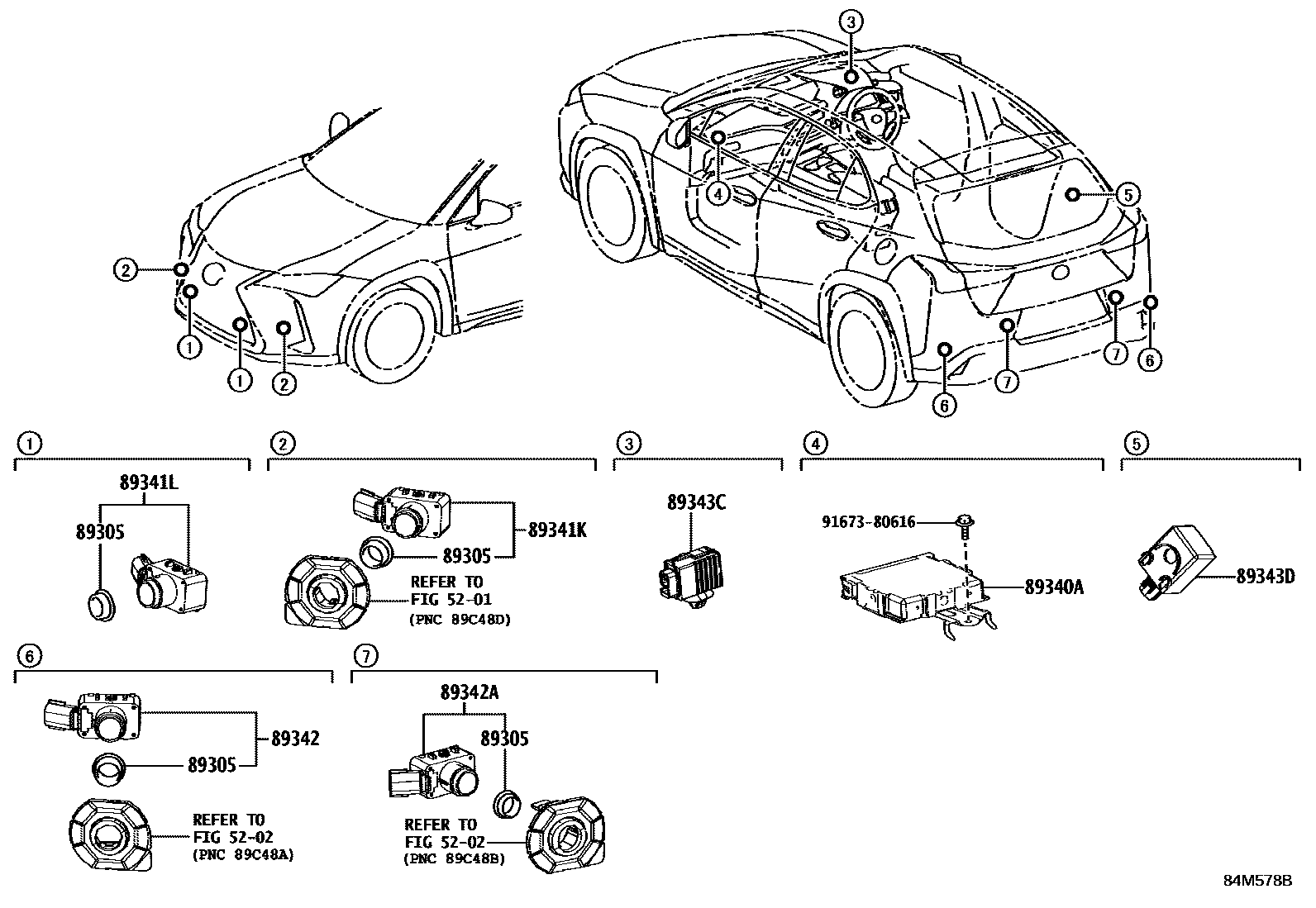

Toyota LEXUS UX300E — CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
BLACK,212
GRAPHITE BLACK GF.,223
AMBER CS.,4X2
TERRANE KHAKI M.M.,6X4
BLAZING CARNELIAN CONTRAS,4Y1
SONIC CHROME,1L1
CELESTIAL BLUE GF.,8Y6
MADDER RED,3T2
89341LSENSOR, ULTRASONIC, FRONT CENTER
MAT BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
BLACK,212
GRAPHITE BLACK GF.,223
AMBER CS.,4X2
TERRANE KHAKI M.M.,6X4
BLAZING CARNELIAN CONTRAS,4Y1
SONIC CHROME,1L1
CELESTIAL BLUE GF.,8Y6
MADDER RED,3T2
89342ASENSOR, ULTRASONIC, REAR CENTER
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC TITANIUM,1J7
PLATINUM SILVER ME.,1J4
BLACK,212
GRAPHITE BLACK GF.,223
AMBER CS.,4X2
TERRANE KHAKI M.M.,6X4
BLAZING CARNELIAN CONTRAS,4Y1
SONIC CHROME,1L1
CELESTIAL BLUE GF.,8Y6
MADDER RED,3T2
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
9167380616
main91673-80616
11 parts on this diagram · 1 diagram in section
