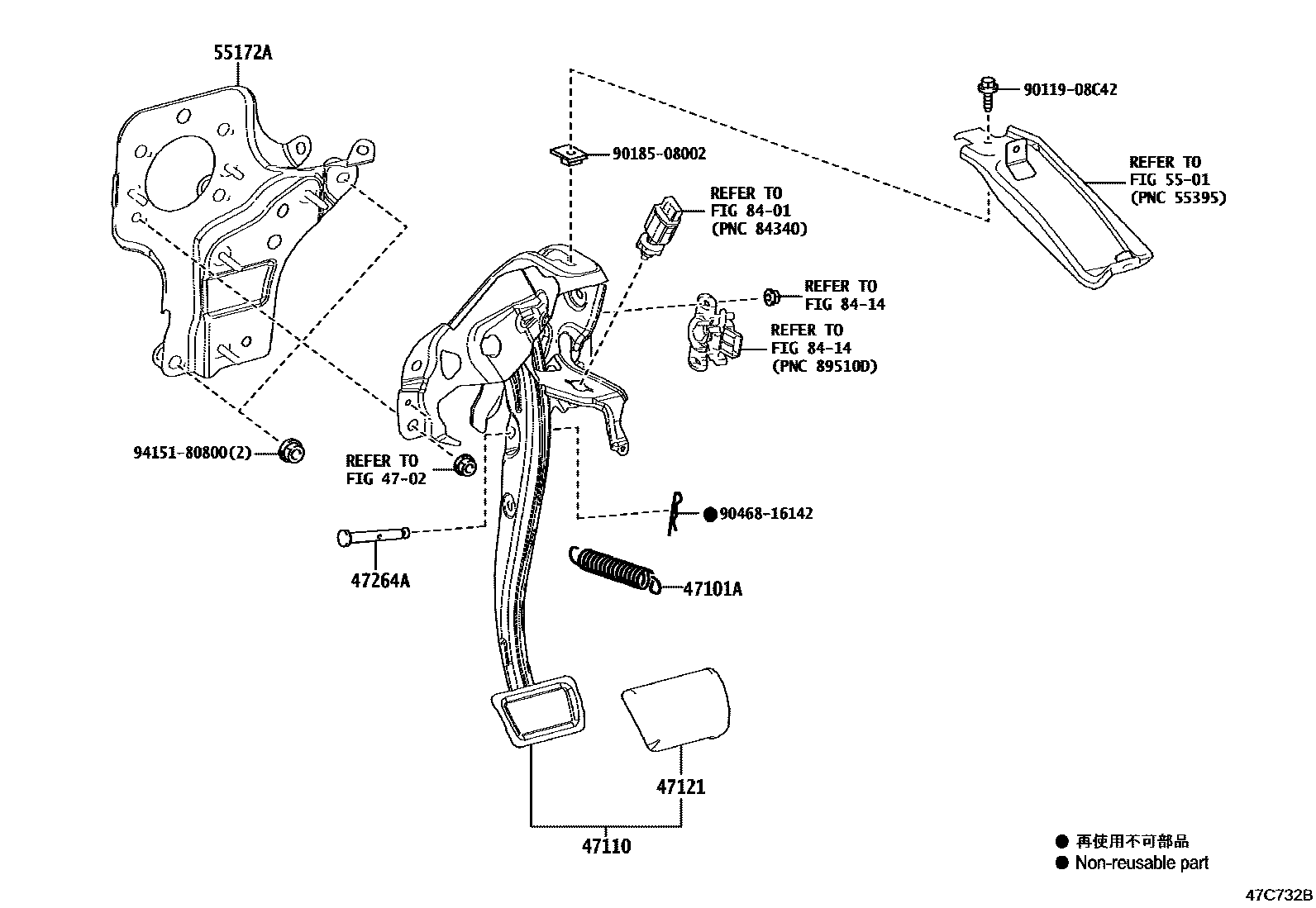

Toyota LEXUS UX300E — BRAKE PEDAL & BRACKET

4702

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15013iKMA10202102

47110SUPPORT ASSY, BRAKE PEDAL

main47110-47070iKMA10202102-202206

sub47110-76090

main47110-76090iKMA10202207

47121PAD, BRAKE PEDAL

main47121-16020iKMA10202207

main47121-47010iKMA10202102-202207

47264APIN(FOR PUSH ROD)

main90249-08309iKMA10202102

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12170iKMA10202102

8401

8414

9011908C42

main90119-08C42

9018508002

main90185-08002

9046816142

main90468-16142

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
