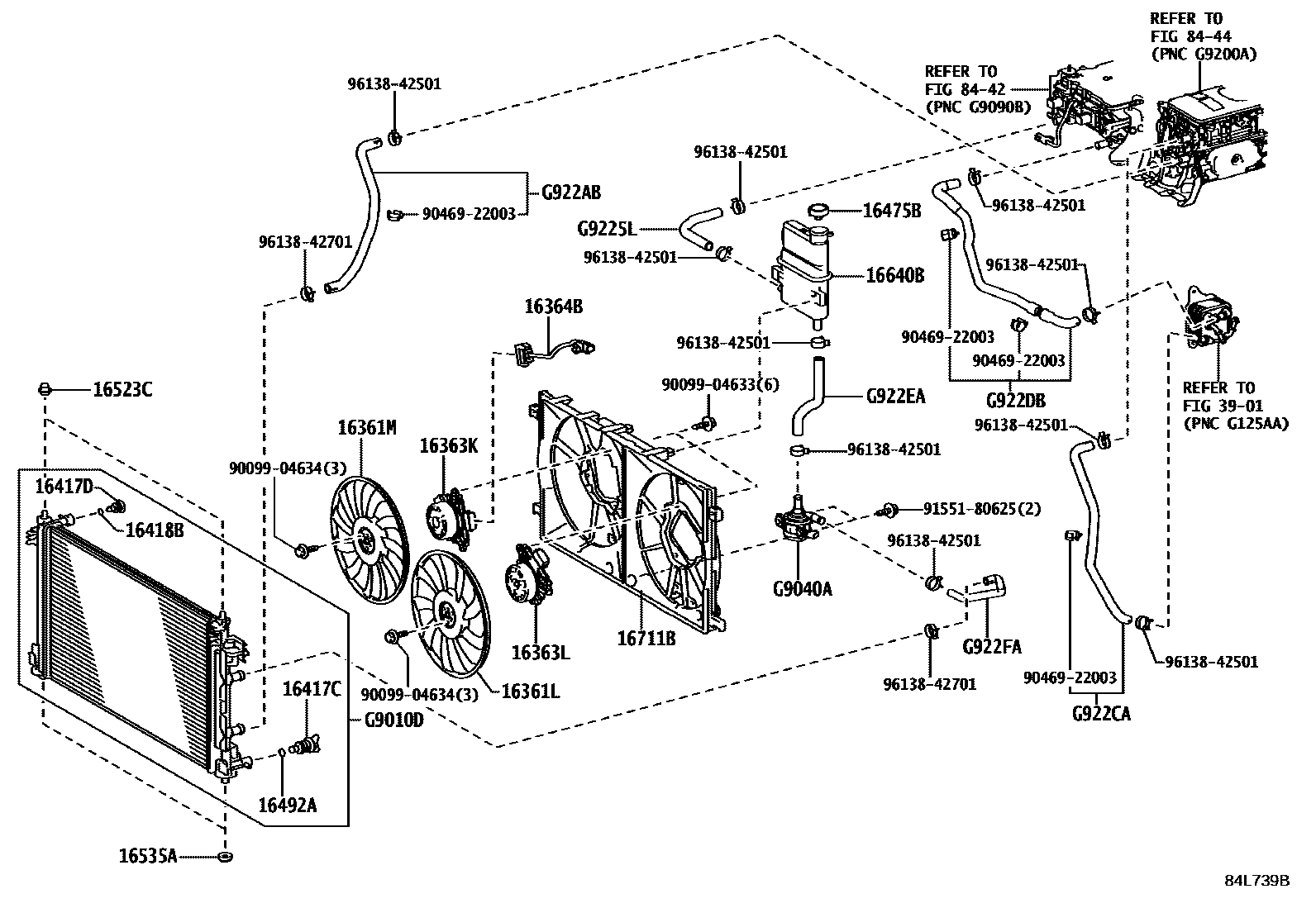

Toyota LEXUS UX300E — BEV COOLING

16361LFAN, LH

main16361-37100i4KM..KMA10202102

16361MFAN, RH

main16361-37110i4KM..KMA10202102

16363KMOTOR, COOLING FAN W/CONTROLLER, RH

main16363-47050i4KM..KMA10202102

16363LMOTOR, COOLING FAN W/CONTROLLER, LH

main16363-47060i4KM..KMA10202102

16364BWIRE, COOLING FAN

main16364-47010i4KM..KMA10202102

16417CCOCK, RADIATOR DRAIN, NO.1

main16417-21280i4KM..KMA10202102

16417DCOCK, RADIATOR DRAIN, NO.2

main16417-28530i4KM..KMA10202102

16418BPACKING(FOR RADIATOR DRAIN COCK)

main16418-20291i4KM..KMA10202102

16475BCAP, RESERVE TANK

main16475-28140i4KM..KMA10202102

16492ARING, O(FOR RADIATOR RESERVE TANK COCK)

main16492-21050i4KM..KMA10202102

16523CCUSHION, RADIATOR SUPPORT

main16523-37010i4KM..KMA10202102

16535ASUPPORT, RADIATOR, LOWER

main90480-40021i4KM..KMA10202102

16640BTANK ASSY, RADIATOR RESERVE

main16640-47020i4KM..KMA10202102

16711BSHROUD, FAN

main16711-10060i4KM..KMA10202102

3901

8442

8444

G9010DRADIATOR ASSY

mainG901076030iKMA10202102

G9040APUMP ASSY, WATER W/MOTOR

mainG904028020iKMA10202108

subG9040-48060

mainG904033050iKMA10202102-202107

G9225LHOSE, INVERTER COOLING, NO.1

mainG922576020iKMA10202102

G922ABHOSE, INVERTER COOLING INLET, NO.1

mainG922A76020iKMA10202102

G922CAHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C76010iKMA10202102

G922DBHOSE, EV COOLING OUTLET, NO.2

mainG922D76010iKMA10202102

G922EAHOSE, EV WATER PUMP INLET

mainG922E76020iKMA10202102

subG922E-76021

G922FAHOSE, EV WATER PUMP OUTLET, NO.1

mainG922F76020iKMA10202102

9009904633

main90099-04633

9009904634

main90099-04634

9046922003

main90469-22003

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

31 parts on this diagram · 1 diagram in section
