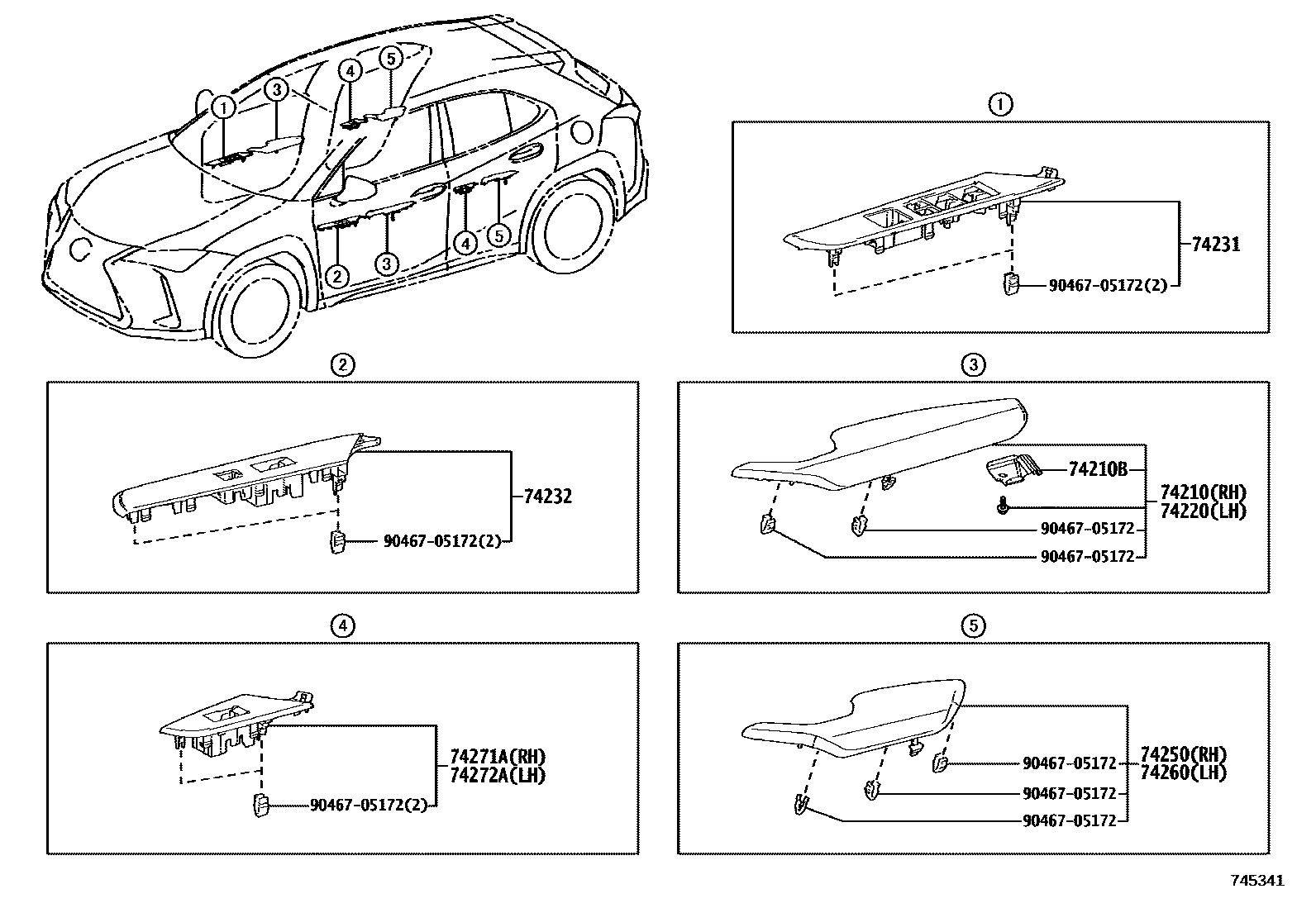

Toyota LEXUS UX300E — ARMREST & VISOR

0001 1������ 0002 1����� & ����������

74210ARMREST ASSY, FRONT, RH

main74210-76020-A0iKMA10202102

RICH CREAM,TRIM0#

main74210-76020-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74210-76020-B0iKMA10202102-202108

WHITE ASH,TRIM10,8#

main74210-76020-B1iKMA10202102-202108

CHATEAU,TRIM11

main74210-76020-C0iKMA10202102

BLACK,TRIM2#

main74210-76020-E1iKMA10202102

OCHER,TRIM4#

74210BBRACKET, ARMREST SET

main67645-76010iKMA10202102

main67646-76010iKMA10202102

74220ARMREST ASSY, FRONT, LH

main74220-76020-A0iKMA10202102

RICH CREAM,TRIM0#

main74220-76020-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74220-76020-B0iKMA10202102-202108

WHITE ASH,TRIM10,8#

main74220-76020-B1iKMA10202102-202108

CHATEAU,TRIM11

main74220-76020-C0iKMA10202102

BLACK,TRIM2#

main74220-76020-E1iKMA10202102

OCHER,TRIM4#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-76040iKMA10202102

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-76040iKMA10202102

74250ARMREST ASSY, REAR RH

main74250-76010-A0iKMA10202102

RICH CREAM,TRIM0#

main74250-76010-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74250-76010-B0iKMA10202102-202108

WHITE ASH,TRIM10,8#

main74250-76010-B1iKMA10202102-202108

CHATEAU,TRIM11

main74250-76010-C0iKMA10202102

BLACK,TRIM2#

main74250-76010-E1iKMA10202102

OCHER,TRIM4#

74260ARMREST ASSY, REAR LH

main74260-76010-A0iKMA10202102

RICH CREAM,TRIM0#

main74260-76010-B0iKMA10202102-202108

WHITE ASH,TRIM10,8#

main74260-76010-B0iKMA10202108

WHITE ASH,TRIM1#,8#

main74260-76010-B1iKMA10202102-202108

CHATEAU,TRIM11

main74260-76010-C0iKMA10202102

BLACK,TRIM2#

main74260-76010-E1iKMA10202102

OCHER,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-76020iKMA10202102

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-76020iKMA10202102

9046705172

main90467-05172

10 parts on this diagram · 2 diagrams in section
