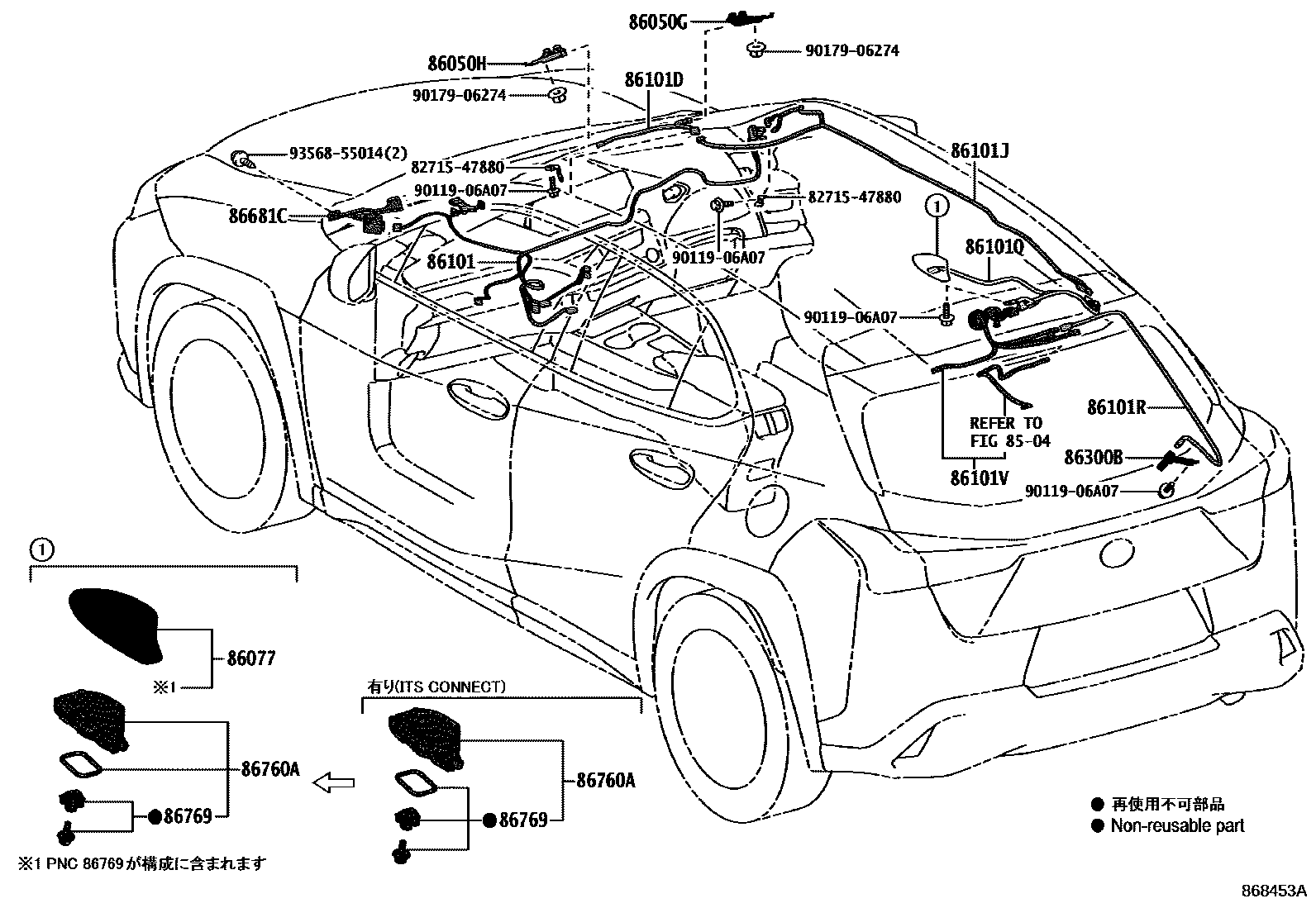

Toyota LEXUS UX300E — ANTENNA
8504
86050GANTENNA ASSY, TELEVISION, NO.1 RH
86050HANTENNA ASSY, TELEVISION, NO.1 LH
86077COVER KIT, ANTENNA
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC CHROME,1L1
BLACK,212
GRAPHITE BLACK GF.,223
MADDER RED,3T2
AMBER CS.,4X2
BLAZING CARNELIAN CONTRAS,4Y1
TERRANE KHAKI M.M.,6X4
CELESTIAL BLUE GF.,8Y6
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86101VCORD SUB-ASSY, ANTENNA, NO.6
86300BANTENNA ASSY, AMPLIFIER, NO.1
86681CDIVIDER, ANTENNA
86760AANTENNA ASSY, TELEPHONE
86769HOUSING, ROOF ANTENNA
8271547880BRACKET,WIRING HARNESS CLAMP
main82715-47880
9011906A07
main90119-06A07
9017906274
main90179-06274
9356855014
main93568-55014
18 parts on this diagram · 1 diagram in section
