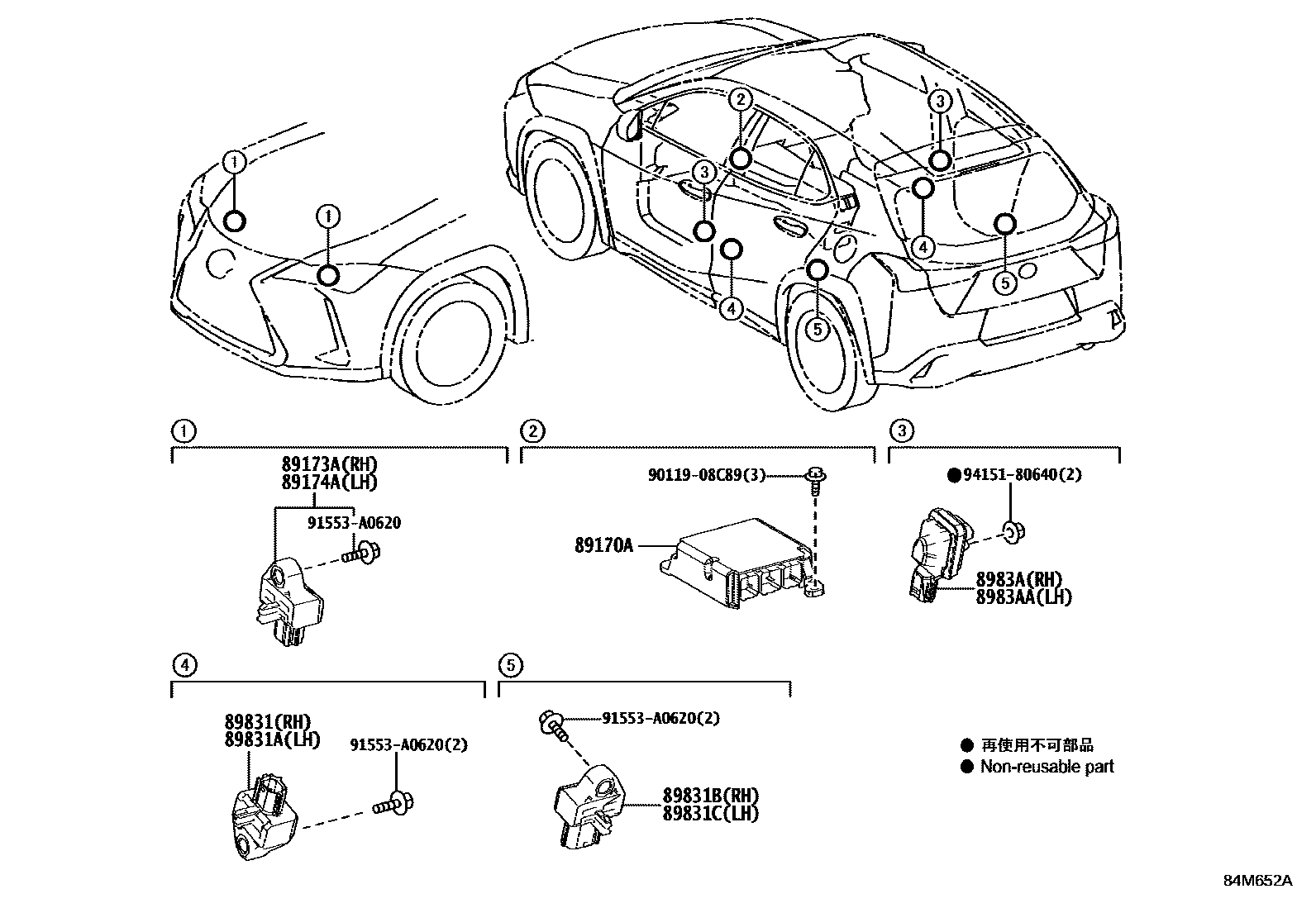

Toyota LEXUS UX300E — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
89831ASENSOR, SIDE AIRBAG, LH, NO.1
89831BSENSOR, SIDE AIRBAG, RH, NO.2
89831CSENSOR, SIDE AIRBAG, LH, NO.2
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
9011908C89
main90119-08C89
91553A0620
main91553-A0620
9415180640
main94151-80640
12 parts on this diagram · 1 diagram in section
