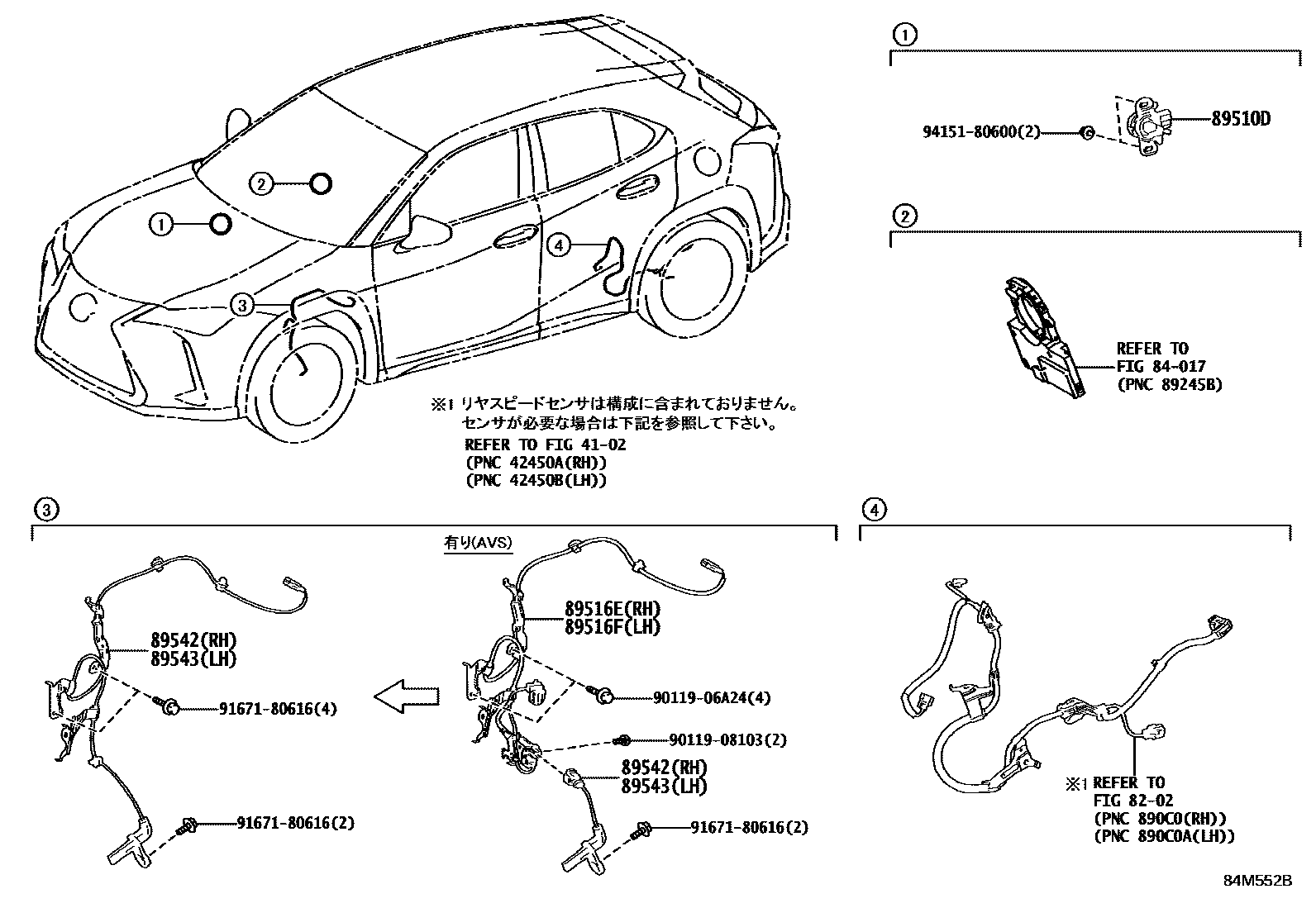

Toyota LEXUS UX300E — ABS & VSC

4102

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iKMA10202102

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-76030iKMA10202102-202108

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-76040iKMA10202102-202108

89542SENSOR, SPEED, FRONT RH

main89542-12140iKMA10202102-202108

main89542-76010iKMA10202108

89543SENSOR, SPEED, FRONT LH

main89543-12140iKMA10202102-202108

main89543-76010iKMA10202108

9011906A24

main90119-06A24

9011908103

main90119-08103

9167180616

main91671-80616

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
