Toyota LEXUS TX SERIES — ELECTRONIC MODULATED SUSPENSION

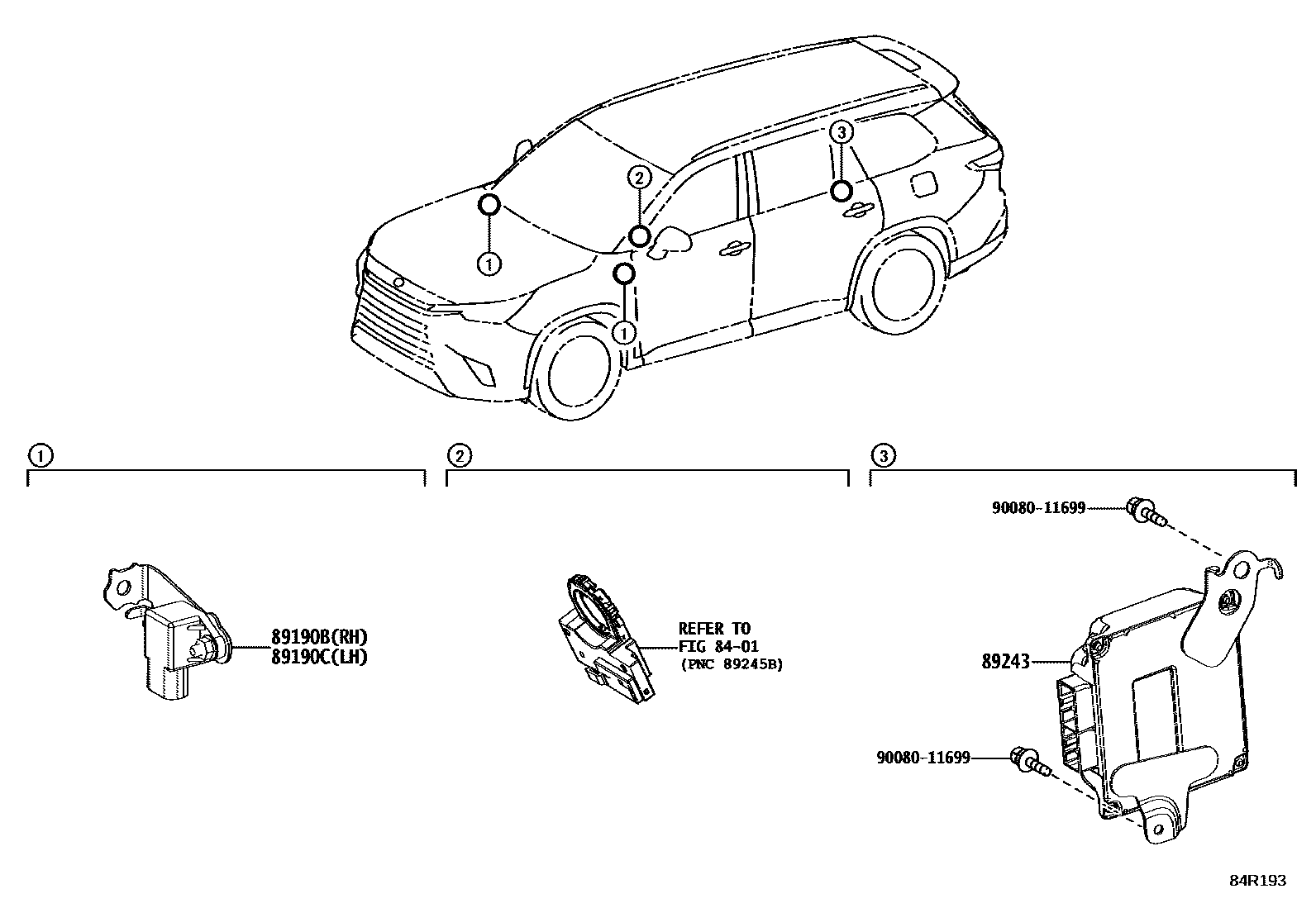

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190BSENSOR ASSY, ACCELERATION, RH

main89190-78030i202309

89190CSENSOR ASSY, ACCELERATION, LH

main89190-78040i202309

89243COMPUTER, ABSORBER CONTROL

main89243-48110i202309-202412

main89243-48111i202412

9008011699

main90080-11699

5 parts on this diagram · 1 diagram in section

ELECTRONIC MODULATED SUSPENSION for Toyota LEXUS TX SERIES

This section contains 5 genuine Toyota parts for the ELECTRONIC MODULATED SUSPENSION system of the Toyota LEXUS TX SERIES. Key components include: SWITCH & RELAY & COMPUTER, SENSOR ASSY, ACCELERATION, RH, SENSOR ASSY, ACCELERATION, LH, COMPUTER, ABSORBER CONTROL.
