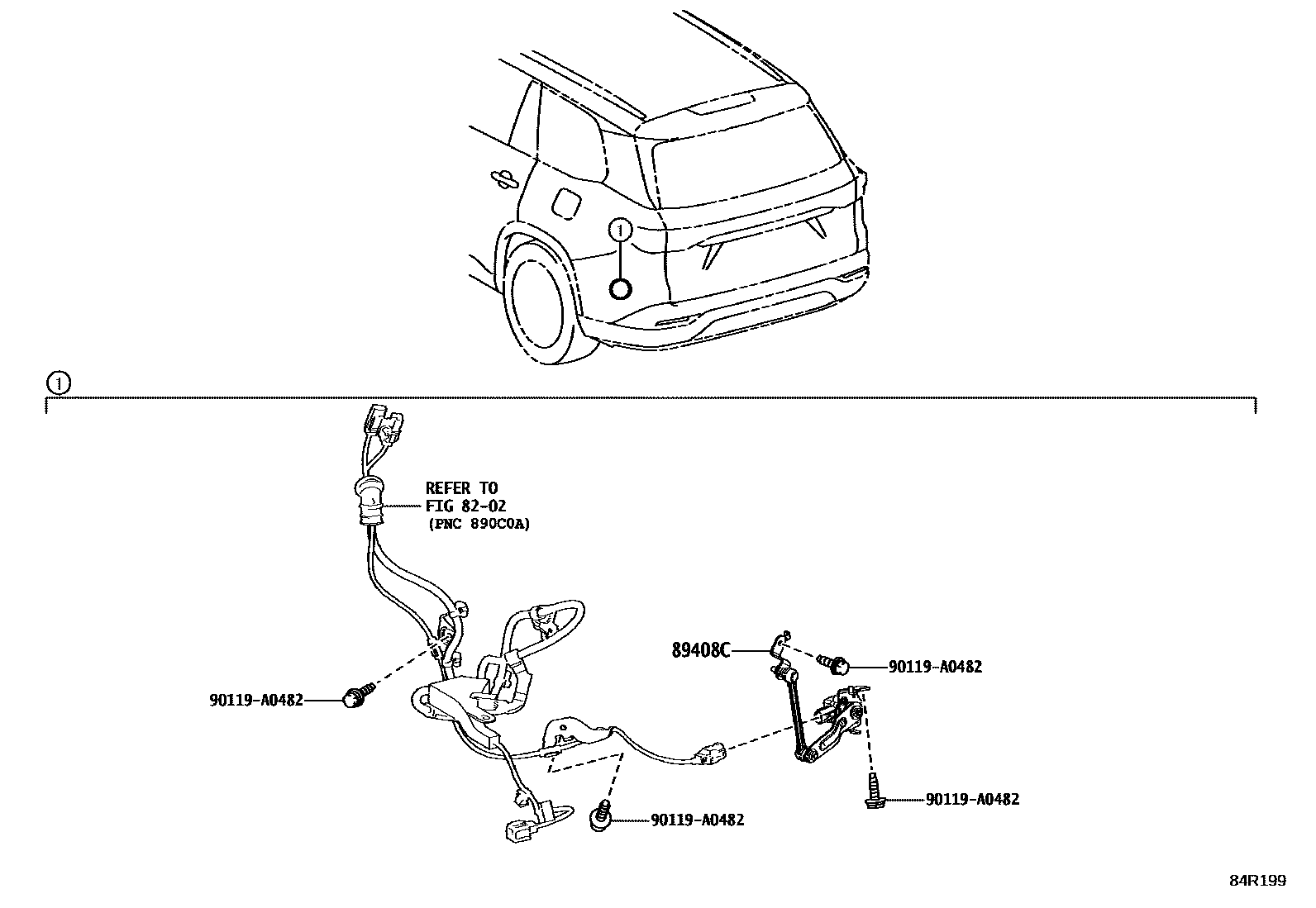

Toyota LEXUS TX SERIES — ELECTRONIC HEIGHT CONTROL

8202WIRING & CLAMP

→ Go to FIG 82-02

89408CSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-0E030i202309

HEADLAMP LIGHT CONTROL-WITH

90119A0482

main90119-A0482

3 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota LEXUS TX SERIES

This section contains 3 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota LEXUS TX SERIES. Key components include: WIRING & CLAMP, SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH.
