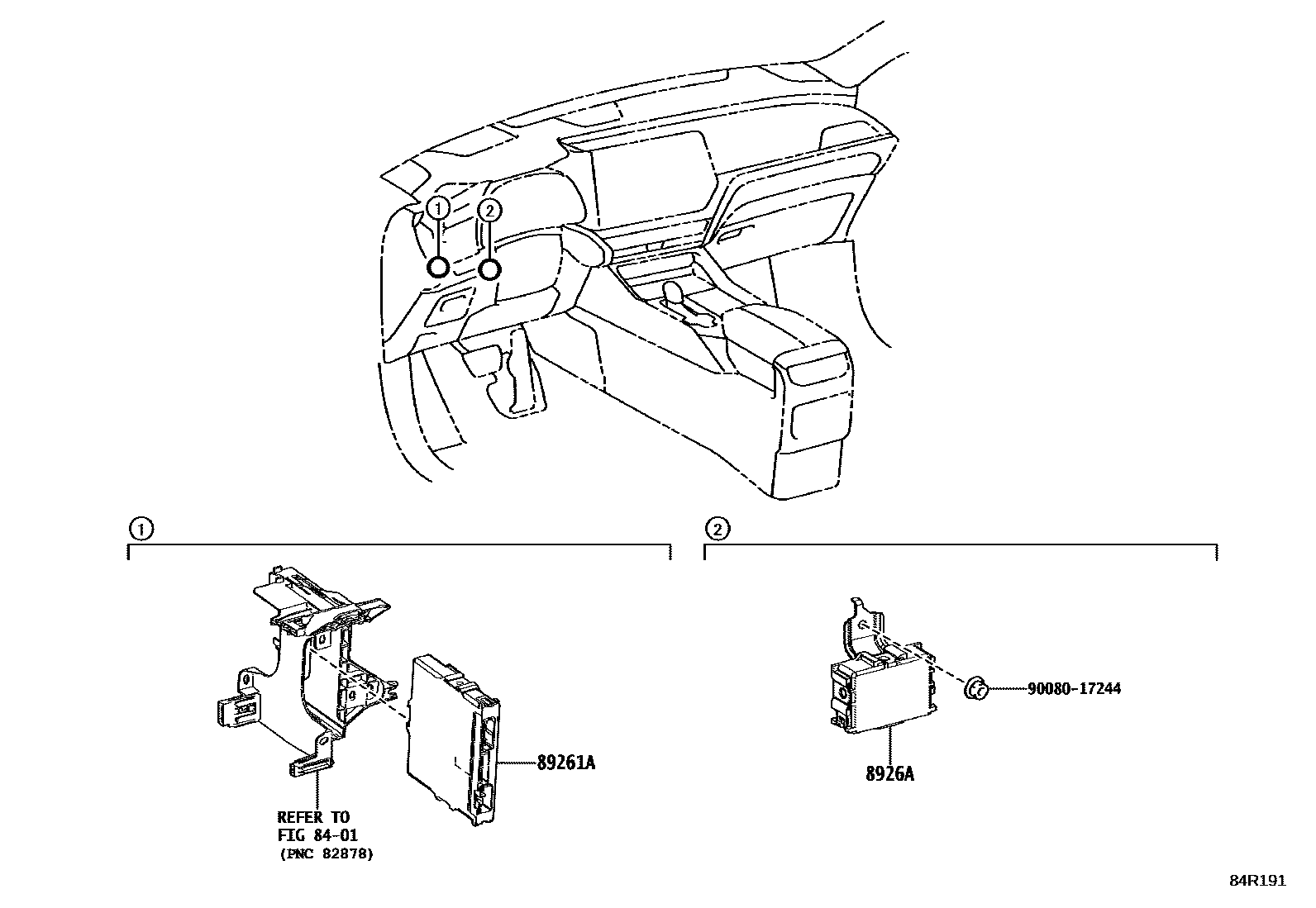

Toyota LEXUS TX SERIES — ECO-RUN SYSTEM

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89261ACOMPUTER, ENGINE STOP AND START

main89261-0E120i202309

*614

8926AFILTER, ENGINE STOP & START SOLENOID

main8926A-0E050i202309

9008017244

main90080-17244

4 parts on this diagram · 1 diagram in section

ECO-RUN SYSTEM for Toyota LEXUS TX SERIES

This section contains 4 genuine Toyota parts for the ECO-RUN SYSTEM system of the Toyota LEXUS TX SERIES. Key components include: SWITCH & RELAY & COMPUTER, COMPUTER, ENGINE STOP AND START, FILTER, ENGINE STOP & START SOLENOID.
