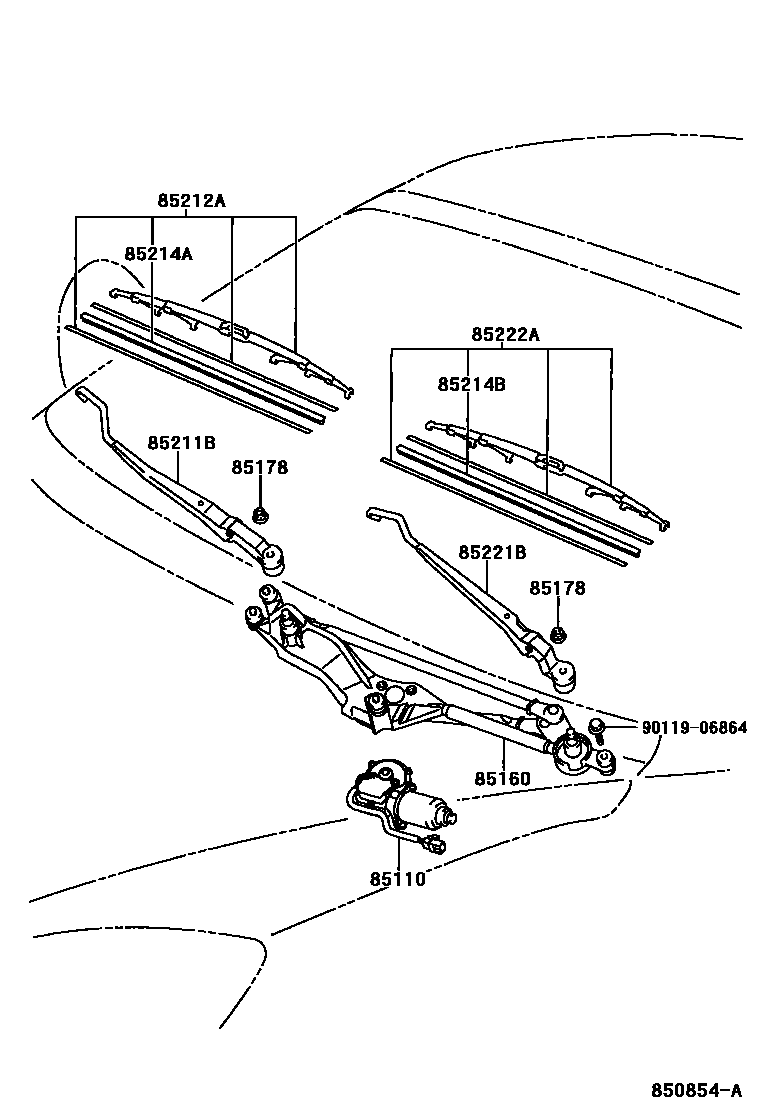

Toyota LEXUS SC430 — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-24080iUZZ40200101-200508

85160LINK ASSY, WINDSHIELD WIPER

main85150-24080iUZZ40200101-200508

main85150-24081iUZZ40200608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iUZZ40200101-200508

85211BARM, FRONT WIPER, RH

main85211-24100iUZZ40200101-200508

main85211-24101iUZZ40200608

85212ABLADE, FR WIPER, RH

main85212-24080iUZZ40..5FC200101-200110

main85212-24120iUZZ40200608-201007

sub85212-53081

main85212-53060iUZZ40200110-200508

main85212-53061iUZZ40200606-200608

85214ARUBBER, WIPER, RH

main85214-24050iUZZ40200101-200508

main85214-24051iUZZ40200606-200608

main85214-53090iUZZ40200608

85214BRUBBER, WIPER, LH

main85214-30380iUZZ40200608

main85214-50100iUZZ40200508-200608

85221BARM, FRONT WIPER, LH

main85221-24100iUZZ40200101-200508

main85221-24101iUZZ40200608

85222ABLADE, FR WIPER, LH

main85222-24080iUZZ40200101-200508

main85222-24110iUZZ40200608-201007

9011906864

main90119-06864

10 parts on this diagram · 1 diagram in section
