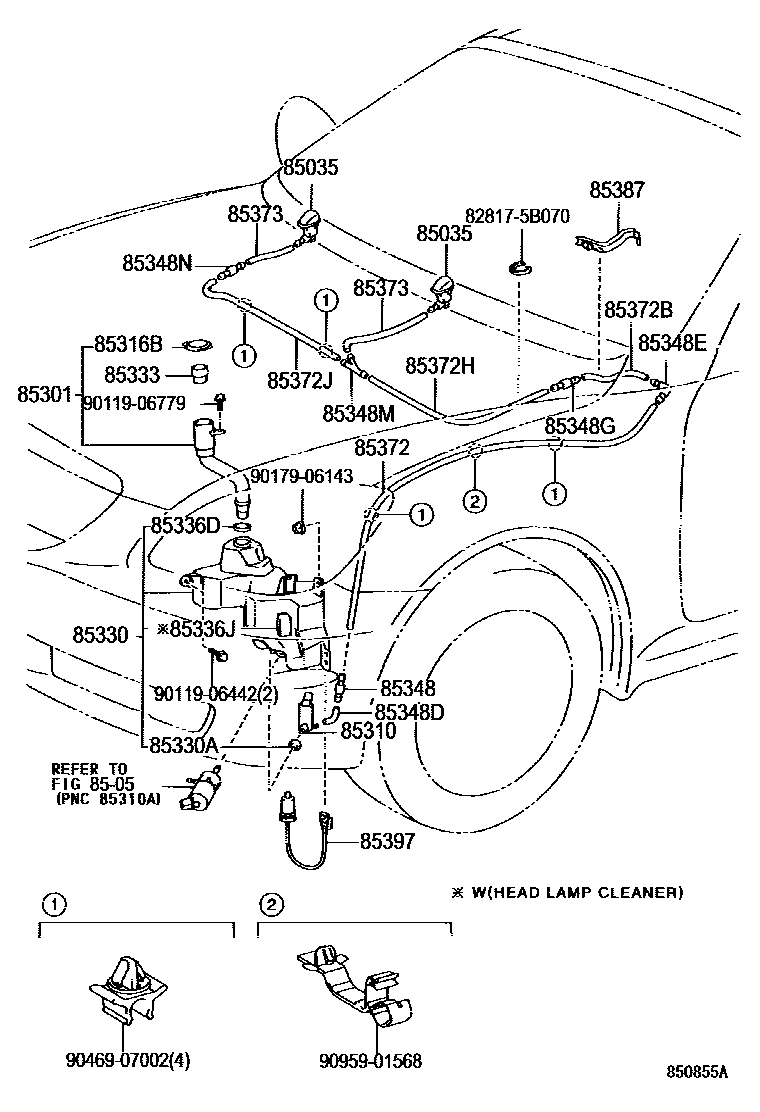

Toyota LEXUS SC430 — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211
sub85381-24030
PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME.,8Q6
sub85381-24030
WHITE PEARL CS.,077
PREMIUM SILVER,1F2
DK.GRAY MC.,1G0
BLACK,212
BLACKISH RED MC.,3P6
RED MC.CS.,3R1
SHELL M.M.,3R4
PREMIUM BROWN,4T2
BEIGE ME.,4T1
DK.BLUE MC. CC.,8U0
BLUE M.M.,8U4
WHITE PEARL CS.,065
SUPER RED 5,202 ,3P0
SUPER RED 5,3P0
DK.BLUE M.M.,8P4
NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2
8505
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85316BCAP, WASHER, INLET
85330ABUSH, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1600
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=200)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=580)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=560)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=170)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85397SWITCH ASSY,LEVEL WARNING
828175B070PROTECTOR, WIRING HARNESS, NO.1
main82817-5B070
9011906442
main90119-06442
9011906779
main90119-06779
9017906143
main90179-06143
9046907002
main90469-07002
9095901568
main90959-01568
29 parts on this diagram · 1 diagram in section
