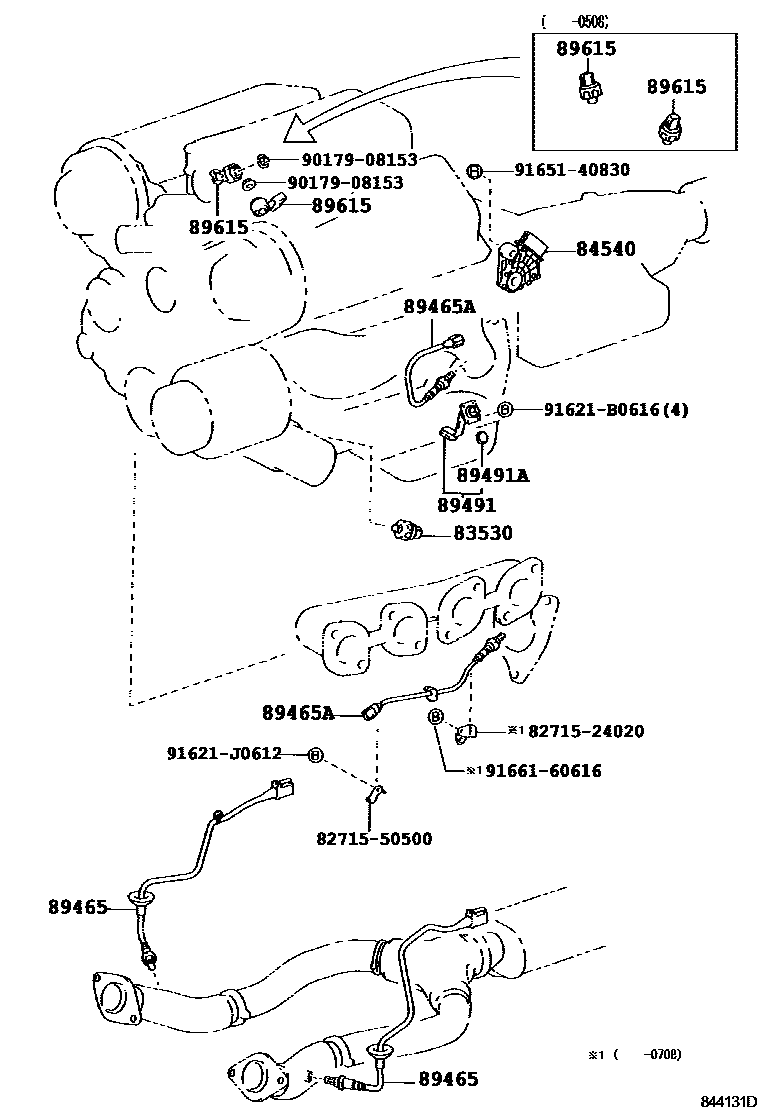

Toyota LEXUS SC430 — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1IGNITION & COMBINATION SWITCH0006 1DOOR,ROOF,FLOOR,SEAT & LUGGAG0007 1ELECTRIC METAL TOP

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUZZ40200101-200508

84540SWITCH ASSY, NEUTRAL START

main84540-50020iUZZ40200508

main84540-51010iUZZ40200101-200508

89465SENSOR, OXYGEN

main89465-24210×2iUZZ40200101-200508

main89465-24220×2iUZZ40200508

89465ASENSOR, OXYGEN NO.2

main89465-50120iUZZ40200101-200508

LH

main89465-50130iUZZ40200101-200508

RH

89491SENSOR, ENGINE OIL LEVEL

main89491-30050iUZZ40200508

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iUZZ40200101-200508

89615SENSOR, KNOCK CONTROL

main89615-20090×2iUZZ40200508

main89615-30080×2iUZZ40200101-200508

8271524020BRACKET,WIRING HARNESS CLAMP

main82715-24020

8271550500BRACKET,WIRING HARNESS CLAMP

main82715-50500

9017908153

main90179-08153

91621B0616

main91621-B0616

91621J0612

main91621-J0612

9165140830

main91651-40830

9166160616

main91661-60616

14 parts on this diagram · 7 diagrams in section
