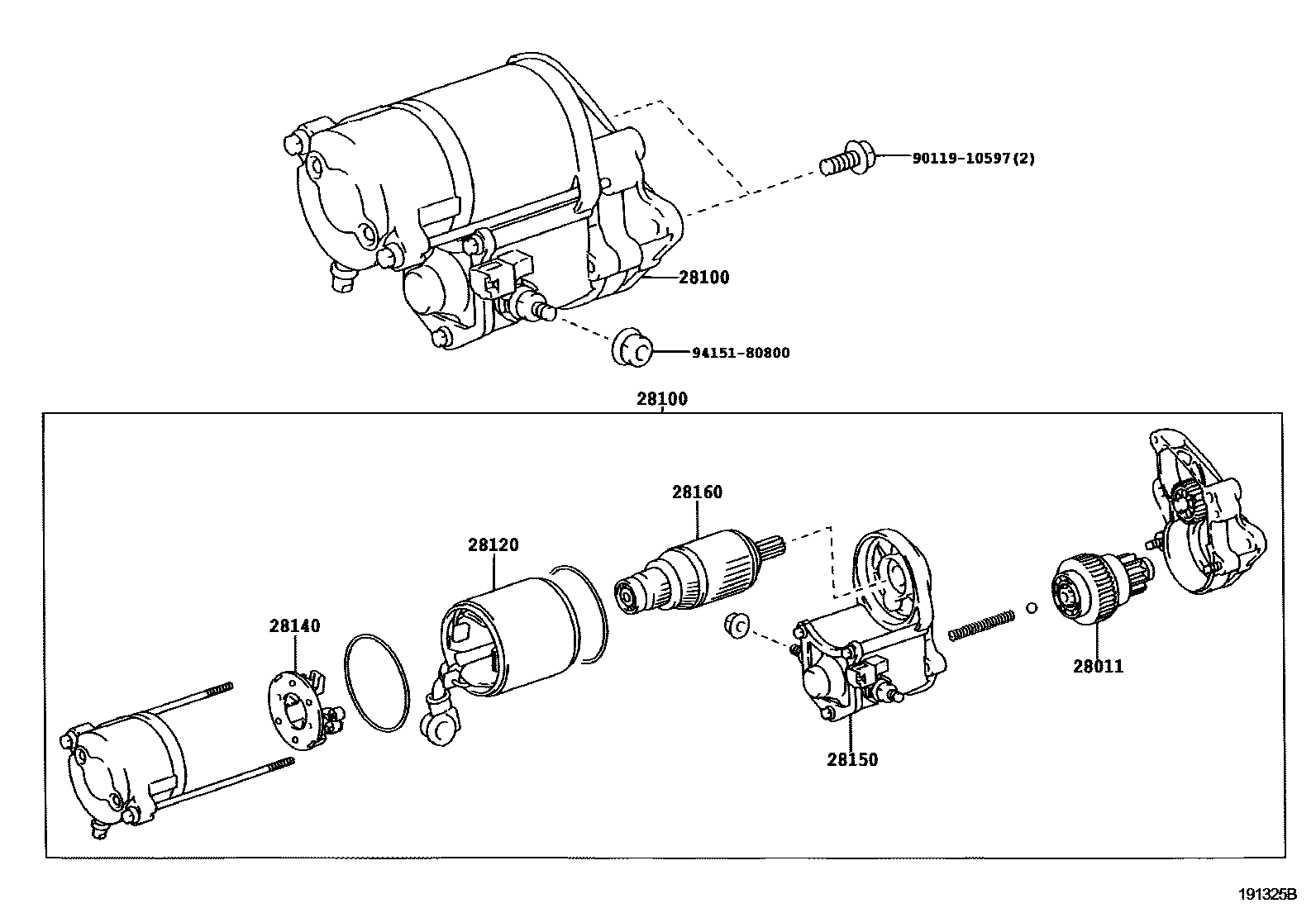

Toyota LEXUS SC430 — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-50060i3UZFE..UZZ40..5FC200101-200410

main28011-50100i3UZFE..UZZ40200410-200508

28100STARTER ASSY

main28100-50110i3UZFE..UZZ40200101-200508

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-54380i3UZFE..UZZ40200101-200508

28140HOLDER ASSY, STARTER BRUSH

main28140-54380i3UZFE..UZZ40200101-200508

28150SWITCH ASSY, MAGNET STARTER

main28150-50100i3UZFE..UZZ40200101-200410

main28150-50110i3UZFE..UZZ40200410-200508

28160ARMATURE ASSY, STARTER

main28160-75120i3UZFE..UZZ40200101-200508

9011910597

main90119-10597

9415180800

main94151-80800

8 parts on this diagram · 1 diagram in section
