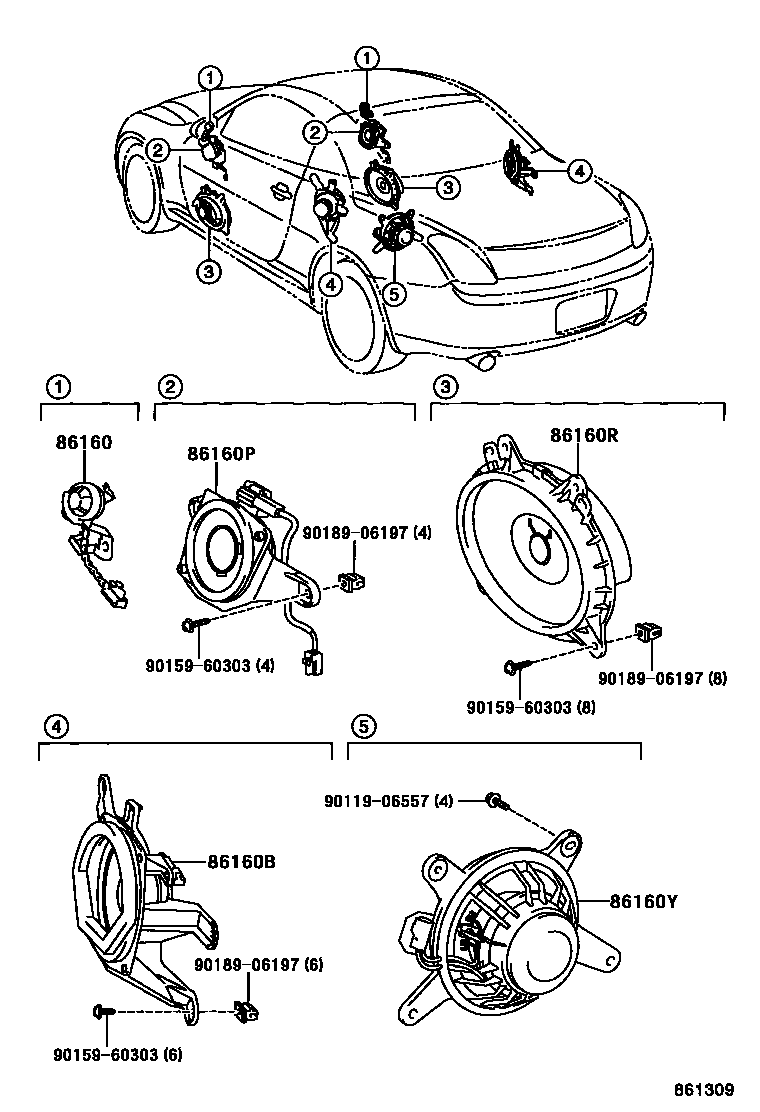

Toyota LEXUS SC430 — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0W380iUZZ40200101-200508

RH

main86160-0W390iUZZ40200101-200508

LH

main86160-24350iUZZ40..5FC200101-200104

TAIWAN SPEC,RH

main86160-24360iUZZ40..5FC200101-200104

TAIWAN SPEC,LH

86160BSPEAKER ASSY, REAR

main86160-0W430iUZZ40200508

RH

main86160-0W440iUZZ40200508

LH

main86160-24400iUZZ40..5FC200101-200104

TAIWAN SPEC,RH

main86160-24410iUZZ40..5FC200101-200104

TAIWAN SPEC,LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-0W400iUZZ40200508

RH

main86160-0W410iUZZ40200101-200508

LH

main86160-24370iUZZ40..5FC200101-200104

TAIWAN SPEC,RH

main86160-24380iUZZ40..5FC200101-200104

TAIWAN SPEC,LH

86160RSPEAKER ASSY, STEREO COMPONENT

main86160-0W420×2iUZZ40200508-200802

main86160-0W421×2iUZZ40200803

main86160-24390×2iUZZ40..5FC200101-200104

TAIWAN SPEC

86160YSPEAKER ASSY, REAR NO.2

main86160-0W450iUZZ40200101-200508

main86160-24420iUZZ40..5FC200101-200104

TAIWAN SPEC

9011906557

main90119-06557

9015960303

main90159-60303

9018906197

main90189-06197

8 parts on this diagram · 1 diagram in section
