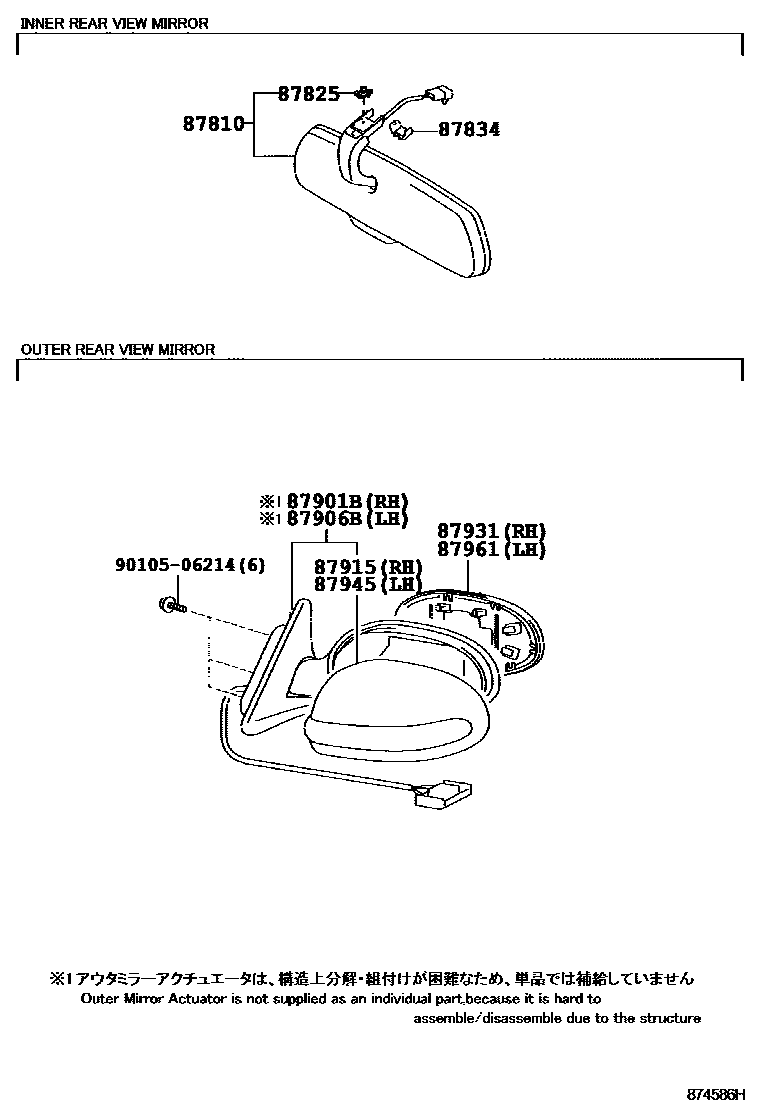

Toyota LEXUS SC430 — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-24150-A0i200101-200508

ECRU,TRIM0#,20,21

sub87810-24190

main87810-24150-C0i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM3#

sub87810-24190

main87810-24230-A0i200508

KOREA SPEC,ECRU,TRIM0#,50

main87810-24230-C0i200608-200611

KOREA SPEC;PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33

main87810-24230-E0i200508

KOREA SPEC,DK.BROWN,TRIM4#

main87810-24240-A0i200508

ECRU,TRIM0#,50

main87810-24240-C0i200608-200611

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33

main87810-24240-E0i200508

DK.BROWN,TRIM4#

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24020i200101-200508

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-24040-A0i200508

ECRU,TRIM0#,50

main87834-24040-C0i200608-200611

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33

main87834-24040-E0i200508

DK.BROWN,TRIM4#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-24070-A0i200508-200608

KOREA SPEC,WHITE PEARL CS.,065

main87901-24070-A1i200608-200808

KOREA SPEC,WHITE PEARL CS.,077

main87901-24070-B0i200101-200508

TAIWAN SPEC,SILVER ME.,1C0

main87901-24070-B1i200508-200808

KOREA SPEC,PREMIUM SILVER,1F2

main87901-24070-B2i200508-200808

KOREA SPEC,DK.GRAY MC.,1G0

main87901-24070-C0i200101-200508

TAIWAN SPEC & *104,BLACK,202

main87901-24070-C1i200608-200808

KOREA SPEC,BLACK,212

main87901-24070-D0i200101-200508

TAIWAN SPEC & *104,SUPER RED 5,3P0

main87901-24070-D1i200508-200808

KOREA SPEC,BLACKSH RED MC.,3P6

main87901-24070-D2i200508-200708

TAIWAN SPEC,RED MC.CS.,3R1

main87901-24070-E0i200101-200508

TAIWAN SPEC,BEIGE M.M.,4Q8

main87901-24070-E1i200508-200708

TAIWAN SPEC,PREMIUM BEIGE,4S7

main87901-24070-E2i200508-200808

KOREA SPEC,PREMIUM BROWN,4T2

main87901-24070-E3i200708-200808

KOREA SPEC,BEIGE ME.,4T1

main87901-24070-G0i200101-200508

TAIWAN SPEC,DARK GREEN MC.,6S6

main87901-24070-J0i200101-200508

TAIWAN SPEC,DK.BLUE M.M.,8P4

main87901-24070-J1i200608-200808

KOREA SPEC,DK.BLUE MC.CC.,8U0

main87901-24080-A0i200508-200608

WHITE PEARL CS.,065

main87901-24080-A1i200608-200808

WHITE PEARL CS.,077

main87901-24080-B0i200101-200508

SILVER ME.,1C0

main87901-24080-B1i200508-200808

COSMO SILVER,1F2

main87901-24080-B2i200508-200808

PREMIUM SILVER,1G0

main87901-24080-B3i200111-200112

NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2

main87901-24080-C0i200508-200608

BLACK,202

main87901-24080-C1i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211

main87901-24080-C2i200608-200808

BLACK,212

main87901-24080-D0i200101-200508

*104,SUPER RED 5,3P0

main87901-24080-D1i200101-200508

BLACKSH RED MC.,3P6

main87901-24080-D2i200508-200808

RED MC.CS.,3R1

main87901-24080-E0i200101-200508

BEIGE M.M.,4Q8

main87901-24080-E1i200508-200708

PREMIUM BEIGE,4S7

main87901-24080-E2i200508-200808

PREMIUM BROWN,4T2

main87901-24080-E3i200708-200808

BEIGE ME.,4T1

main87901-24080-G0i200101-200508

DARK GREEN MC.,6S6

main87901-24080-J0i200101-200508

DK.BLUE M.M.,8P4

main87901-24080-J1i200308-200311

PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME,8Q6

main87901-24080-J2i200608-200808

DK.BLUE MC.CC.,8U0

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-24090-A0i200508-200608

KOREA SPEC,WHITE PEARL CS.,065

main87906-24090-A1i200508-200708

TAIWAN SPEC,WHITE PEARL CS.,065

main87906-24090-B0i200101-200508

TAIWAN SPEC,SILVER ME.,1C0

main87906-24090-B1i200508-200708

TAIWAN SPEC,PREMIUM SILVER,1F2

main87906-24090-B2i200508-200808

KOREA SPEC,DK.GRAY MC.,1G0

main87906-24090-C0i200508-200708

TAIWAN SPEC,BLACK,202

main87906-24090-C1i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO) & W(RETRACTABLE ELECTRIC REMOTE CONTROL),BLACK MC.,211

main87906-24090-D0i200101-200508

TAIWAN SPEC & *104,SUPER RED 5,3P0

main87906-24090-D1i200508-200708

TAIWAN SPEC,BLACKSH RED MC.,3P6

main87906-24090-D2i200508-200708

TAIWAN SPEC,RED MC.CS.,3R1

main87906-24090-E0i200101-200508

TAIWAN SPEC,BEIGE M.M.,4Q8

main87906-24090-E1i200508-200708

TAIWAN SPEC,PREMIUM BEIGE,4S7

main87906-24090-E2i200508-200808

KOREA SPEC,PREMIUM BROWN,4T2

main87906-24090-E3i200708-200808

KOREA SPEC,BEIGE ME.,4T1

main87906-24090-G0i200101-200508

TAIWAN SPEC,DARK GREEN MC.,6S6

main87906-24090-J0i200101-200508

TAIWAN SPEC,DK.BLUE M.M.,8P4

main87906-24090-J1i200508-200708

TAIWAN SPEC,DK.BLUE M.M.,8P4

main87906-24100-A0i200508-200608

WHITE PEARL CS.,065

main87906-24100-A1i200608-200808

WHITE PEARL CS.,077

main87906-24100-B0i200101-200508

SILVER ME.,1C0

main87906-24100-B1i200508-200808

COSMO SILVER,1F2

main87906-24100-B2i200508-200808

PREMIUM SILVER,1G0

main87906-24100-B3i200111-200112

NEIMAN MARCUS X'MAS EDITION(USA),GRAY ME.,1D2

main87906-24100-C0i200508-200608

BLACK,202

main87906-24100-C1i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211

main87906-24100-C2i200608-200808

BLACK,212

main87906-24100-D0i200101-200508

*104,SUPER RED 5,3P0

main87906-24100-D1i200508-200808

BLACKSH RED MC.,3P6

main87906-24100-D2i200508-200808

RED MC.CS.,3R1

main87906-24100-E0i200101-200508

BEIGE M.M.,4Q8

main87906-24100-E1i200508-200708

PREMIUM BEIGE,4S7

main87906-24100-E2i200508-200808

PREMIUM BROWN,4T2

main87906-24100-E3i200708-200808

BEIGE ME.,4T1

main87906-24100-G0i200101-200508

DARK GREEN MC.,6S6

main87906-24100-J0i200508-200608

DK.BLUE M.M.,8P4

main87906-24100-J1i200308-200311

PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME,8Q6

main87906-24100-J2i200608-200808

DK.BLUE MC.CC.,8U0

87915COVER, OUTER MIRROR, RH

main87915-24010-A0i200508-200608

WHITE PEARL CS.,065

main87915-24010-A1i200608-200808

WHITE PEARL CS.,077

main87915-24010-B0i200101-200508

SILVER ME.,1C0

main87915-24010-B2i200508-200808

PREMIUM SILVER,1F2

main87915-24010-B3i200508-200808

DK.GRAY MC.,1G0

main87915-24010-C0i200101-200508

BLACK,202

main87915-24010-C1i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211

main87915-24010-C2i200608-200808

BLACK,212

main87915-24010-D0i200101-200508

*104,SUPER RED 5,3P0

main87915-24010-D1i200101-200508

BLACKISH RED MC.,3P6

main87915-24010-D2i200205-200508

SUPER RED 5,3P0

main87915-24010-D3i200508-200808

RED MC.CS.,3R1

main87915-24010-E0i200101-200508

BEIGE M.M.,4Q8

main87915-24010-E1i200508-200708

PREMIUM BEIGE,4S7

main87915-24010-E2i200508-200808

PREMIUM BROWN,4T2

main87915-24010-E3i200708-200808

BEIGE ME.,4T1

main87915-24010-G0i200101-200508

DARK GREEN MC.,6S6

main87915-24010-J0i200508-200608

DK.BLUE M.M.,8P4

main87915-24010-J1i200308-200311

PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME,8Q6

main87915-24010-J3i200608-200808

DK.BLUE MC. CC.,8U0

87931OUTER MIRROR, RH

main87931-24170i200101-200508

main87931-24220i200101-200508

TAIWAN SPEC

main87931-30A70i200808-201007

87945COVER, OUTER MIRROR, LH

main87945-24010-A0i200508-200608

WHITE PEARL CS.,065

main87945-24010-A1i200608-200808

WHITE PEARL CS.,077

main87945-24010-B0i200101-200508

SILVER ME.,1C0

main87945-24010-B2i200508-200808

PREMIUM SILVER,1F2

main87945-24010-B3i200508-200808

DK.GRAY MC.,1G0

main87945-24010-C0i200508-200608

BLACK,202

main87945-24010-C1i200408-200409

PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK MC.,211

main87945-24010-C2i200608-200808

BLACK,212

main87945-24010-D0i200101-200508

*104,SUPER RED 5,3P0

main87945-24010-D1i200508-200808

BLACKISH RED MC.,3P6

main87945-24010-D2i200508-200808

RED MC.CS.,3R1

main87945-24010-E0i200101-200508

BEIGE M.M.,4Q8

main87945-24010-E1i200508-200708

PREMIUM BEIGE,4S7

main87945-24010-E2i200508-200808

PREMIUM BROWN,4T2

main87945-24010-E3i200708-200808

BEIGE ME.,4T1

main87945-24010-G0i200101-200508

DARK GREEN MC.,6S6

main87945-24010-J0i200508-200608

DK.BLUE M.M.,8P4

main87945-24010-J1i200308-200311

PEBBLE BEACH EDITION(USA/HAWAII/P.RICO),LT.BLUE ME,8Q6

main87945-24010-J3i200608-200808

DK.BLUE MC. CC.,8U0

87961MIRROR OUTER, LH

main87961-24200i200101-200508

main87961-24210i200101-200508

TAIWAN SPEC

main87961-30B20i200808-201007

9010506214

main90105-06214

10 parts on this diagram · 2 diagrams in section
