Toyota LEXUS SC430 — METER

0001 1 0002 1

5501

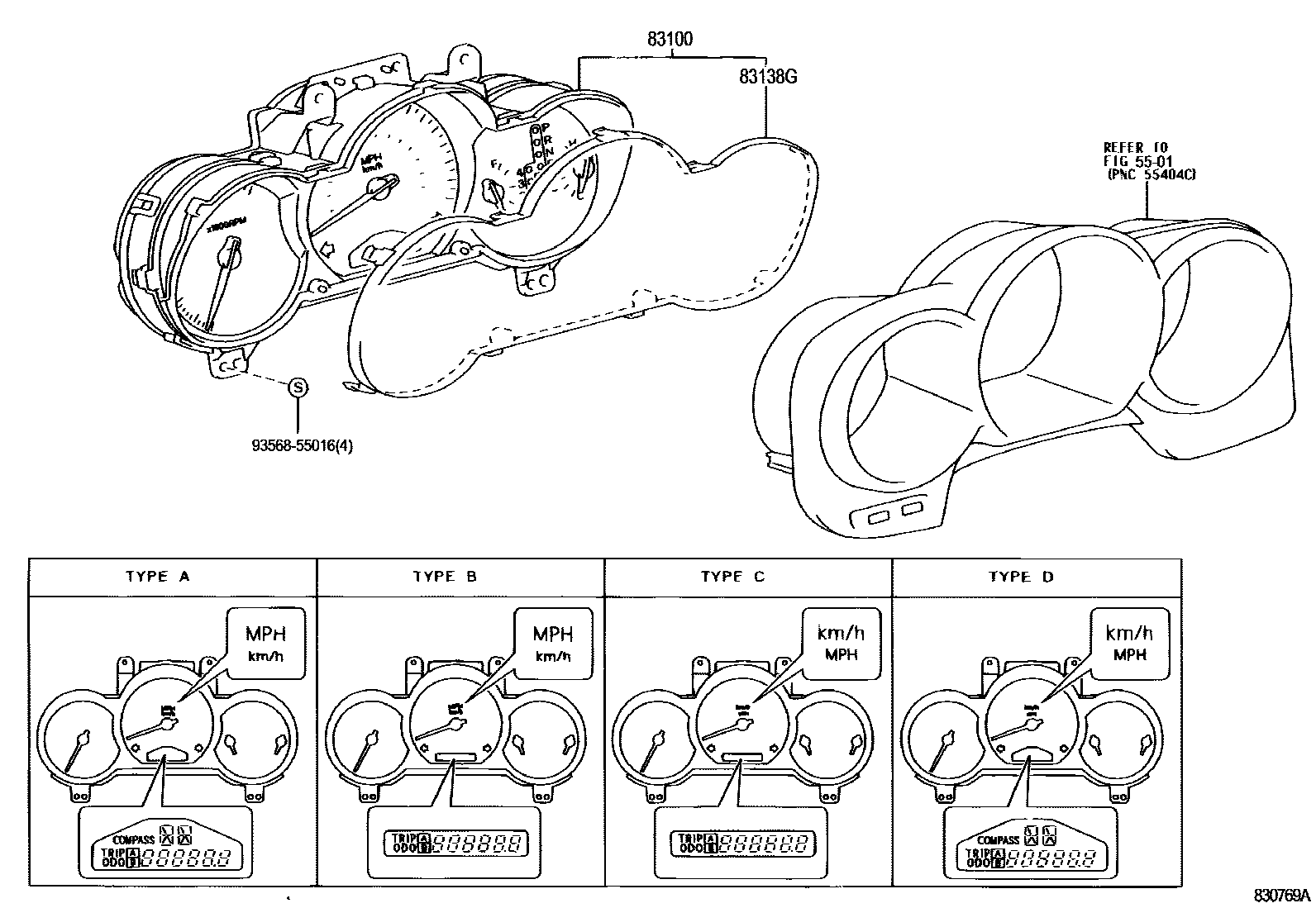

83100METER ASSY, COMBINATION

main83800-24120iUZZ40200101-200508

TYPE A:REFER TO ILLUSTRATION

main83800-24130iUZZ40200101-200508

TYPE B:REFER TO ILLUSTRATION

main83800-24160iUZZ40200101-200508

TYPE C:REFER TO ILLUSTRATION

main83800-24210iUZZ40200201-200508

TYPE D:REFER TO ILLUSTRATION

main83800-24230iUZZ40200508-200608

main83800-24240iUZZ40200508-200608

CANADA OR TAIWAN SPEC

main83800-24250iUZZ40200508-200608

KOREA SPEC

main83800-24330iUZZ40200608-200708

main83800-24340iUZZ40200608-200708

CANADA OR TAIWAN SPEC

main83800-24350iUZZ40200608-200708

KOREA SPEC

main83800-24430iUZZ40200708-201007

main83800-24440iUZZ40200708-201007

CANADA SPEC

main83800-24450iUZZ40200708-201007

KOREA SPEC

83138GGLASS, COMBINATION METER

main83852-24120iUZZ40..5FC200101-200104

main83852-24121iUZZ40200104-200508

main83852-24230iUZZ40200508-201007

9356855016

main93568-55016

4 parts on this diagram · 2 diagrams in section
